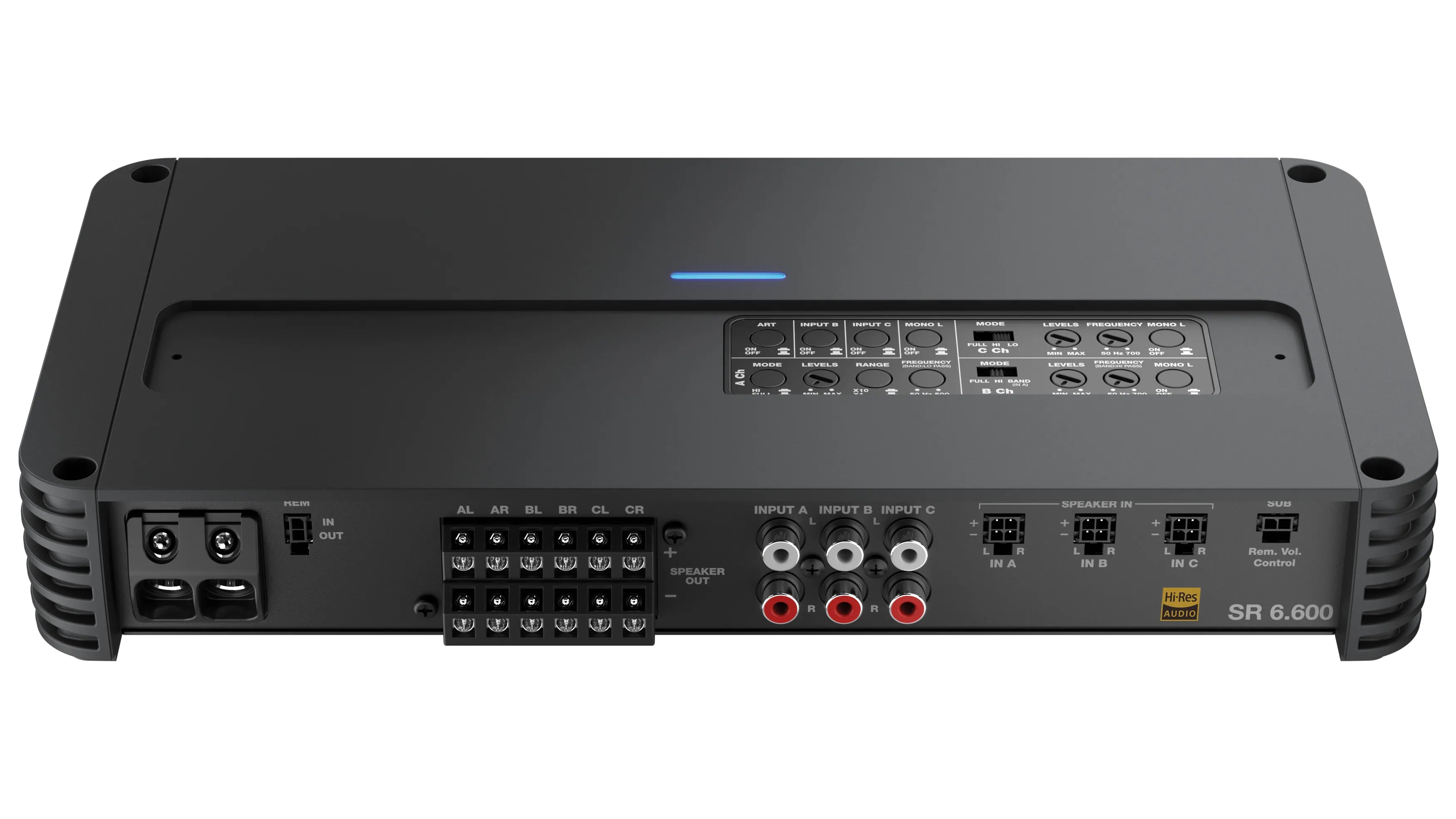

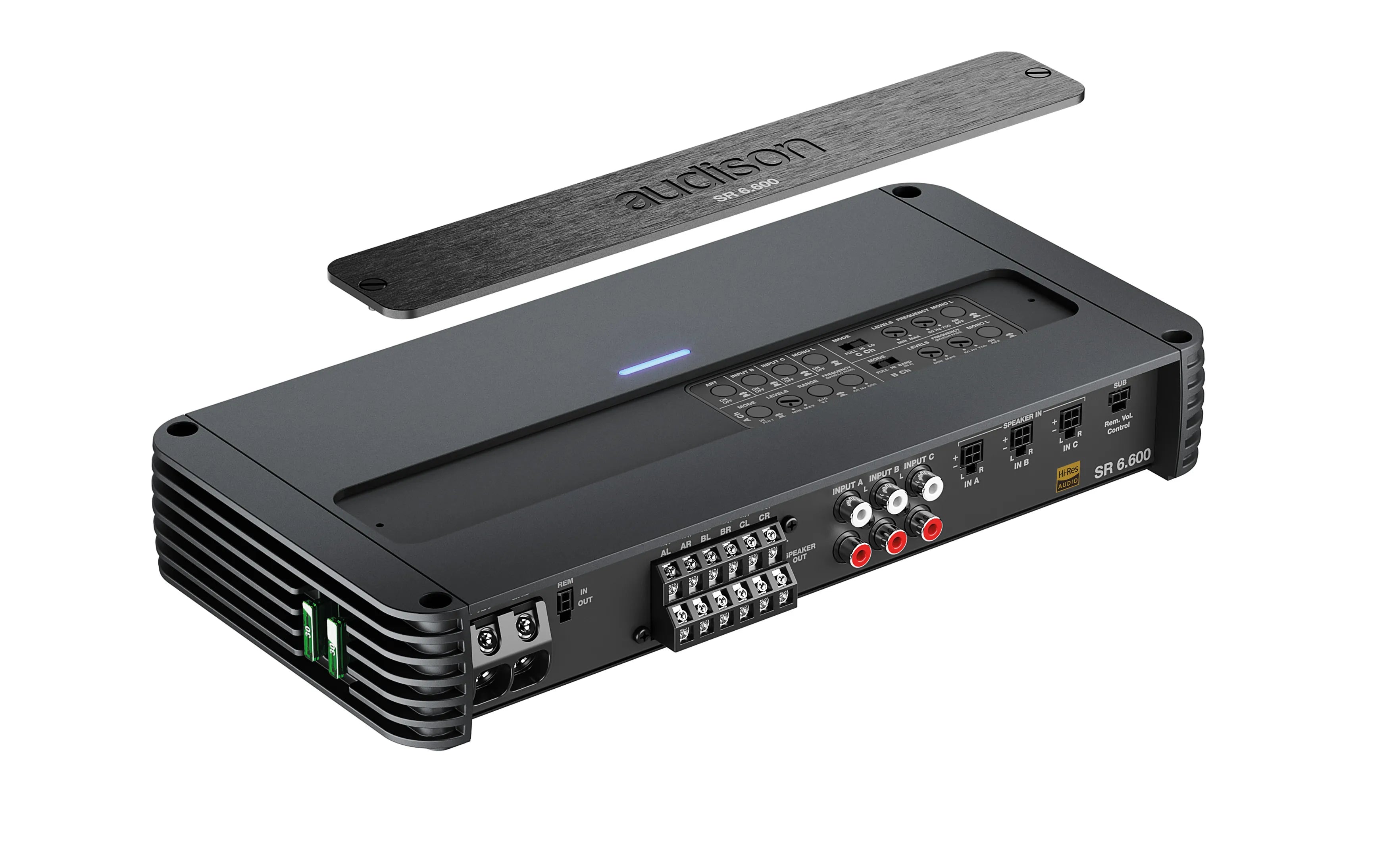

Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier
Audison SR6.600 6ch Amplifier

Audison SR6.600 6ch Amplifier

$990.00
$0.00
$990.00
Brand: Audison
SKU: SR6600
Availability: In Stock
Class D 6 Channel Amplifier
4x 140 + 2x 185 watts RMS @ 2Ω
4x 85 + 2x 110 watts RMS @ 4Ω
Hi-Res Audio Certified

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Audison SR6.600 6ch Amplifier 140 W x 4 + 185 x 2 @2ohm

At Audison, our commitment to delivering unparalleled sound quality and innovation in-car audio systems remains unwavering. We are thrilled to present our latest masterpiece – the Audison SR 6.600 6-Channel Amplifier with Hi-Res Audio Certification. This amplifier is engineered to redefine your in-car listening experience, setting a new standard in audio excellence.

Features

  • High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5/6)
  • Staggered power optimized for a 3-way active front with higher power for woofers, or 600W of bridged power for a sub 5 ch output operation mode to create a five-channel system, with 2Ω subwoofer
  • Flexible crossover filter networks deliver Active 3-way, Front/Rear/Sub, or six channels of high-passed power
  • ADT (Audison D-Class) Technology 2Ω stable output providing Hi-Res certified audio performance with superior efficiency in a compact size.
  • Extruded aluminum compact design with a fanless convection cooling system
  • Built-in USS (Universal Speakers Simulator)
  • Balanced high-noise rejection inputs for Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units).
  • ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled, with Speaker-In inputs)
  • Accepts up to 40-volt input signal (Speaker-In)
  • Bass Boost(50 Hz) adjustable up to 12 dB, to increase the subwoofer punch
  • Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 5000 Hz) filters, providing the ability to build a 3-way system, a front 2-way + rear system, or a front 2-way + one powerful subwoofer (2Ω)
  • Optional VCR-S2/ARC 01 Remote Volume Control provides the ability to adjust the OUT 5/6 volume level from the dashboard

Specifications

Amplifier Tech Data


Channels

6

Class

D-Class

Efficiency

>87%

Hi Level Input

Yes

Low Level Input

Yes

Digital Input

No

Power supply voltage / fuse

11 ÷ 17 VDC

Operating power supply voltage

11 ÷ 17 VDC / 2 x 30A

Idling current

2.2 A

Idling current when off

0.04 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power

54 A

Remote OUT

4 ÷ 15 VDC (150 mA)

Remote IN

4 ÷ 15 VDC (1 mA)

ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)

1.5 ÷ 7 VDC

Amplifier Stage


Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power

0.05 %

Bandwidth A

10Hz ÷ 42 kHz

S/N ratio A

102 dBA

Damping factor A

A Ch/B Ch 100

C Ch 400

Input sensitivity Pre-In

0.32 ÷ 8 VRMS

Pre In Impedance

>10 kOhm

Input sensitivity Speaker-In

1.6 ÷ 40 VRMS

Input impedance Speaker-In

3Ohm ÷ 100kOhm (it depends by the Polyfuse specifications)

Total Power RMS

1120 W

Minimum load impedance

Ch 1-4: 2Ω

Ch 5-6: 1Ω

Ch 5-6: 1Ω

1+2/3+4 Bridged: 4Ω

5+6 Bridged: 2Ω

Output Power (RMS) @14.4 VDC, 1% THD

6Ch mode

@4Ω: 85 x 4 + 110 x 2

@2Ω: 140 x 4 + 185 x 2

Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2

5Ch mode

@4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged)

@2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged)

4Ch mode

@4Ω: 280 x 2 (bridged) + 110 x 2

@2Ω: 130 x 2 + 260 x 1 + 600 x 1

3Ch mode

@4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged)

280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω)

Adjustable Crossover

Yes

CEA Specifications


Output power @ 4Ω, 1% THD+N, 14.4 V

75 W x 4 Ch + 85 W x 2 Ch

SN ratio (ref. 1W output)

A Ch, B Ch: 84 dBA

C Ch: 84 dBA

Inputs


Input Type

Pre-In / Speaker-In

Filter Pass A

Full

Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct.

Filter Pass B

Full

Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct

Band-pass: 50 ÷ 700 Hz (Hi) / 50 ÷ 5 kHz (Lo) @ 12 dB/Oct

Filter Pass C

Full

Hi-pass: 50 ÷ 700 Hz @ 12 dB/Oct

Lo-pass: 50 ÷ 700 Hz @ 12 dB/Oct

Inputs/Outputs Sub CH

-

Inputs/Outputs Phase

No

Inputs/Outputs Bass Boost

No

Inputs/Outputs Subsonic

No

Remote Sub Volume

(-20 ÷ 6) dB

Other


Weight

2.52 kg



For more information, please visit the manufacturer's website.
