Description
xMTX TL-4.5L ThunderLink 4 Channel Line Level Converter
The MTX ThunderLink TL-4.5L is a 4-Channel In / 5-Channel Out Line Output Converter designed to bridge modern factory audio systems with aftermarket amplifiers. With high-voltage speaker-level input handling, intelligent load options, and multiple turn-on modes, it delivers a strong, clean preamp signal while keeping factory systems happy and fully functional.
Features

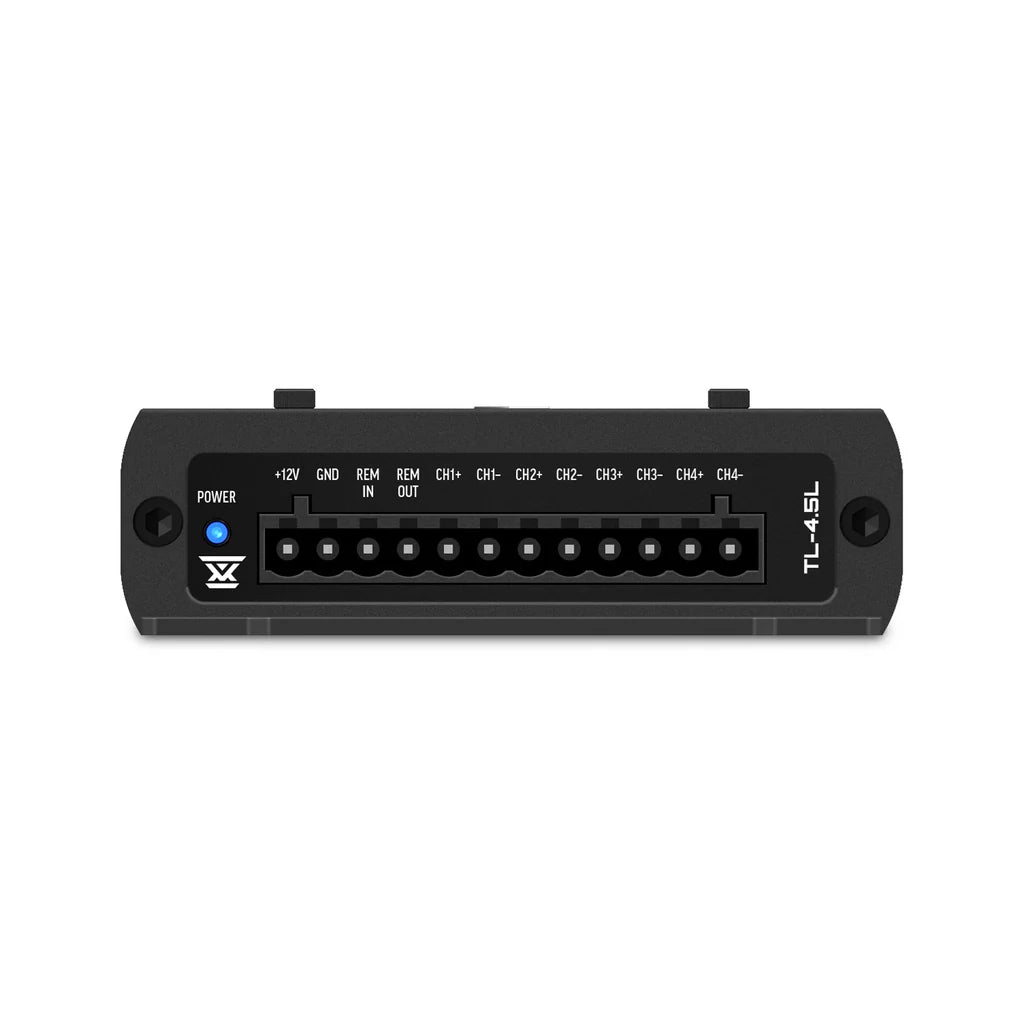

- High Level Input Up To 40V
- Multiple Turn-on Options (DC / Rem / Audio)
- Selectable Load Resistance
- Selectable Ground Isolation
- Remote Level Control

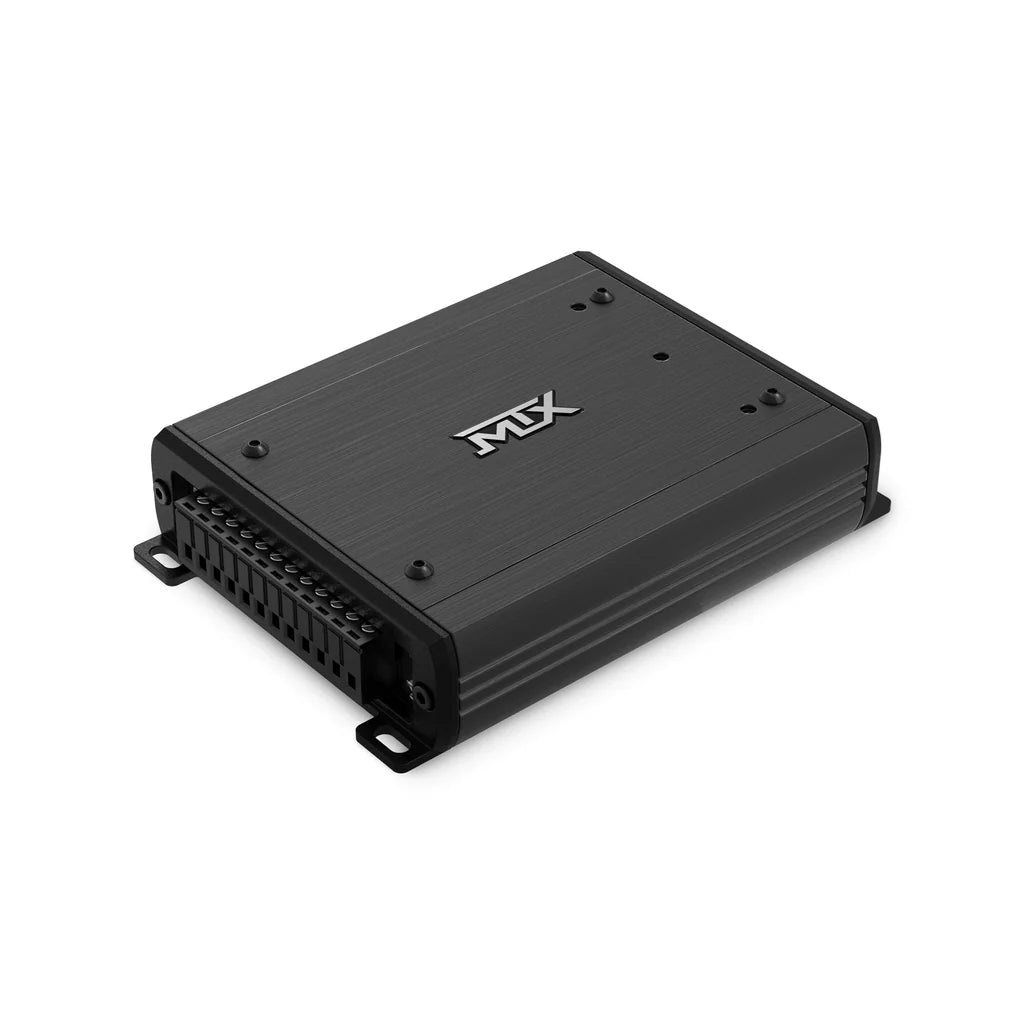

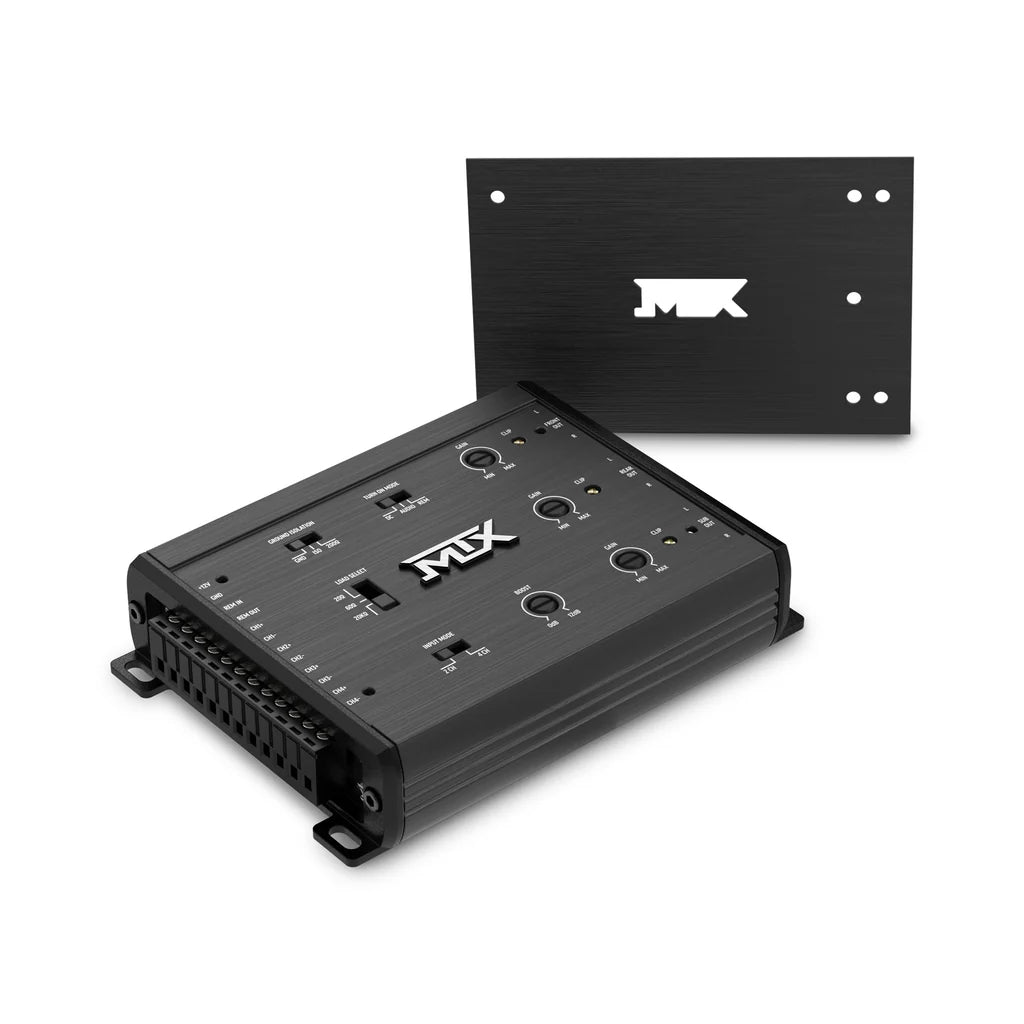

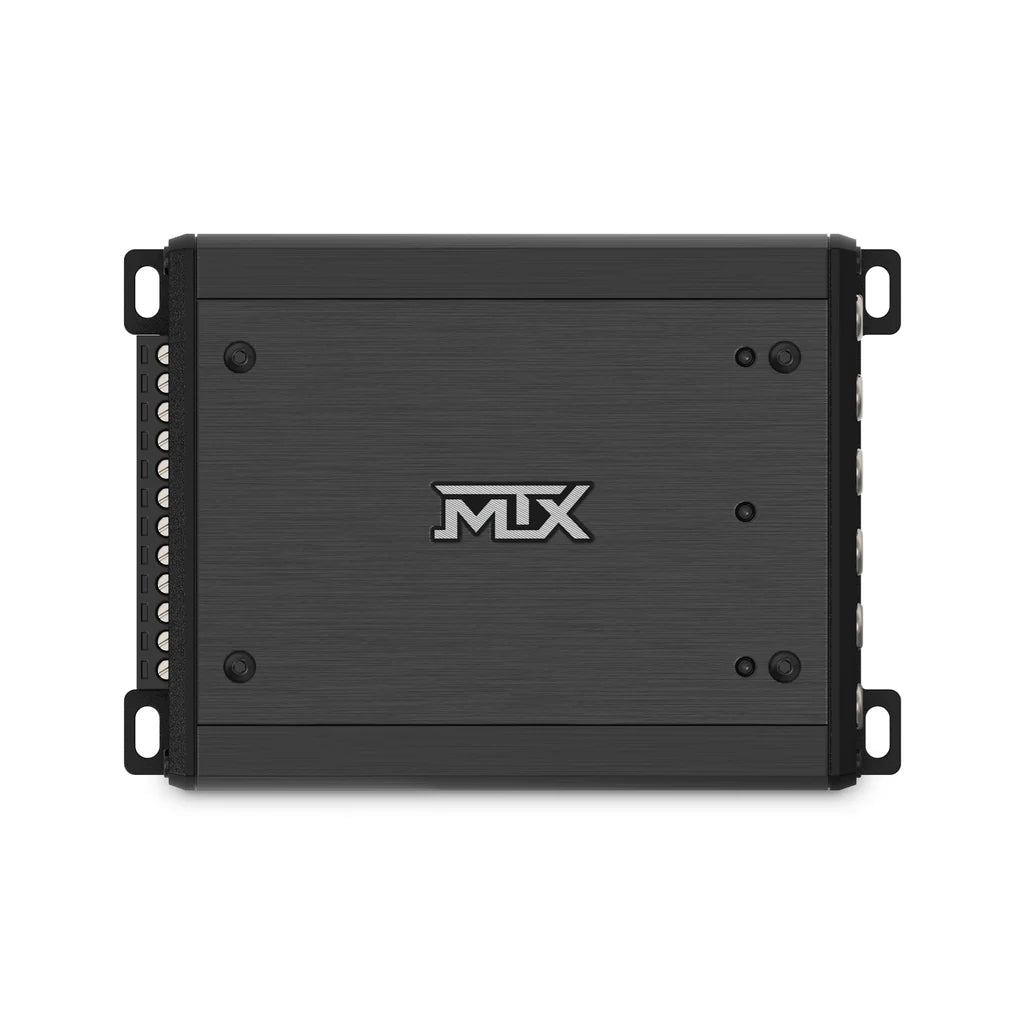

COMPACT, INSTALL-FRIENDLY DESIGN
Designed to fit where space is limited, the TL-4.5L features a compact chassis that makes mounting easy under seats, behind panels, or near factory amplifiers. Its small footprint gives installers more flexibility without sacrificing performance or control.
HIGH-VOLTAGE FACTORY SIGNAL HANDLING
Designed to accept various OEM speaker level outputs, The TL-4.5L can handle input signal up to 40V. Whether you have a base model or premium audio system, it will accept most signals to deliver a strong, distortion-free Preamp output to your aftermarket amplifiers.
SELECTABLE LOAD RESISTANCE
Selectable input impedance settings allow the TL-4.5L to properly interface with a wide range of factory radios and amplifiers. This helps ensure factory systems continue to operate normally when speakers are removed, preventing muting or shutdown issues.

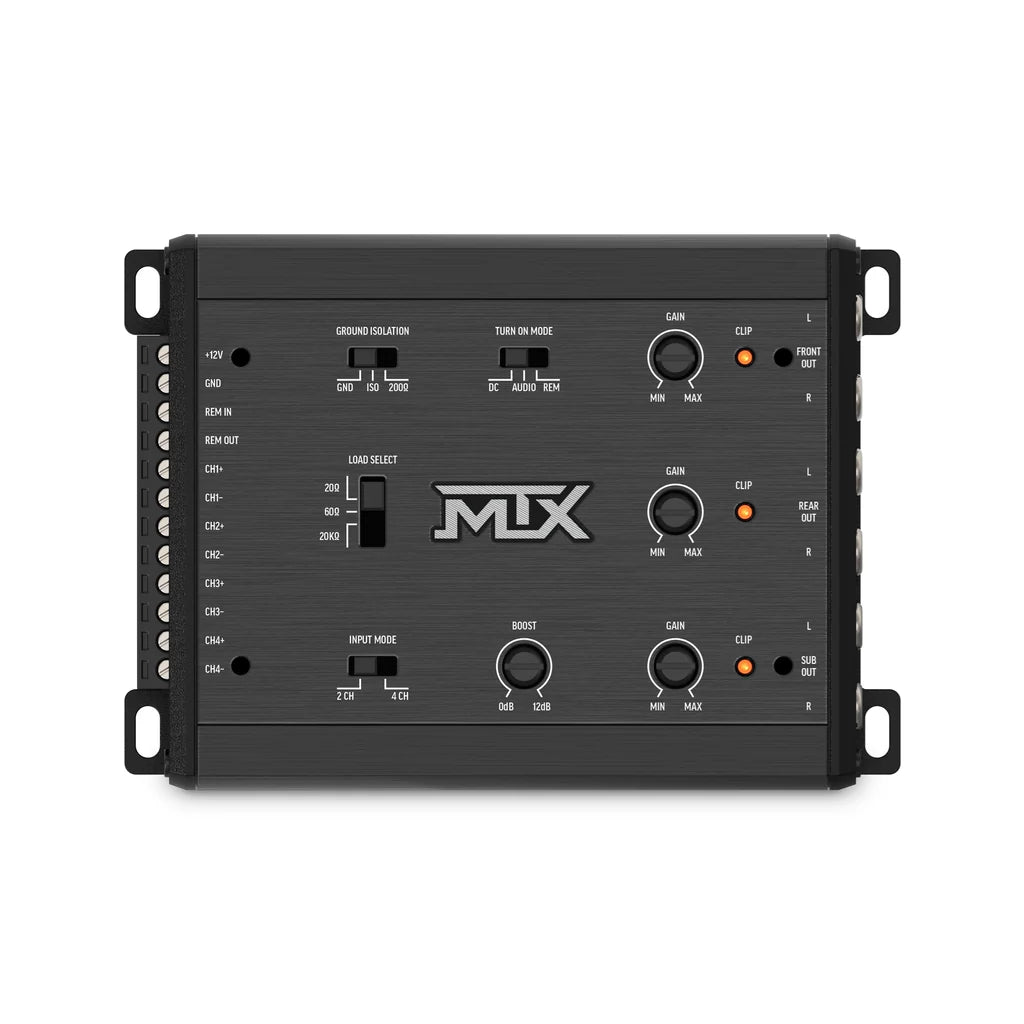

FLEXIBLE TURN-ON AND OUTPUT CONTROL
Multiple remote output and turn-on modes, including DC offset sensing, audio signal detection, and +12V remote turn-on, ensure reliable operation across different factory system designs. Individual gain controls, clip indicators, a dedicated bass channel output, and a remote level control provide precise system tuning.
Specifications
|
Type |
4-CH In/5-CH Out Line Output Converter |
|
Maximum Input Level |
40Vrms/400W (20kΩ) |
|
Input impedance |
Selectable (20Ω, 60Ω 20kΩ) |
|

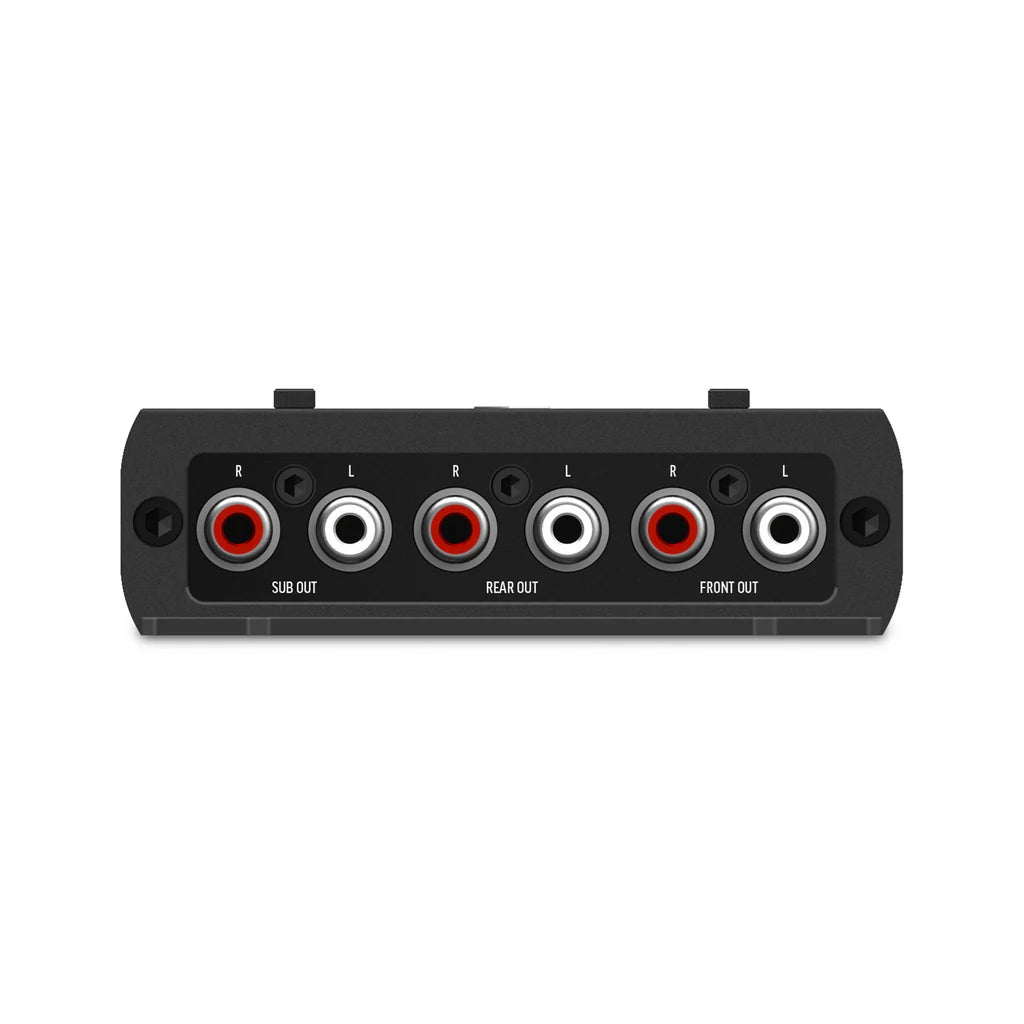

Preamp Outputs |
6 (4 Main Channels and 2 Sub Channels) |
|
Maximum Output Level |
8.5Vrms |
|
Output impedance |
60Ω |
|
THD |
< 0.2% |
|
Signal to Noise Ratio |
> 100dB |
|
Frequency Response |
20Hz - 20kHz |
|
Recommended Fuse Rating |
2A |
|

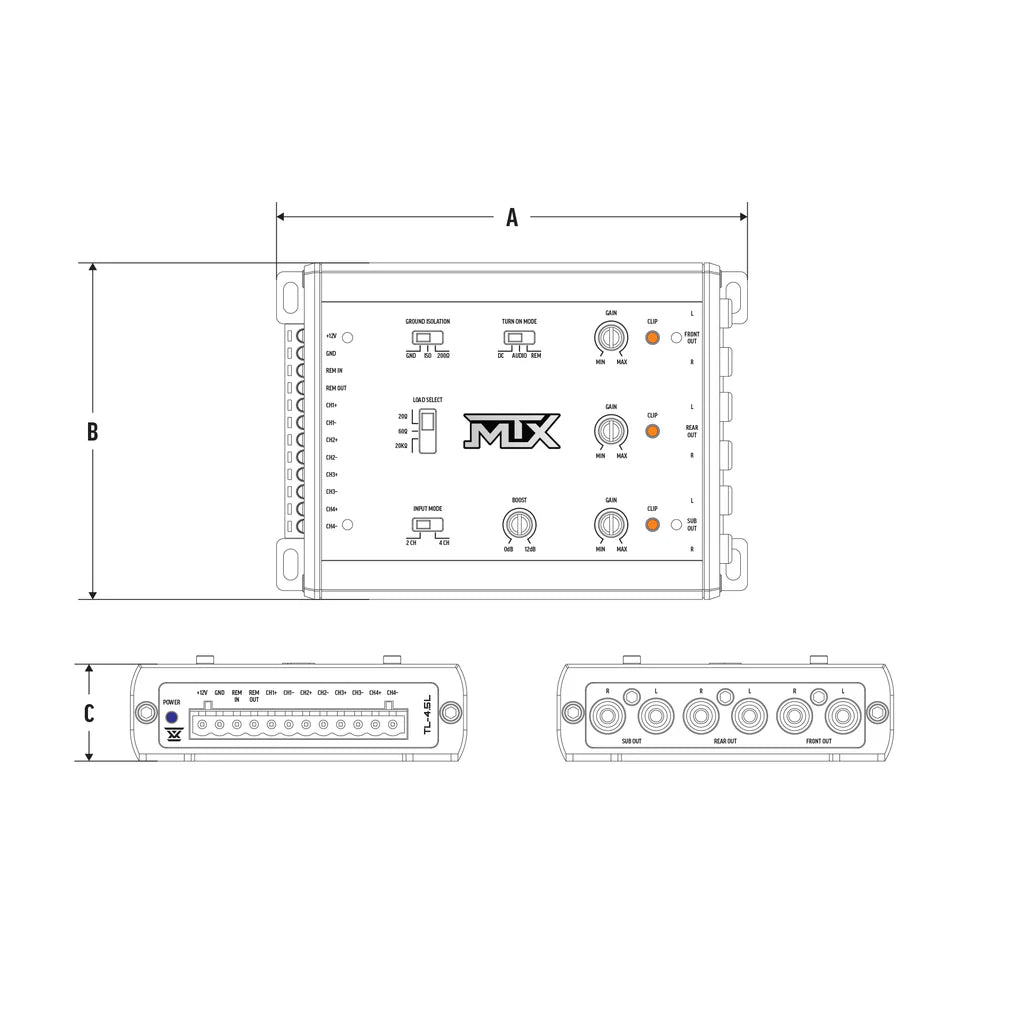

Product Dimensions (HxWxD) |
1-1/8" x 5-3/8" x 3-7/8" (28.00mm x 136.00mm x 97.20mm) |
For more information, please visit the manufacturer's website.
