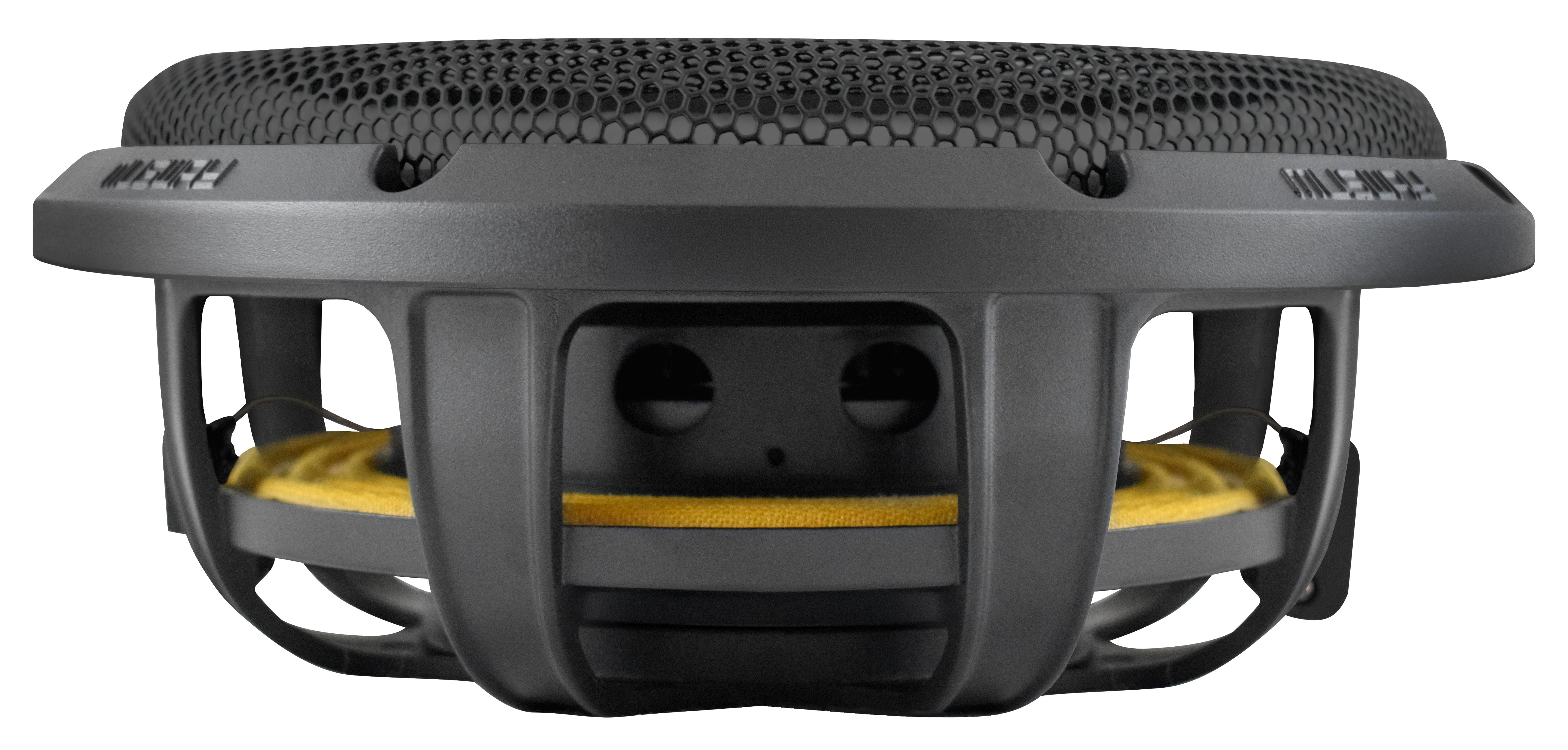

There are flat subwoofers. And then there's the MWF104SQ. With this exceptional subwoofer, MUSWAY redefines what's possible in the realm of ultra-flat, high-performance subwoofers. State-of-the-art design, uncompromising material selection, and one clear goal: maximum bass performance with minimal space requirements. With a mounting depth of just 7.4 cm, the MWF104SQ opens up entirely new possibilities in modern vehicles where every centimeter counts. Whether in enclosures, spare tire wells, or discreetly integrated into side panels, the MWF104SQ enables virtually invisible installations even in the most challenging spaces.
Despite its extremely flat design, the MWF104SQ offers an impressive Xmax of ± 20 mm. This is an exceptional value in this segment – and clearly demonstrates that no compromises have been made. The subwoofer is consistently designed for dynamic, high-output, and precise bass reproduction. The MWF104SQ is a pure chassis subwoofer designed for installation in a separate enclosure. It truly shines in small, sealed enclosures, where it impresses with high impulse response, clean control, and excellent precision – slim in design, big on sound.

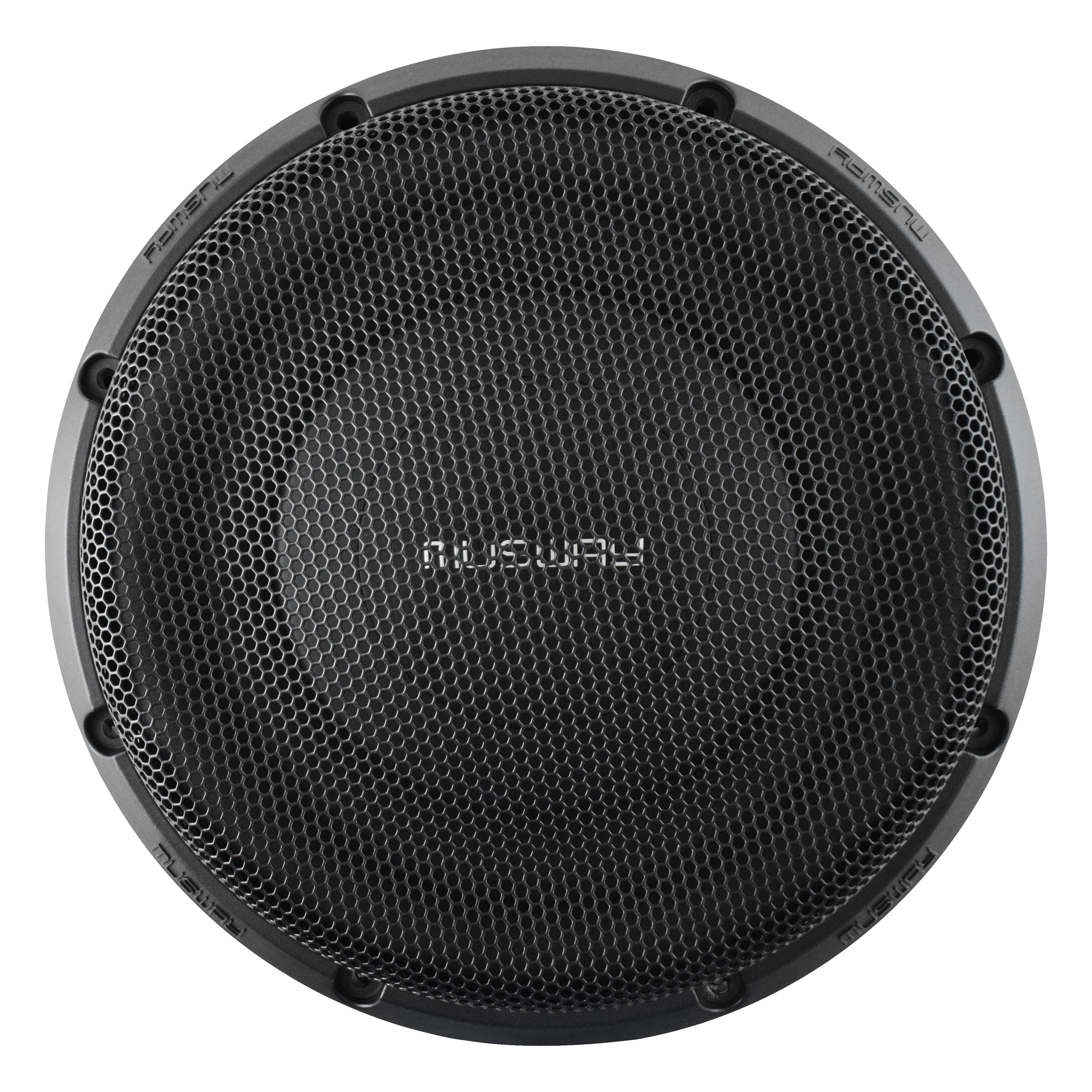

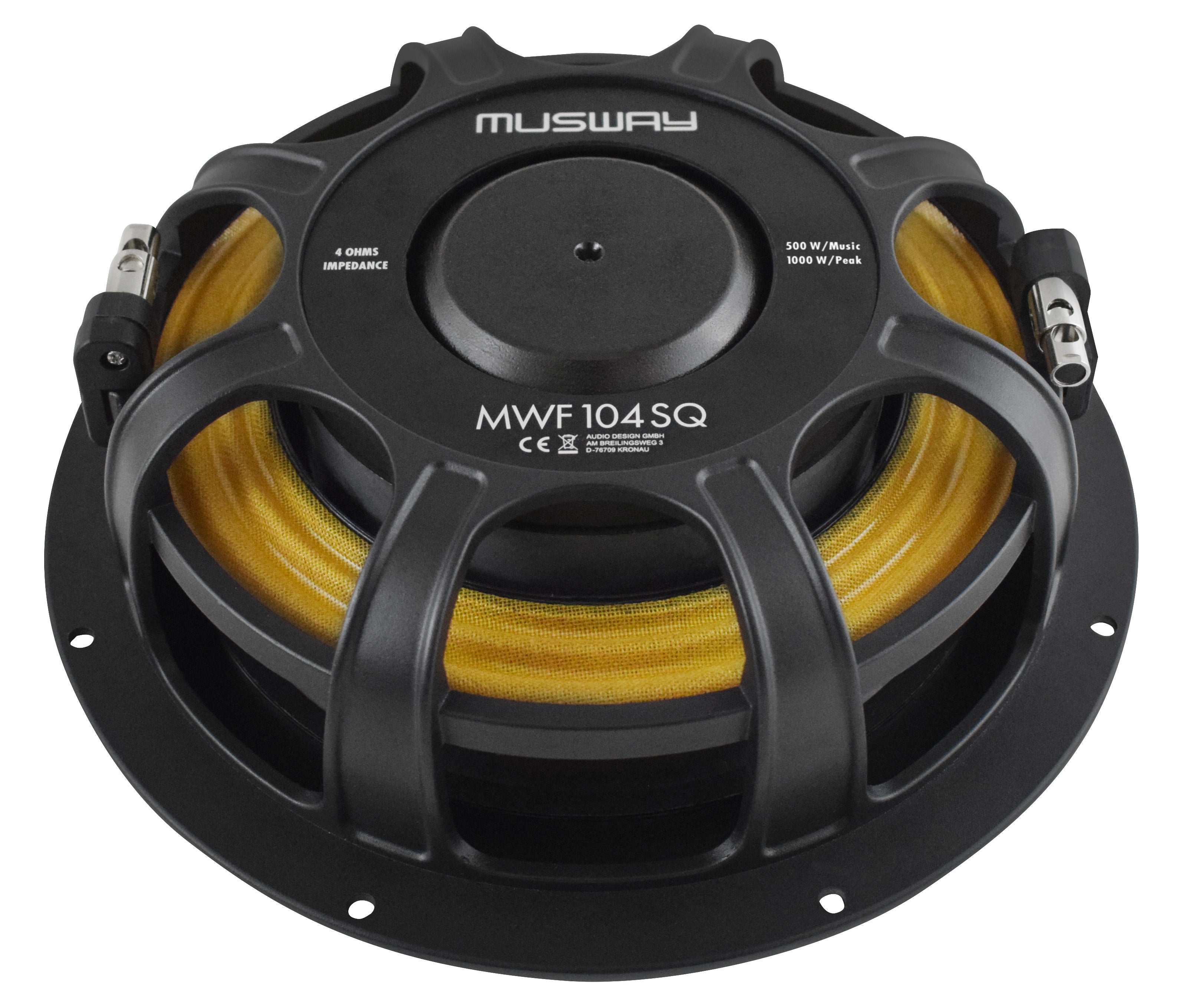

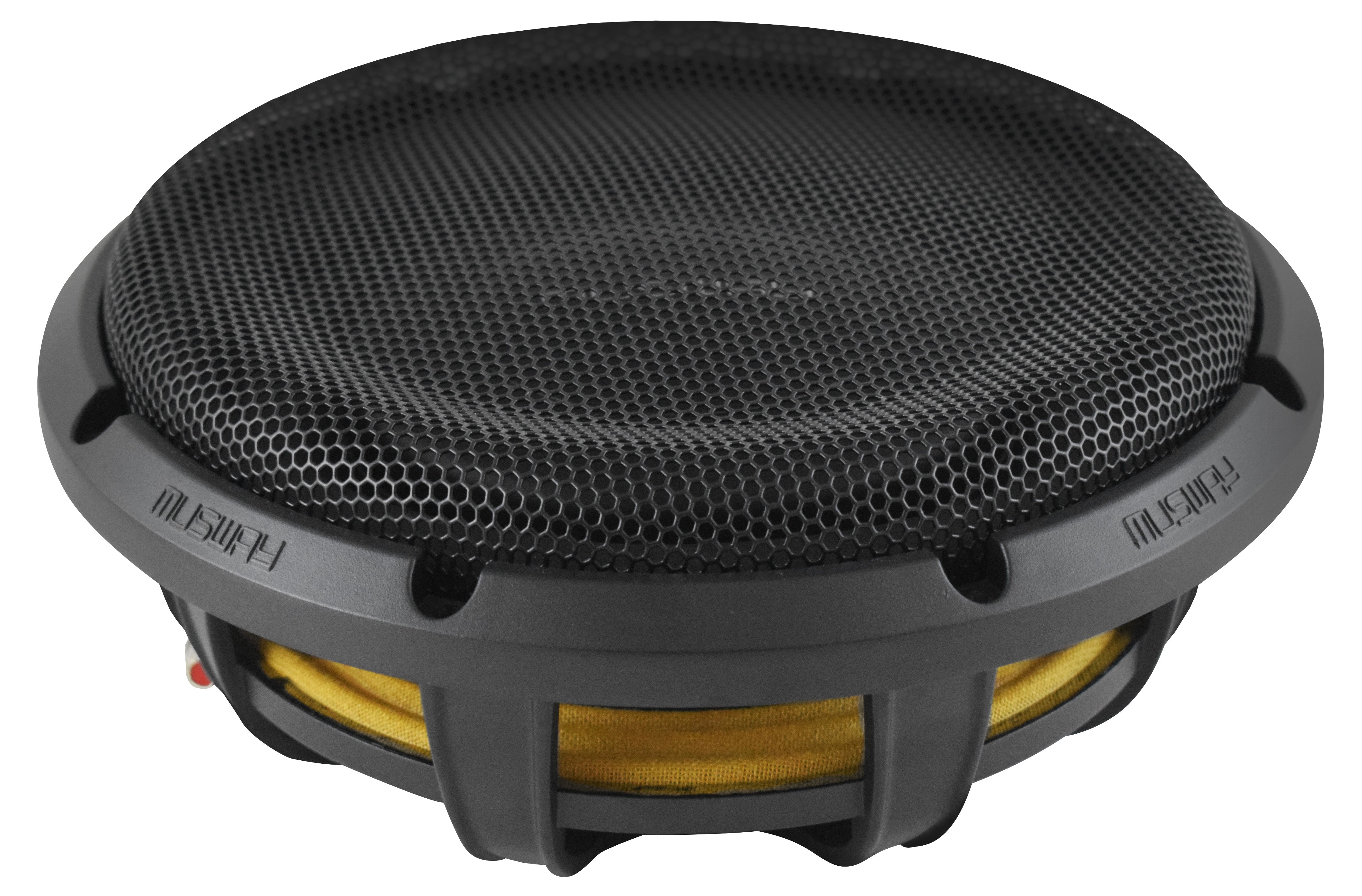

From the very first touch, the MWF104SQ underscores its premium aspirations: A robust protective grille and a precision-machined aluminum mounting ring are included as standard. Both components enhance mechanical stability, ensure torsionally rigid integration, and guarantee a permanently secure installation – even under high mechanical stress. This isn't just an add-on; it's a clear statement of quality. The highly rigid basket structure minimizes resonance and warping – even at extreme excursions. The open, flow-optimized design ensures efficient ventilation of the driver system.
|
Power |
500 Watts RMS 1000 Watts Peak |
|
Impedance |
4 Ohms |
|
Voice Coil |
39 mm (1.75") |
|
Magnet |
2.154 kg (76 oz.) |
|
Resonance Frequency |
Fs 33 Hz |
|
Total Q-Factor |
Qts 0.6 |
|
Equivalent Air Volume |
VAS 19.5 L |
|
Efficiency 1W/1m |
SPL 86 dB/2.83 V/1m, Xmax +/- 20 mm |
|
Installation Depth |
74 mm |
|
Installation Diameter |
232 mm |
|
Recommended Enclosure |
Sealed Box Sealed Volume 14 - 25 L -3 dB Rolloff (F3) 39 Hz |
|
Mechanical Components |
Aluminium Basket Polypropylene Cone Rubber Surround Aluminium Dustcap Single Nomex Spider Dual Magnet 2 x 38 oz (2.155 g) Magnet Size Ø135 x 18 mm TIL (Glass-Fibre) Voice Coil Former |
For more information, please visit the manufacturer's website.
