Description
xAlpine introduces the all-new PXE-X800 12-Channel Digital Audio Processor. Beneath its sleek and sophisticated design, brings a powerhouse of Alpine innovation to create a class-leading sound processor consisting of advanced digital sound processing technology and a built-in amplifier.
Elevate your listening experience through extreme sound with key features such as AptX Bluetooth lossless format, 31-bands of EQ adjustment and channel time correction. Whether utilising the in-built amplifier through the 8 channel high level inputs or seeking even more power with use of external amplifiers connected through the 12 channel RCA outputs, the system flexibility of the PXE-X800 is expansive.
Using the Alpine PXE-X800 tuning system, connect wirelessly via a smartphone application or via USB connection for PC. The easy-to-use software allows you to delicately fine tune and control your system, while displaying all data with its modern graphical user interface.
The PXE-X800 is the ultimate audio solution for almost any requirement. From OEM upgrades to high-end systems, the powerful tuning capabilities and system flexibility allows you to perfect your ideal sound system to accomplish a truly high-end sound.

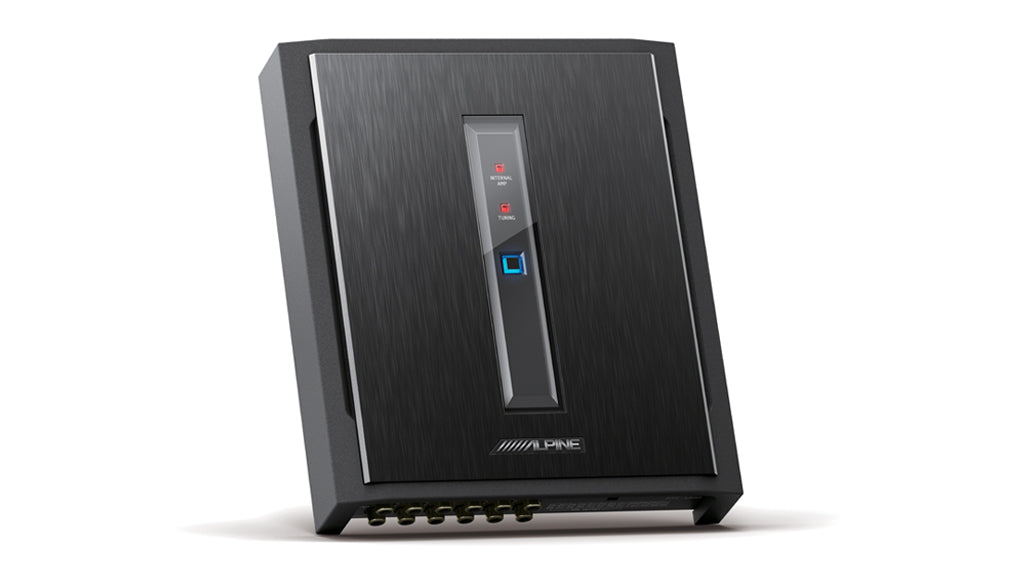

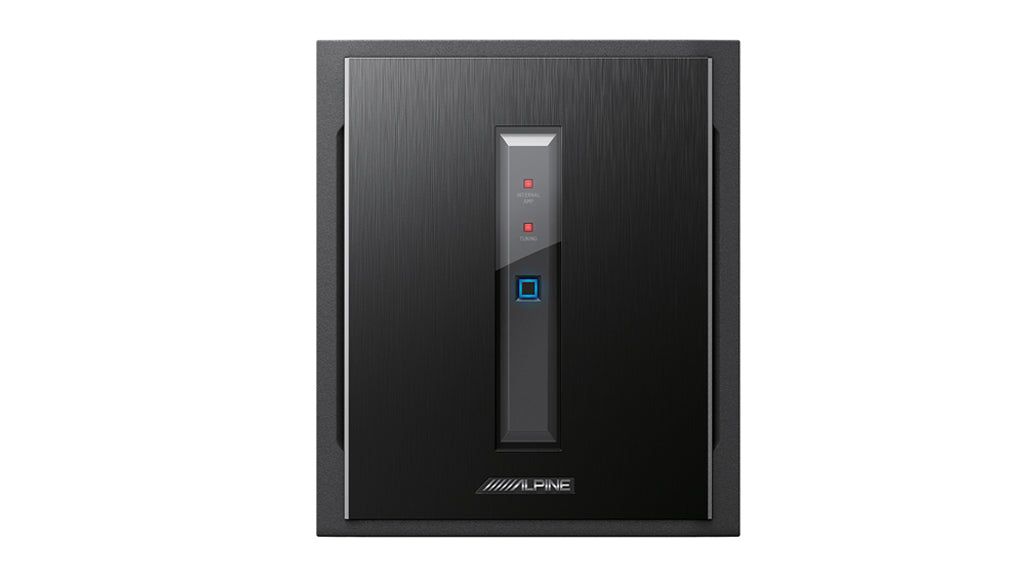

F#1 Status Inspired Design
Drawing design inspiration from the pinnacle in car audio – Alpine F#1 Status. The all-new PXE-X800 exudes cool with a high-quality metal brushed aluminium shell and Alpine’s exclusive blue power indicator light. Despite the PXE-X800’s compact design it packs punch with powerful performance delivery of up to 50W RMS (CH1-CH4). Furthermore, the input and output terminals are placed in a unified vertical direction with convenient wiring to assist with your super clean install.
High-level Inputs
The PXE-X800 is supplied with 8 high-level inputs, 4×50W RMS (CH1-CH4) + 4x25W RMS (CH5-CH8) allowing use of its compact internal amplifier to provide added power and authority to your system. Optical/coaxial input is also available for further system integration.

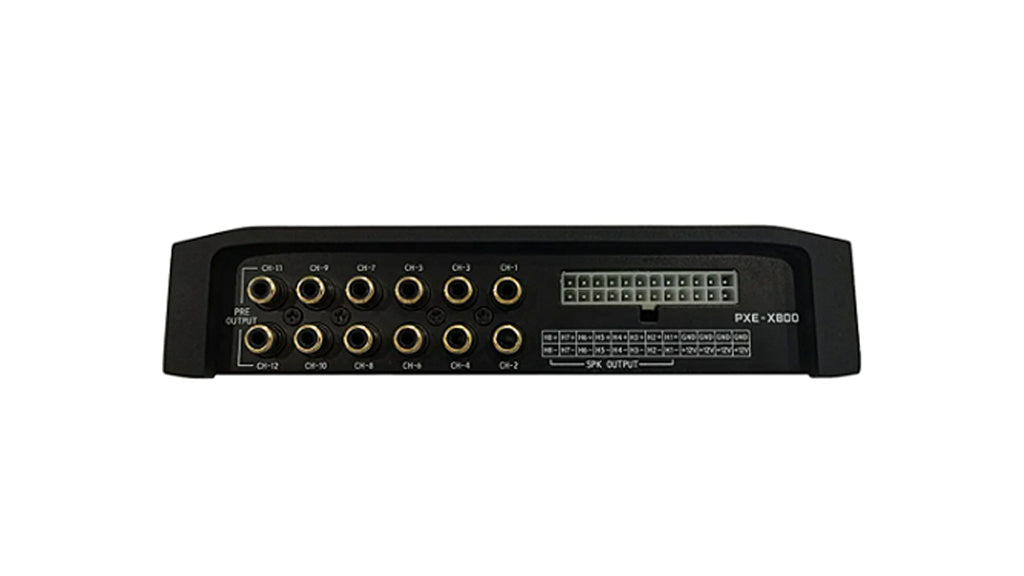

12 Channel RCA Outputs
The 12 Channel RCA outputs allow for the setup of virtually any system configuration. The connection of external amplifiers to the outputs to allow for the use of 2-way and 3-way speaker systems with a subwoofer.
RUX-C810 Controller
The RUX-C810 controller (sold separately) is compatible with the PXE-X800 12 Channel Digital Audio Processor enabling main source and EQ preset selection, input selection and subwoofer volume adjustment. The controller is very compact and can be easily installed anywhere in the dash-board or centre console. It features a rotary encoder and black/white LCD display.
Ultra-Compact FootprintÂ
The ultra-compact design measuring at 228mm x 195mm and a slim profile of just 45mm allows this amplifier to be installed virtually anywhere in the vehicle, such as under or behind a seat, or any other suitable location. With its impressive high-class design, it’s also perfect for custom show-level installations.
Unique APTX Bluetooth Lossless Format
The external V4.0 dual-mode Bluetooth technology is designed to deliver low power consumption and great sound quality with the support of APTX lossless format. With a long-range transmission of up to 15m, this ensures the Bluetooth transmission performance is stable, providing a smooth listening experience.
Extensive Sound TuningÂ
The PXE-X800 delivers expansive tuning capabilities straight out of the box and allows you to dive deep into refining the calibration of your system. With a more user-friendly design, the PXE-X800 tuning software features a split-screen mode allowing for a quicker and more convenient user tuning experience across your devices. With such easy access to tuning through PC or smartphone, the PXE-X800 makes professional grade audio tuning readily available to everyone.
Specifications
|
Frequency response |
20Hz – 20KHz/ 1Hz step |
|
Inputs |
|
|
|
12-channel RCA audio |
|
|
Built-in AMP |
|
|
Slope 6/12/18/24/30/36/42/48 dB |
|
|
Optical/ Coaxial |
|
Outputs |
|
|
|
4 x 25W (Rated power) |
|
|
4 x 50W (Max power) |
|
Sound & Tuning |
|
|
|
31 Bands parametric EQ |
|
|
31 Bands graphic EQ |
|
|
Time correction (up to 20ms/ ch) |
|
|
AptX Bluetooth lossless format |
|
Dimension |
228.2mm x 194.5mm x 45mm |
|
Dynamic range |
≥100dB |
|
SNR (RCA) |
≥110dB |
|
Background noise |
High level: 93.3uVrms; RCA：8uVrms |
|
Channel resolution |
≥80dB |
|
THD |
≤0.05% |
|
Input voltage |
High level: 30Vpp; RCA：5Vpp |
|
Output voltage |
High level CH1~CH4: 40 Vpp, high level CH5~CH8: 28 Vpp; RCA: 8 Vpp |
|
Rated power |
CH1~CH450W，CH5~CH8：25W(4Ω, 14.4V, 1kHz, 10%THD) |
|
Maximum power |
CH 1 ~ CH4：100W，CH5~ CH8：50W(4Ω, 1 4.4V, 1kHz, 10%THD) |
|
Input / output sensitivity (RCA) |
1:1.23 (no power amplification) |
|
System sampling rate |
48kHz/24bit |
|
Input impedance |
High level 51Ω; RCA 20kΩ |
|
Output impedance |
51Ω |
|
Operating voltage |
9~16V |
|
Quiescent current |
≤3mA (in off state) |
|
Stand-by power consumption |
≤0.1W |
|
REM startup input |
High level (H1-/H1+), ACC selectable |
|
REM startup output |
12V(0.2A) |
|
Uptime |
10s |
|
Operating ambient temperature |
-20~60℃ |
|
Storage temperature |
-40~85℃ |
Â
For more information, please visit the manufacturer's website.
