Description

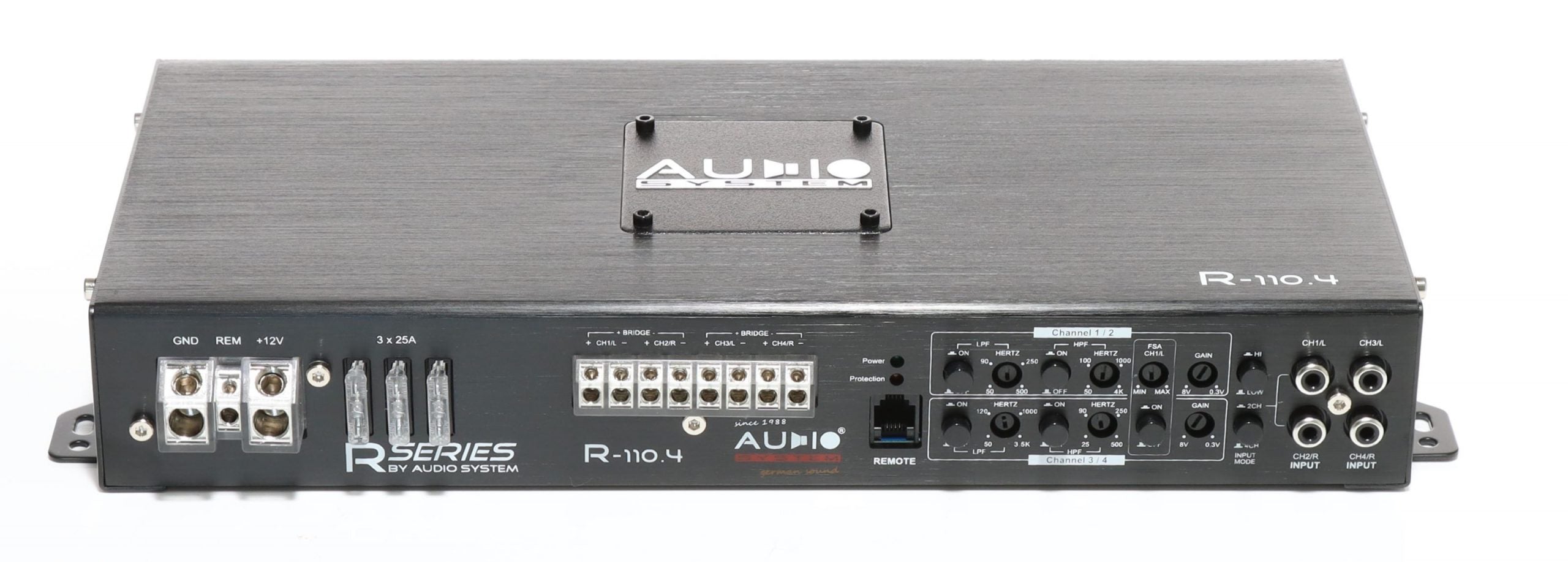

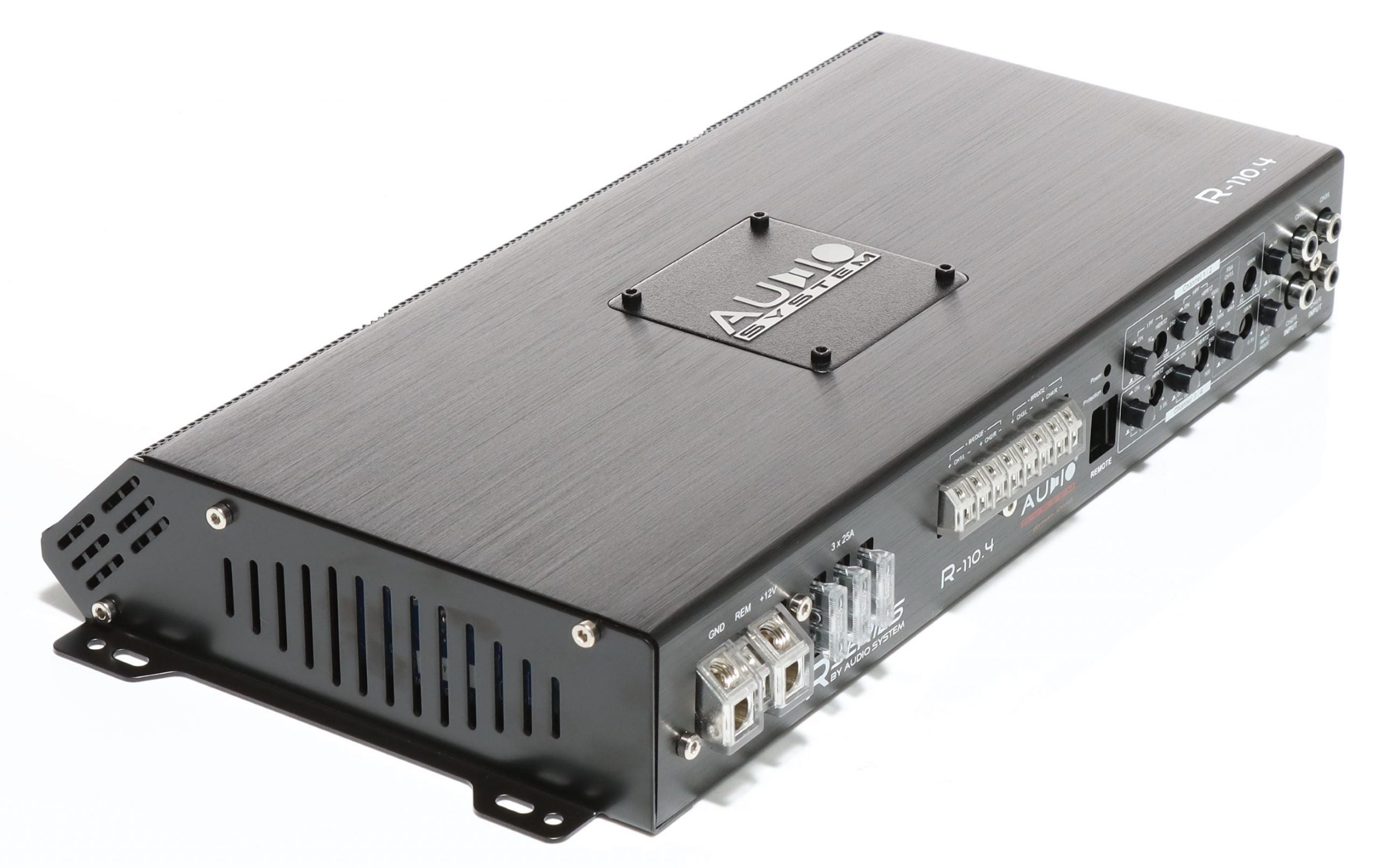

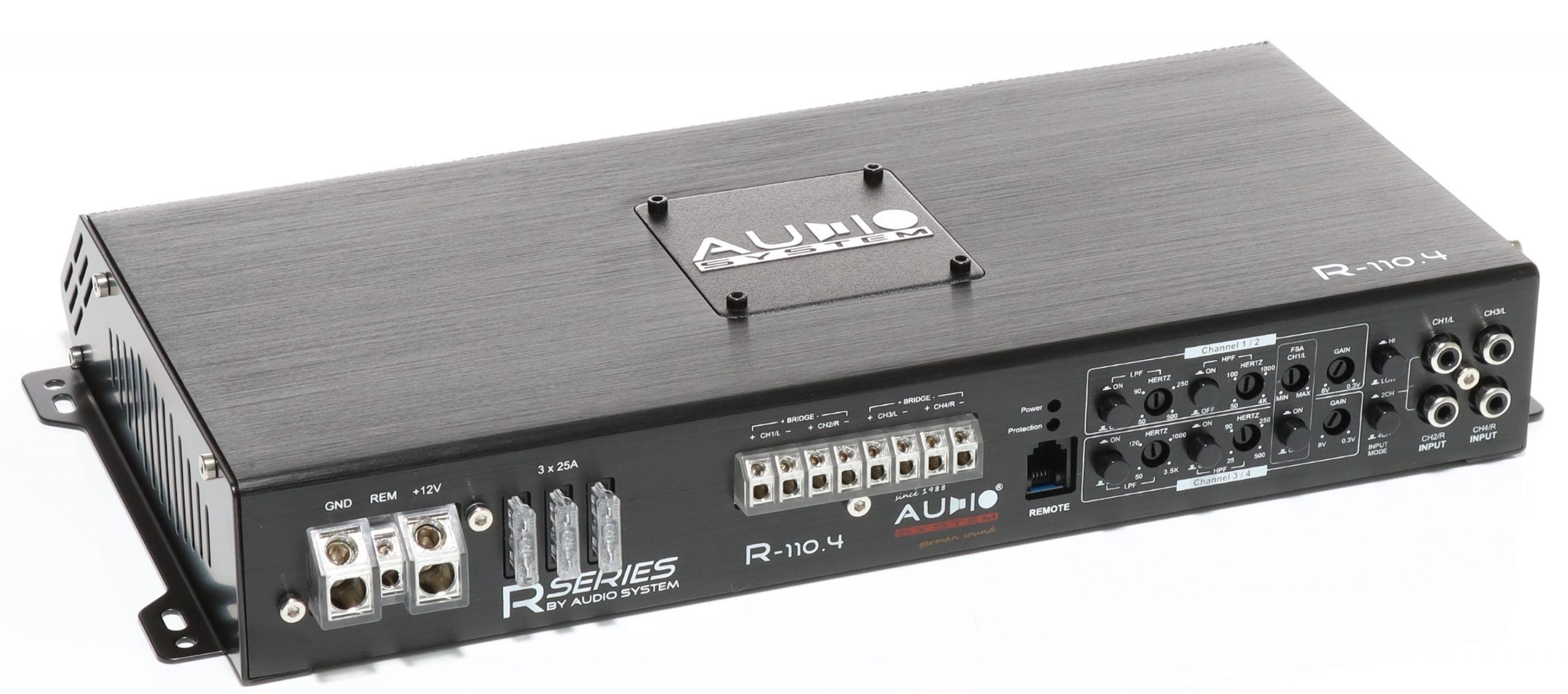

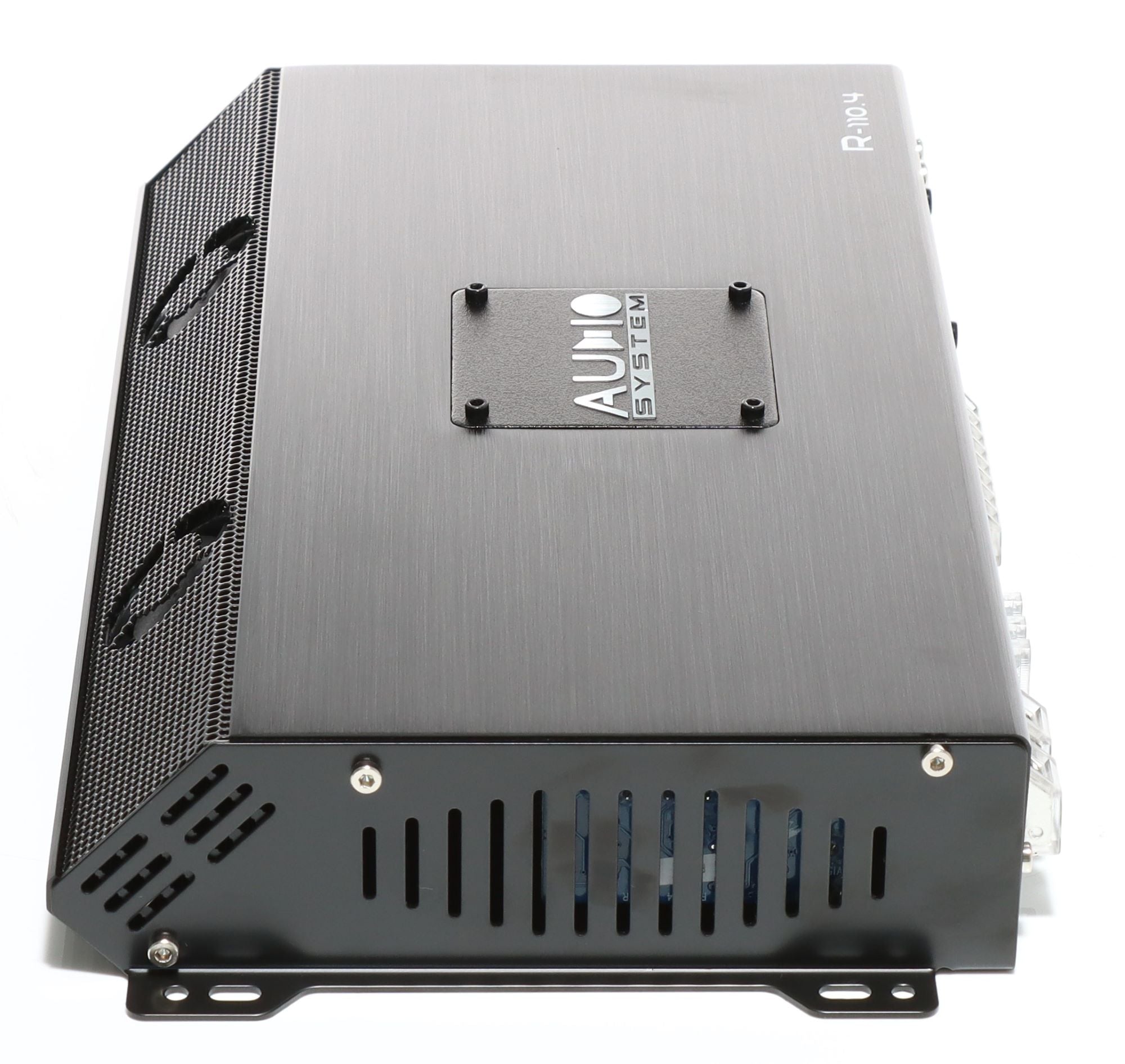

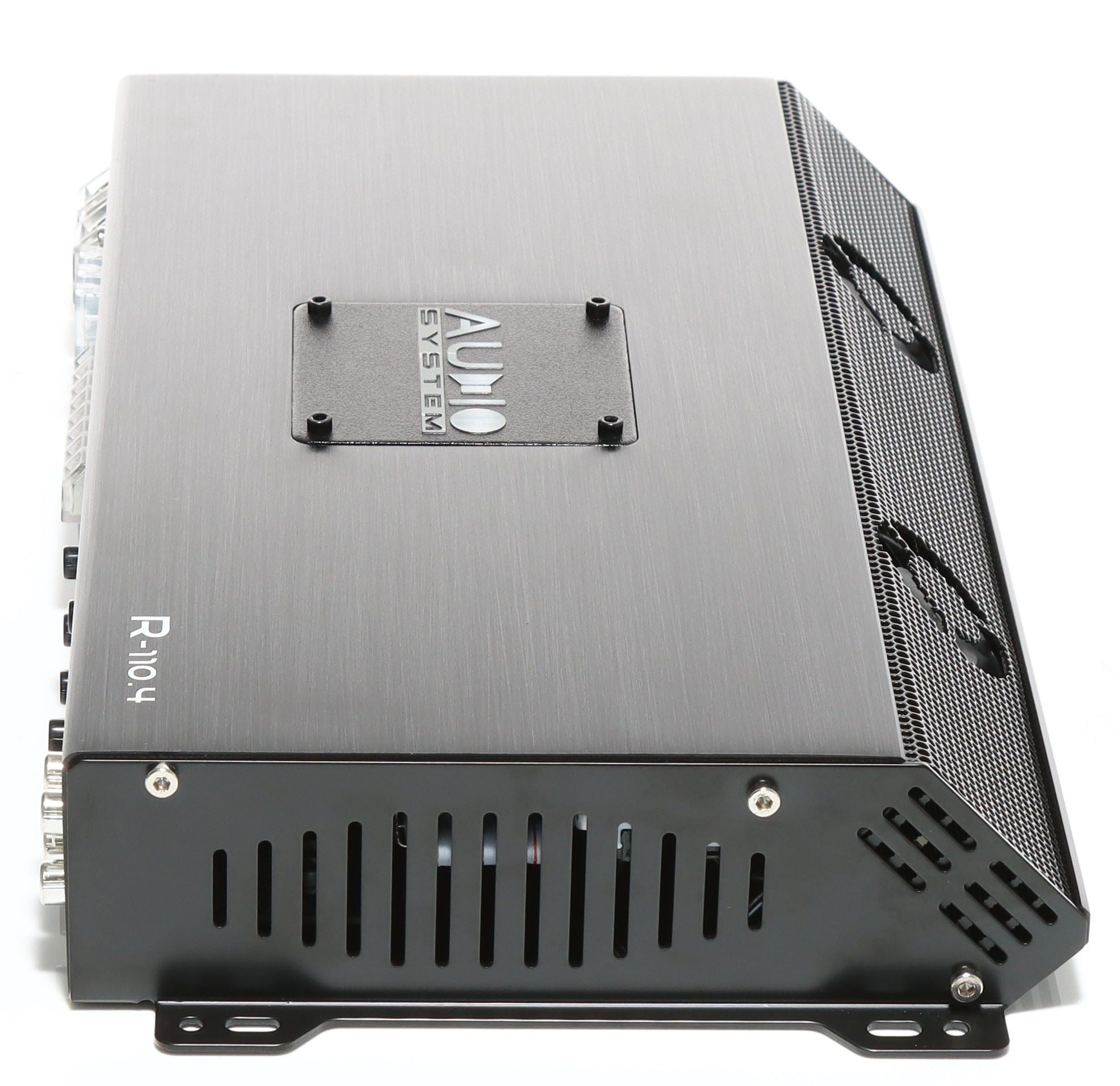

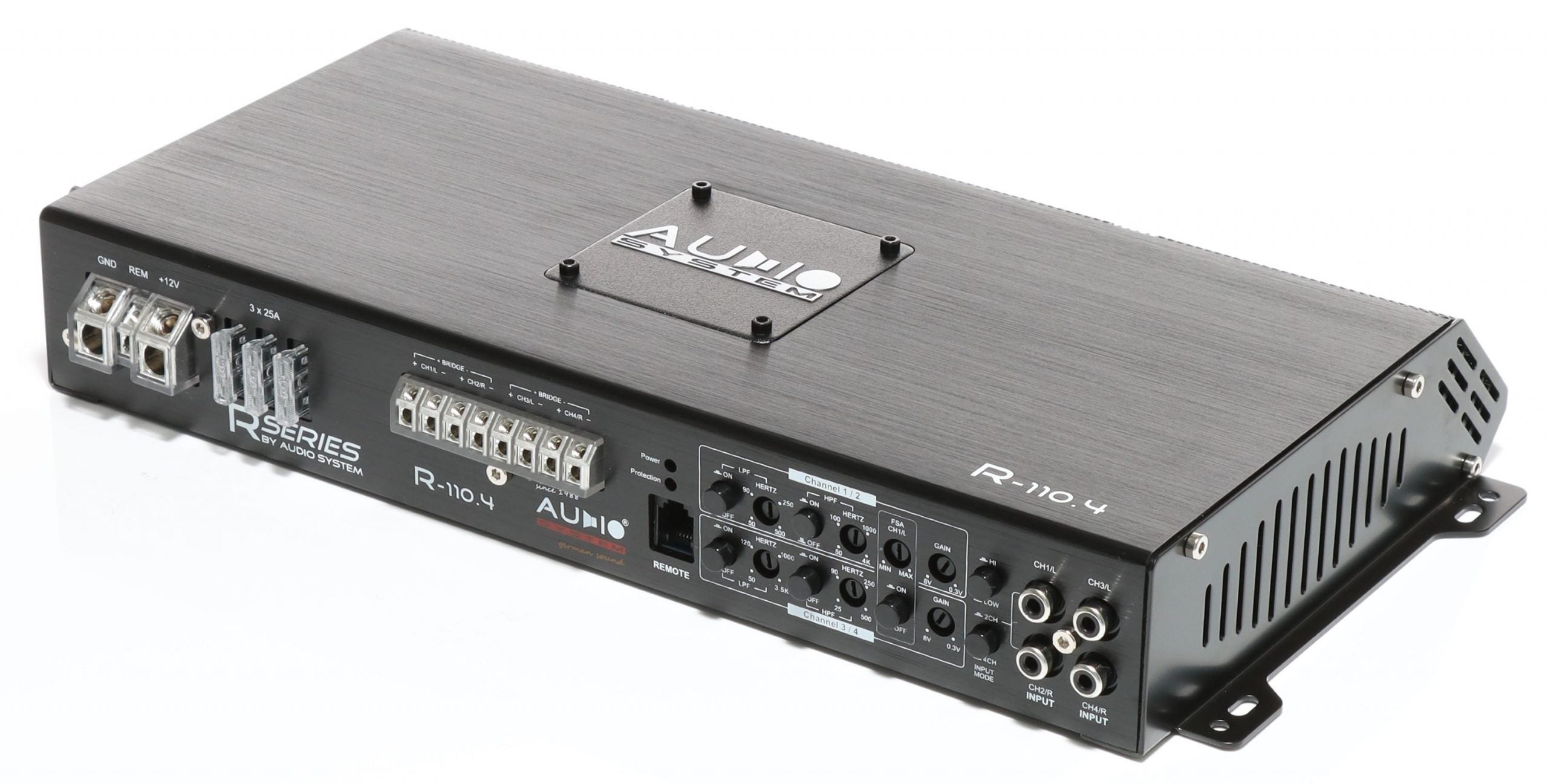

xAudio System R-110.4 R-Series 4ch Amplifier
The AUDIO SYSTEM Radion amplifiers move up a gear in terms of sound and performance on top of it in comparison to the compact M Series. The delicate sound and the enormous performance let the car hifi heart beat faster. It is a pleasure to hear the R SERIES in action.
Features
- 4-Channel with Alu-Logo
- 4-channel Class A/B power-amplifier with SMD technology
- Variable switchable Subsonic
- HP, LP, BP filter and full active mode possible

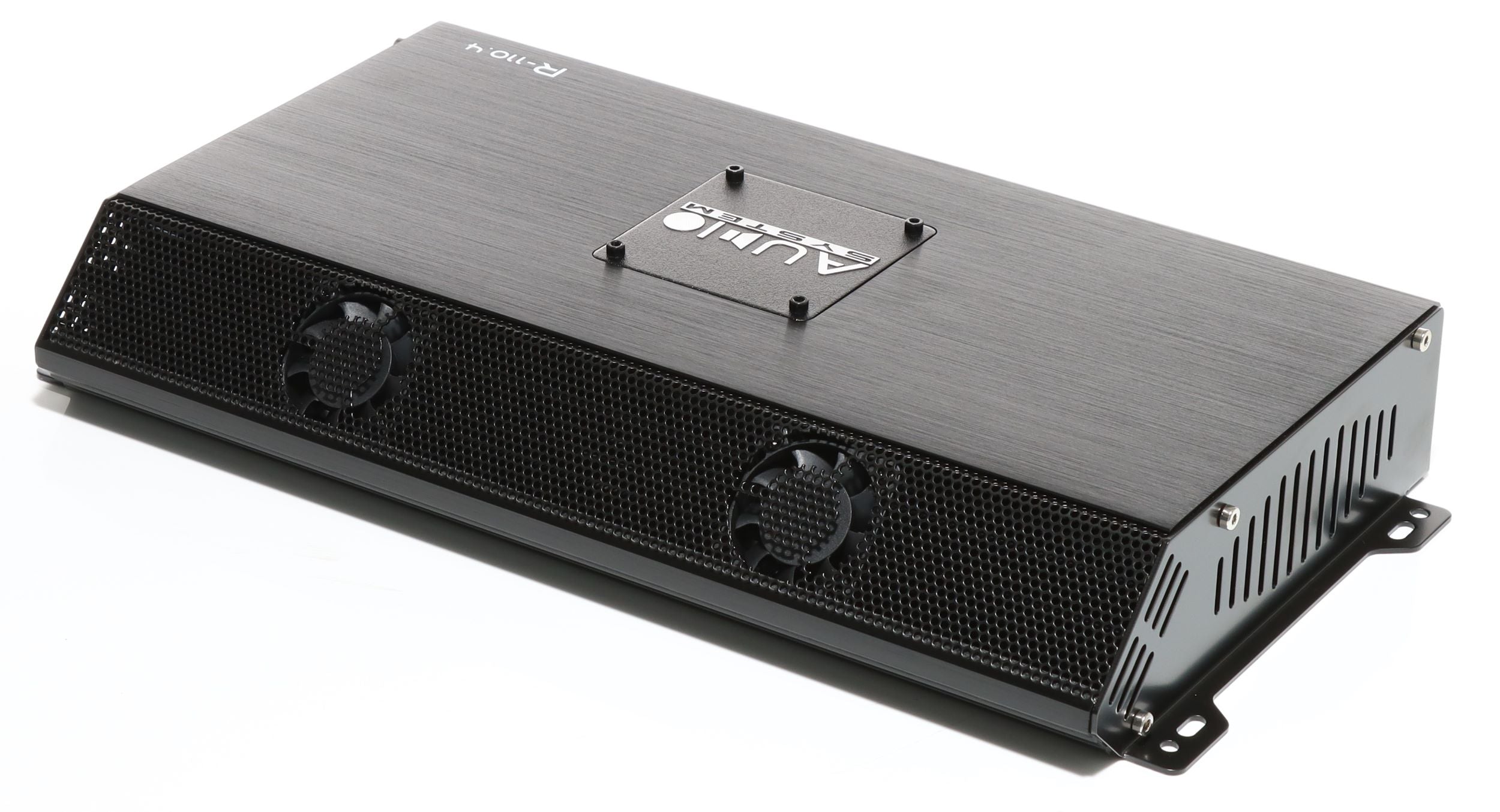

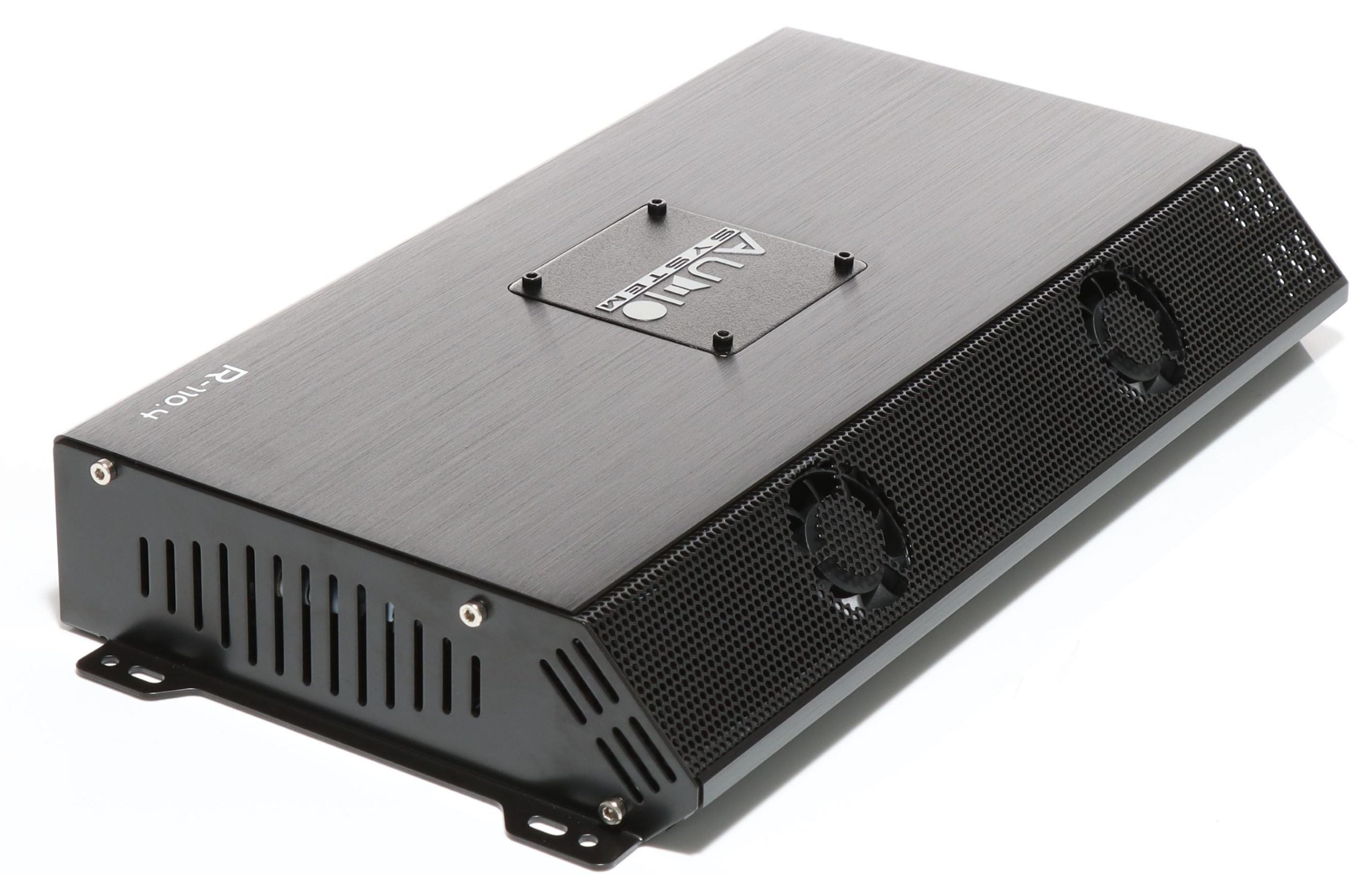

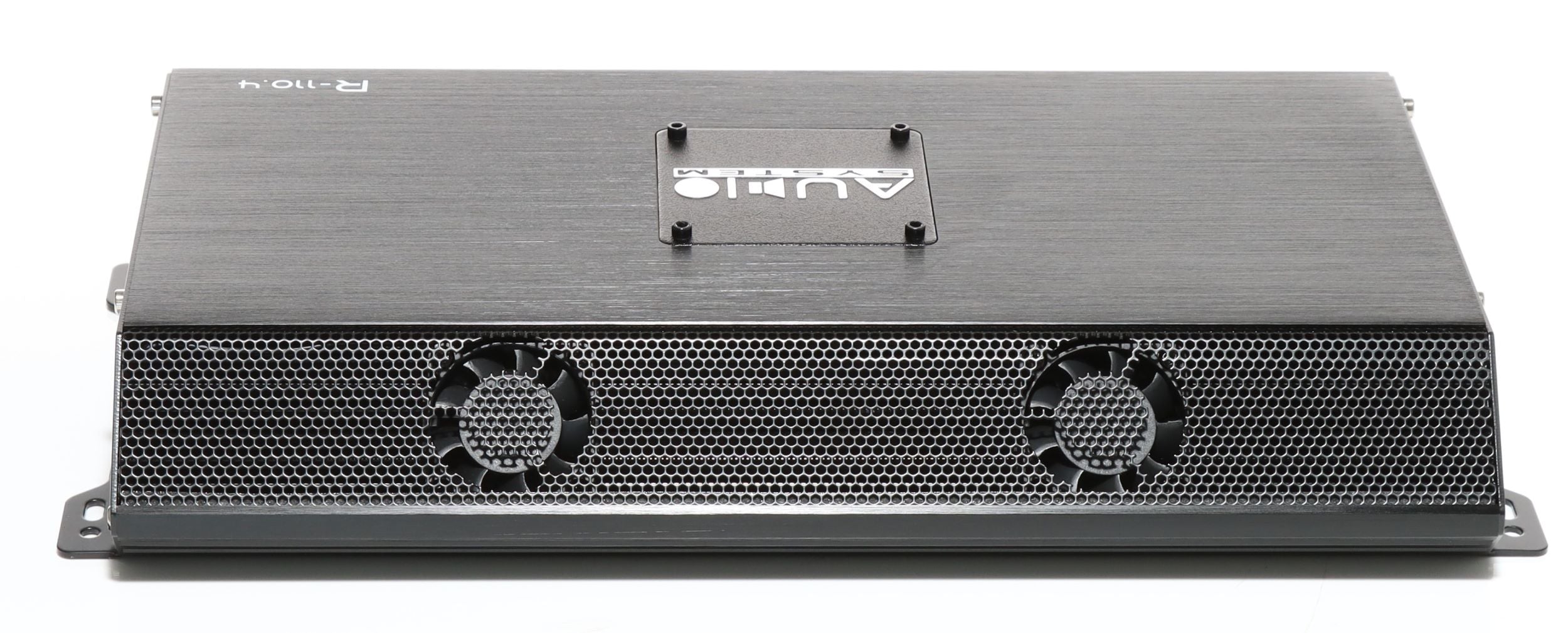

- Efficient 3-time ON TOP fan/cooling system
- RTC (optional)
- FSA (Front-Stage Adjuster)
- RCA-high-level-input or adjustable signal detection with automatic TURN ON
Specifications
|
Power Supply Voltage |
10 - 16 V |
|
Rated Power Output at 14,4 V / 28,8 V |
|
|
-RMS power @ 4 ohm stereo |
4x 110 W |
|
-RMS power @ 2 ohm stereo |
4x 200 W |
|
-RMS power @ 4 ohm bridged |
2x 400 W |
|
Signal to Noise Ratio |
>90 dB |
|
Low Pass Crossover |
50 ~ 3500 Hz |
|
High Pass Crossover |
50 ~ 4000 Hz |
|
Frequency Response |
10 Hz ~ 60 Hz (+/-1 dB) |
|
THD@RMS Watts |
< 0,033% |
|
Fuse Rating |
3 x 25A |
|
Input Sensitivity |
300 mV ~ 8 V (+/- 5%) |
|
Dimensions |
325(L) x 50(H) x 185(W) mm |
Â
For more information, please visit the manufacturer's website.
