Description

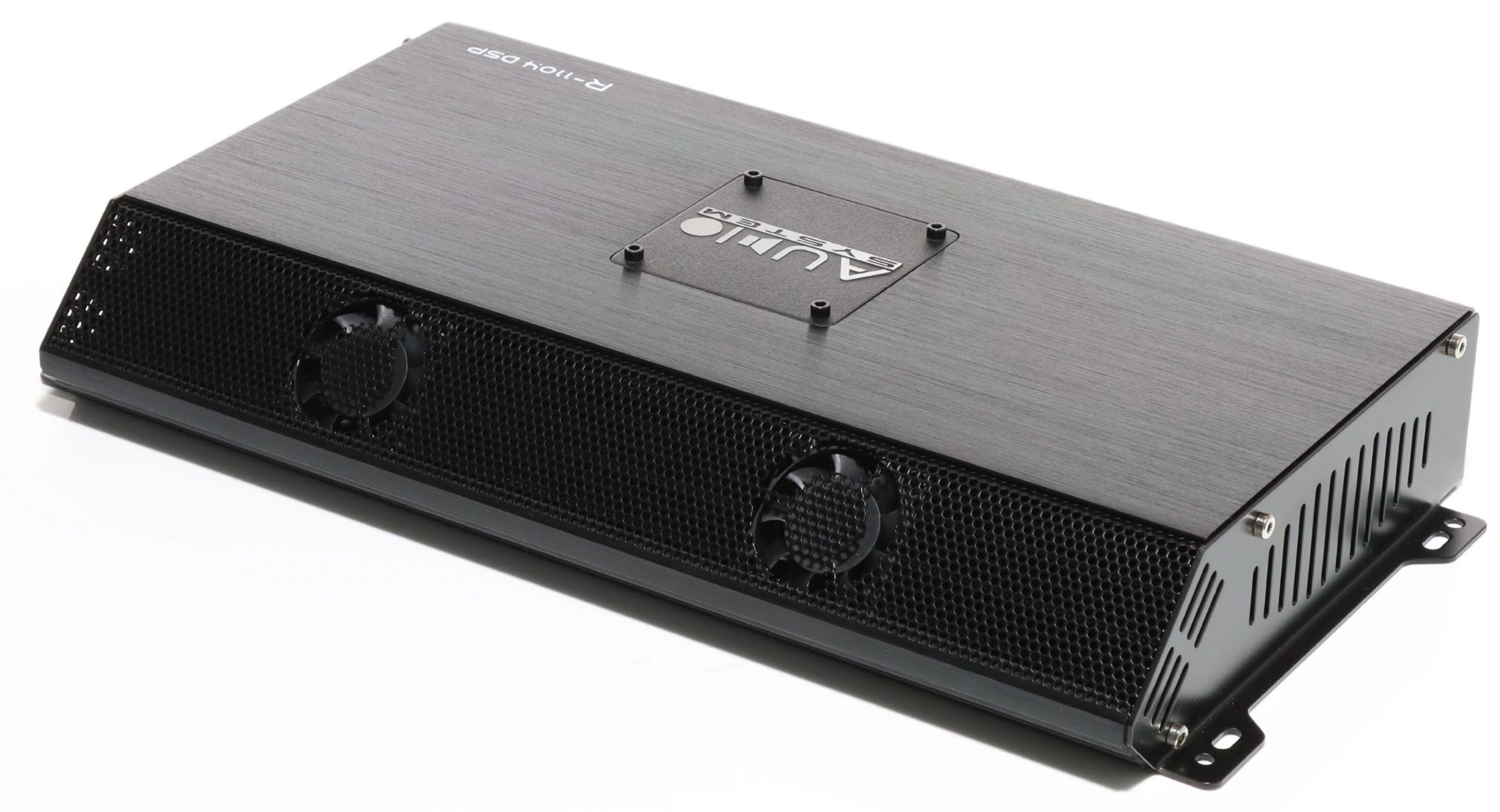

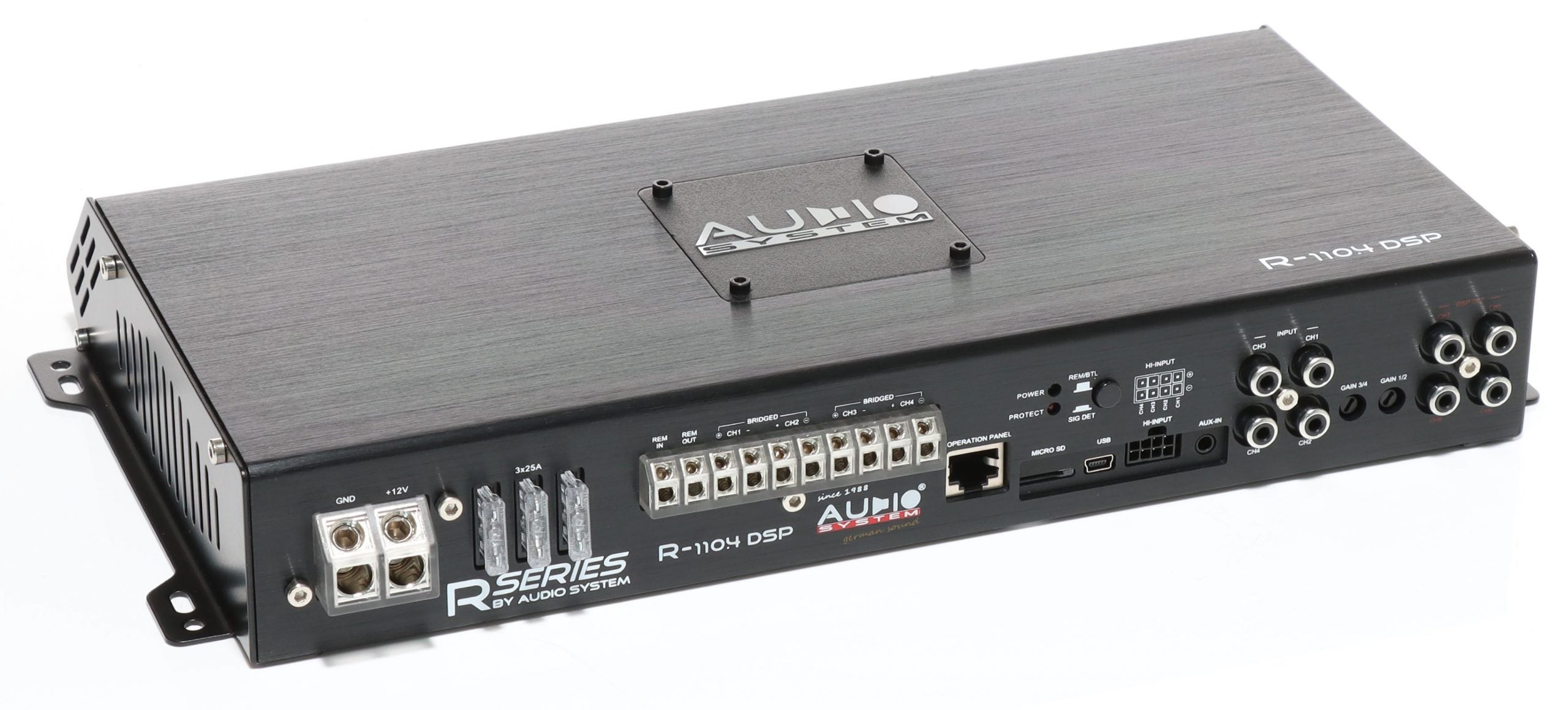

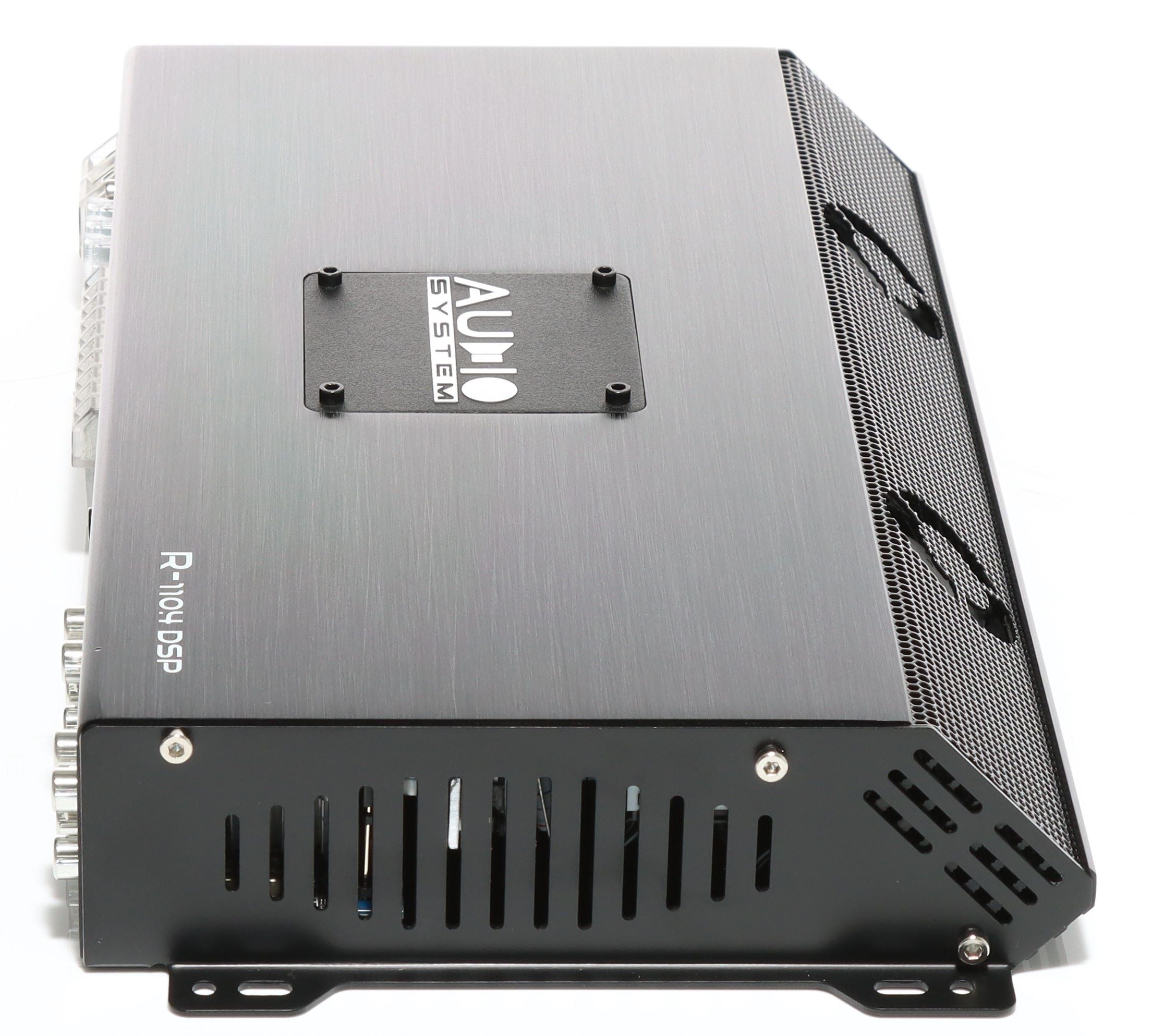

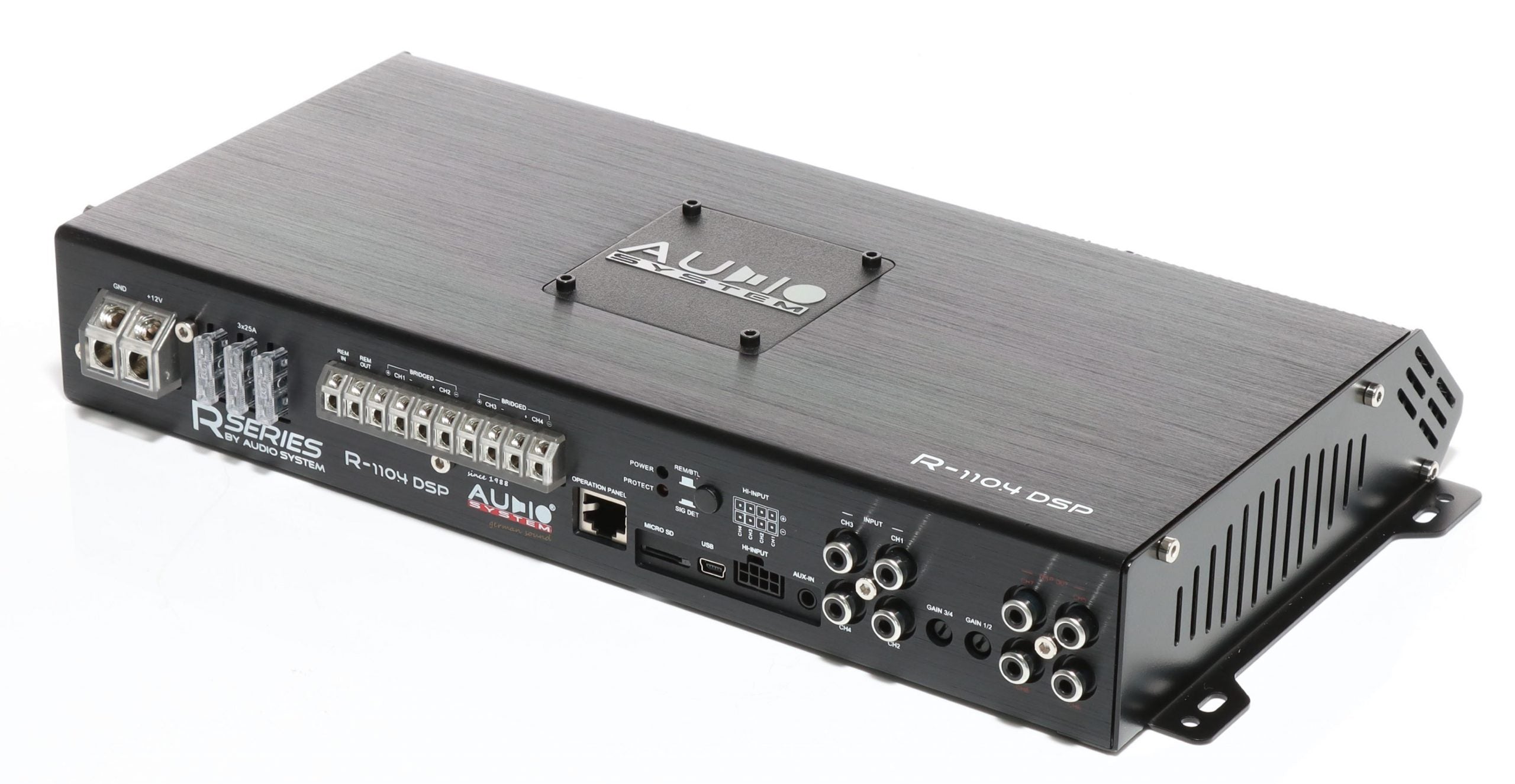

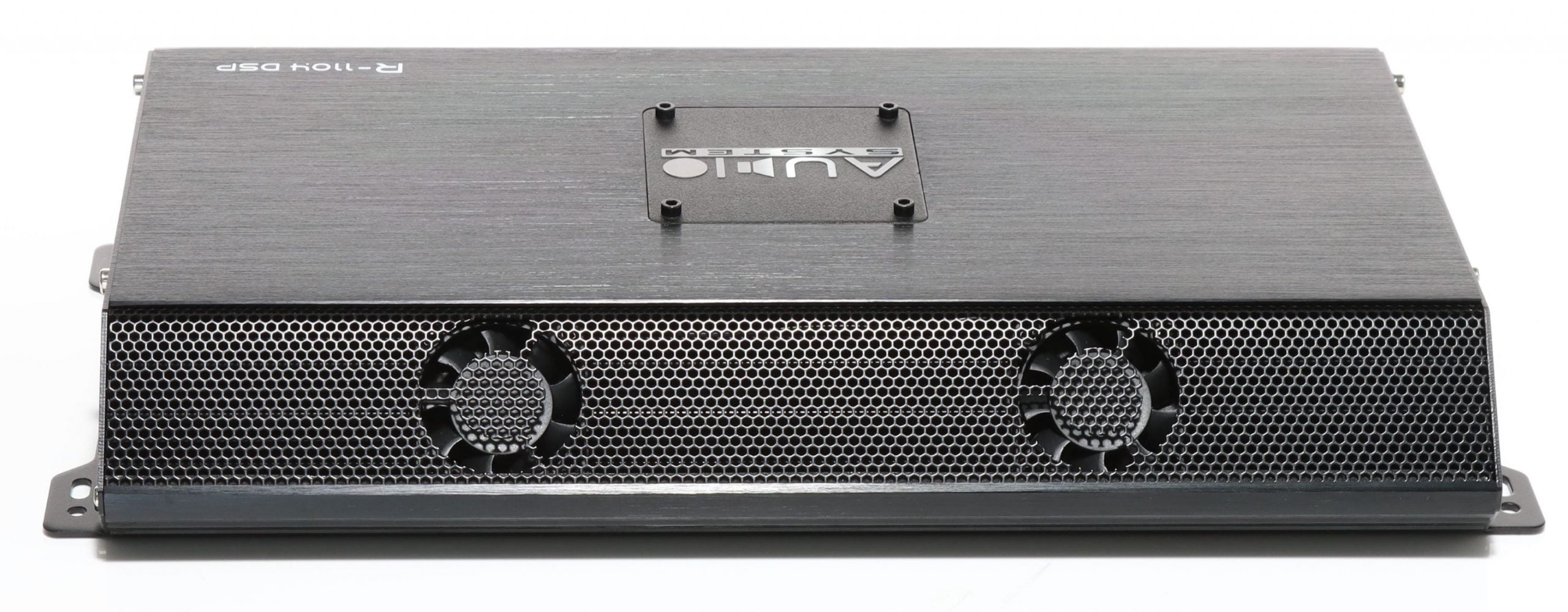

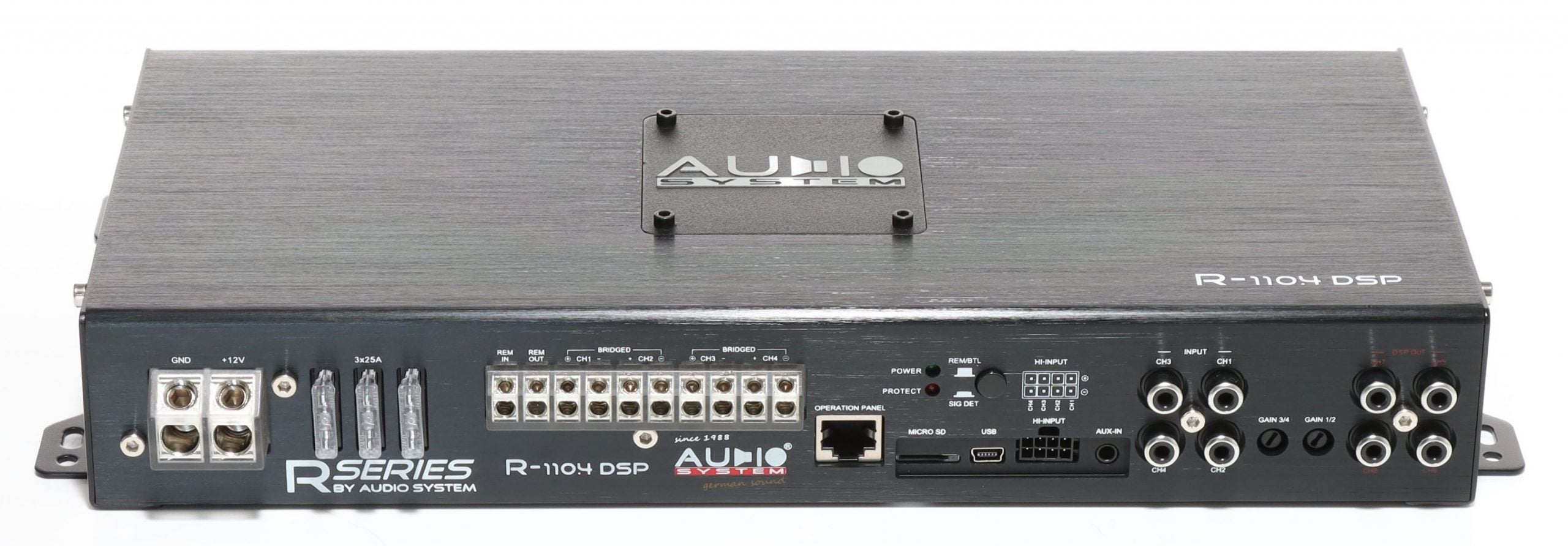

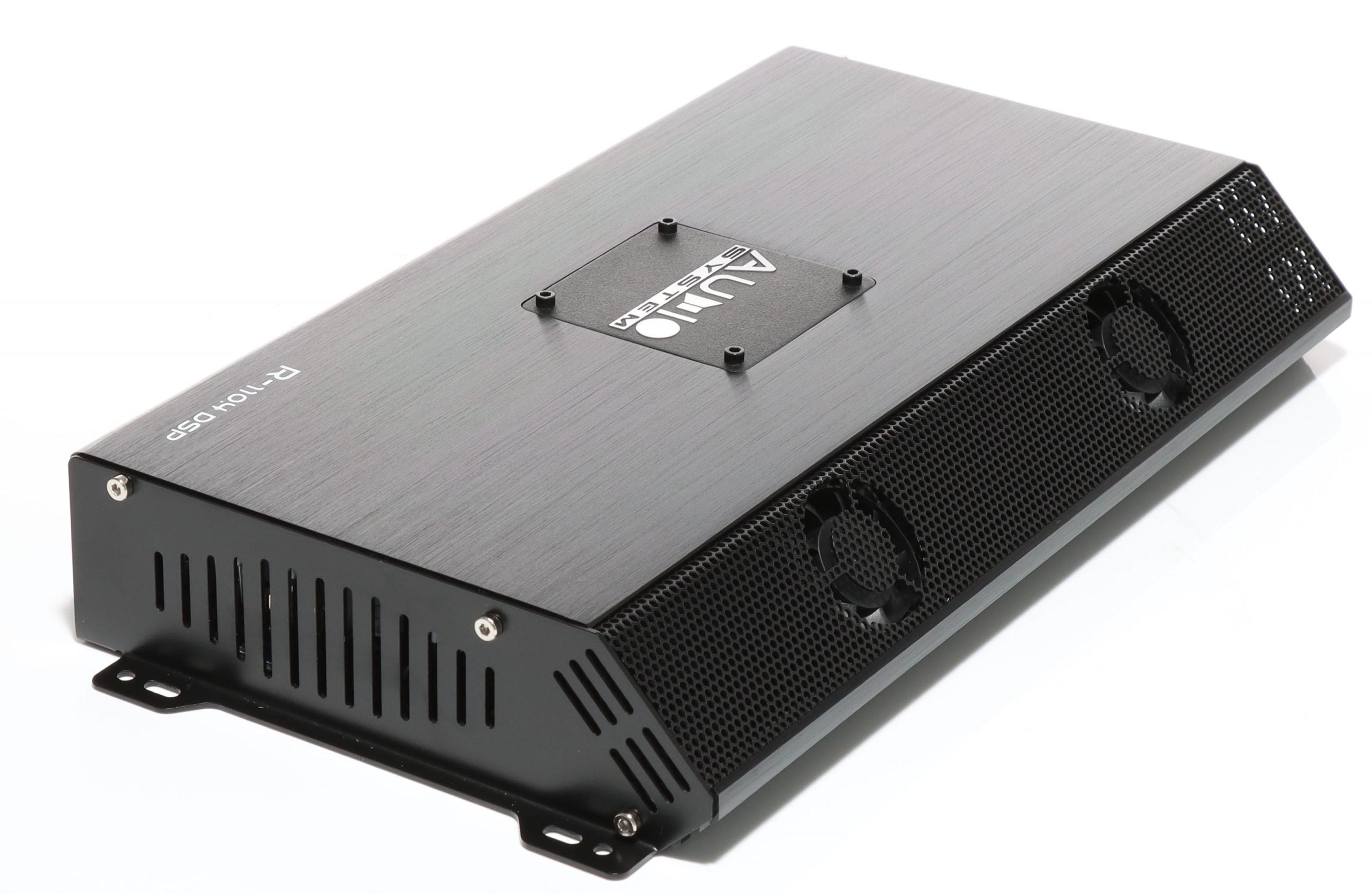

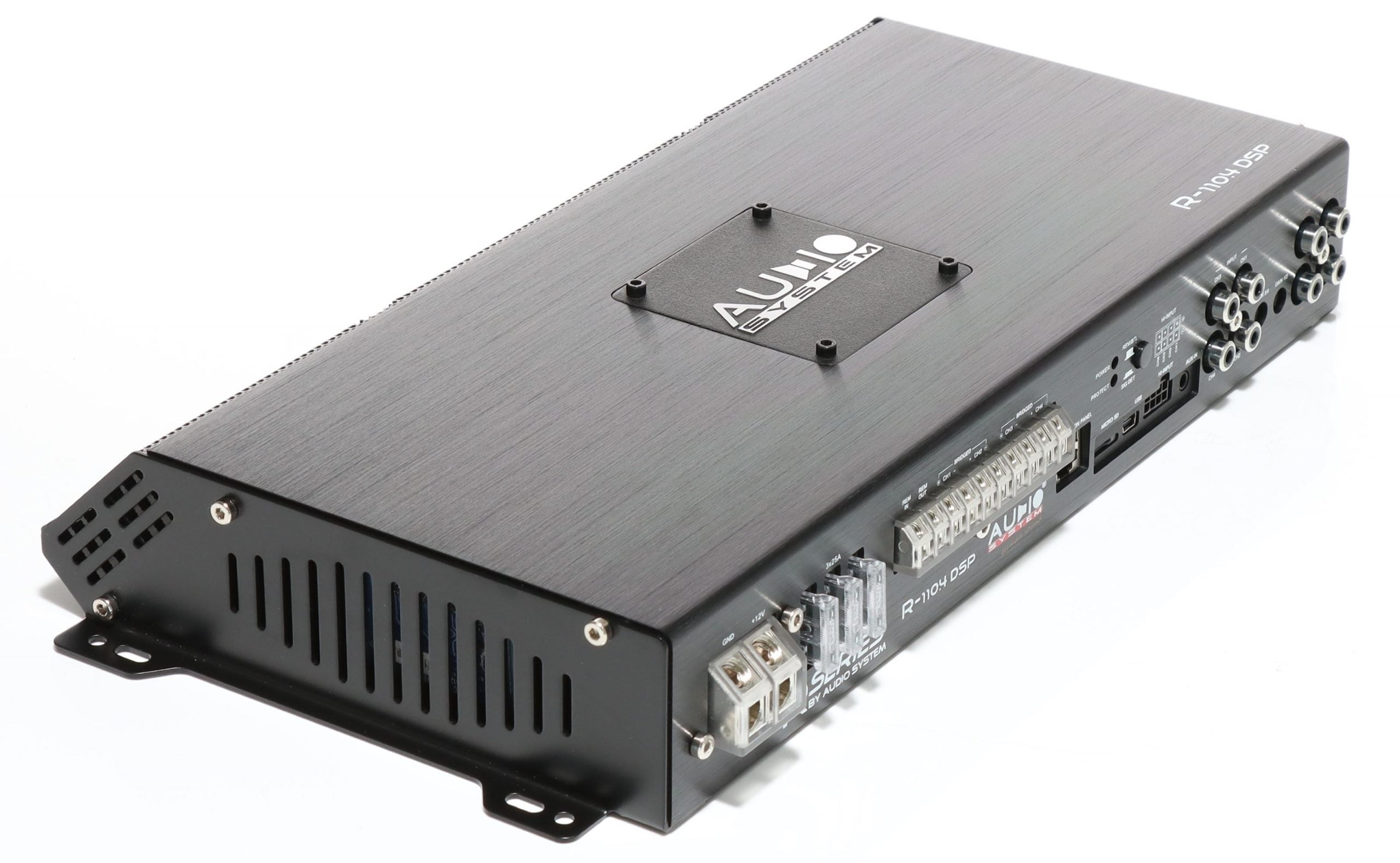

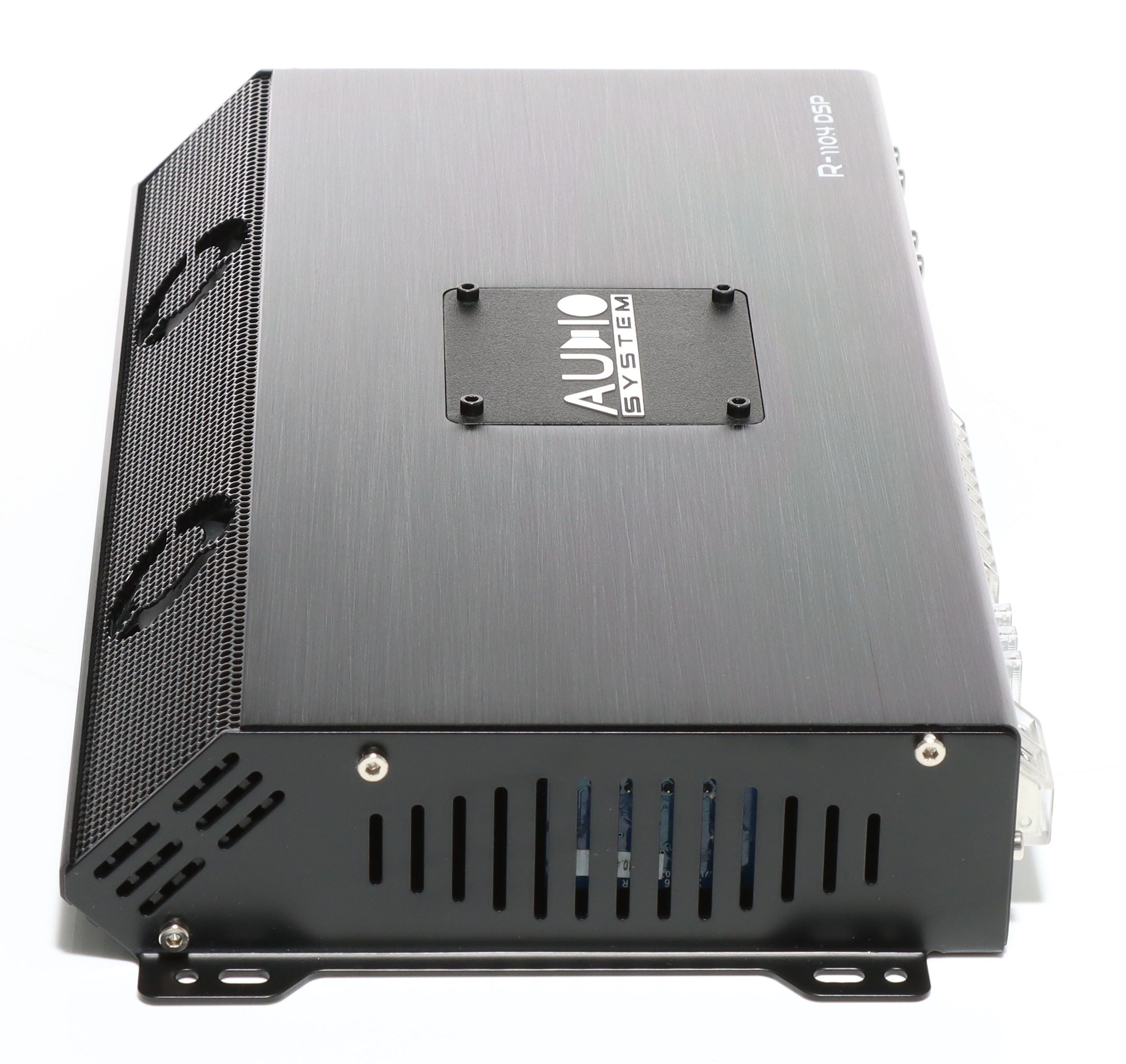

xAudio System R-110.4DSP-BT R-Series 4ch Amplifier 8ch DSP
The AUDIO SYSTEM Radion amplifiers move up a gear in terms of sound and performance on top of it in comparison to the compact M Series. The delicate sound and the enormous performance let the car hifi heart beat faster. It is a pleasure to hear the R SERIES in action.
Features
- 4-Channel Amp with 8-channel DSP and BT
- 4-channel analog high-performance amplifier controlled via APP
- With 8-channel SIGMA DSP processor from ANALOG DEVICES
- SOFTWARE/APP adjustable via ANDROID-BT or iOS-BT
- Automatic UPDATE via WLAN
- 30x parametric EQ’s per channel
- 8x presets
- Up to 48 dB
- 4x DSP controlled RCA outputs (5 volts)
- 1x AUX input
- 4x RCA Inputs (low level 0.5 to4 volts)
- 4x Molex high level inputs (5 to 20 volts) via BTL or SE
- Signal detection with switch-on automatic
- 1x remote output
- Frequency range: 10-24000 Hz
- Signal-to-noise ratio
- ADC:107 dB and DAC: 112 dB
- Start/stop capable up to 6 volts/5sec
- Operating voltage 9.6-18 volts
- Operating temperature from -40C° to +85C°
Specifications
|
Power Supply Voltage |
10 - 16 V |
|
Rated Power Output at 14,4 V |
|
|
-RMS power @ 4 ohm stereo |
4x 110 W |
|
-RMS power @ 2 ohm stereo |
4x 200 W |
|
-RMS power @ 4 ohm bridged |
2x 400 W |
|
Signal to Noise Ratio |
>97 dB |
|
Signal to Noise Ratio DSP ADC (Typ) |
107 dB |
|
Signal to Noise Ratio (Typ) DSP DAC |
112 dB |
|
DSP Outputs |
8 (4x internal and 4x external) |
|
High-Level Inputs |
4 |
|
Low-Level Inputs |
4 |
|
Aux-input |
1 |
|
Sampling Rate |
48 kHz |
|
Operating Temperature |
-40C° to +85C° |
|
Frequency Response |
10 Hz ~ 24 Hz (+/-1 dB) |
|
THD@RMS Watts @ 4ohm ½ power |
< 0,033% |
|
Channel Separation |
75 dB |
|
Fuse Rating |
3 x 25A |
|
Input Sensitivity |
300 mV ~ 8 V (+/- 5%) |
|
Dimensions |
325(L) x 50(H) x 185(W) mm |
Â
For more information, please visit the manufacturer's website.
