Audison APK130 Prima 5.25 Inch Component Speakers
Audison APK130 Prima 5.25 Inch Component Speakers
Audison APK130 Prima 5.25 Inch Component Speakers
Audison APK130 Prima 5.25 Inch Component Speakers

Audison APK130 Prima 5.25 Inch Component Speakers

$419.00
$0.00
$419.00
Brand: Audison
SKU: APK130
Availability: Out Of Stock
2-way component speakers
Diameter: 13cm (5")
RMS Power: 75 watts
Frequency response: 70Hz - 20000Hz

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Audison APK130 Prima 5.25 Inch Component Speakers

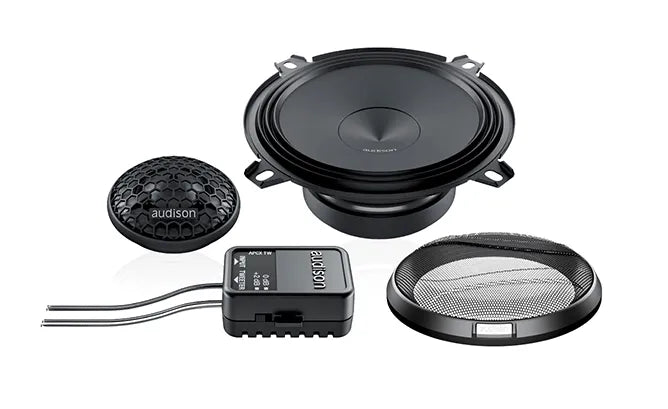

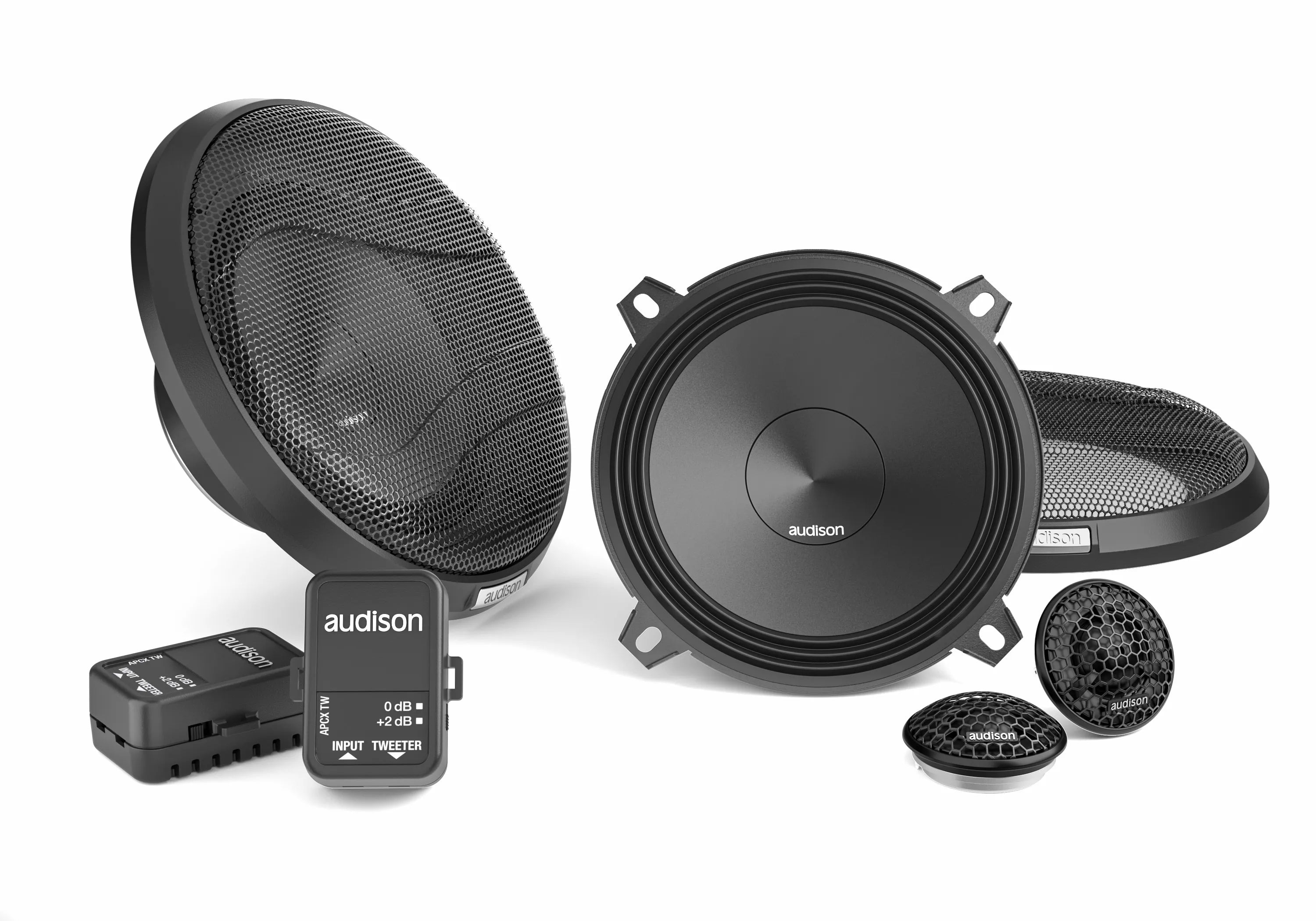

This two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Features

  • AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with OEM Integration compliant fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow Triple Wave profile, for maximum excursion linearity.
  • AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Specifications

Woofer Size

130 mm

Tweeter Size

26 mm

Woofer Voice Coil Diameter

32 mm

Tweeter Voice Coil Diameter

20 mm

Crossover Type

HP @ 3,5 kHz - 6 dB Oct

Magnet Size Woofer

85 x 40 x 13

Power Handling - Peak

225 W

Power Handling - Continuous

75 W

Impedance

4 Ohm

Frequency Response

70 ÷ 20k

Adjustment Tweeter Level

+2; 0

Woofer Cone Diameter

107 mm

Xmax Woofer

2 mm



For more information, please visit the manufacturer's website.
