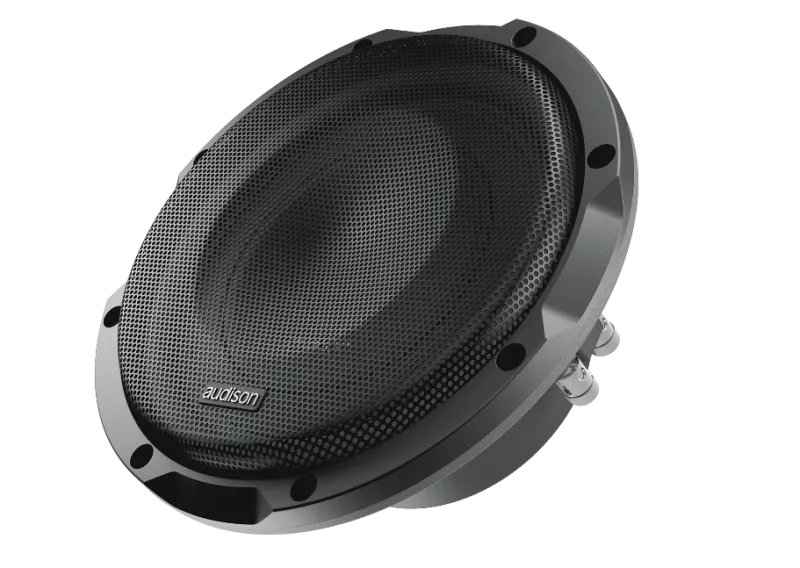

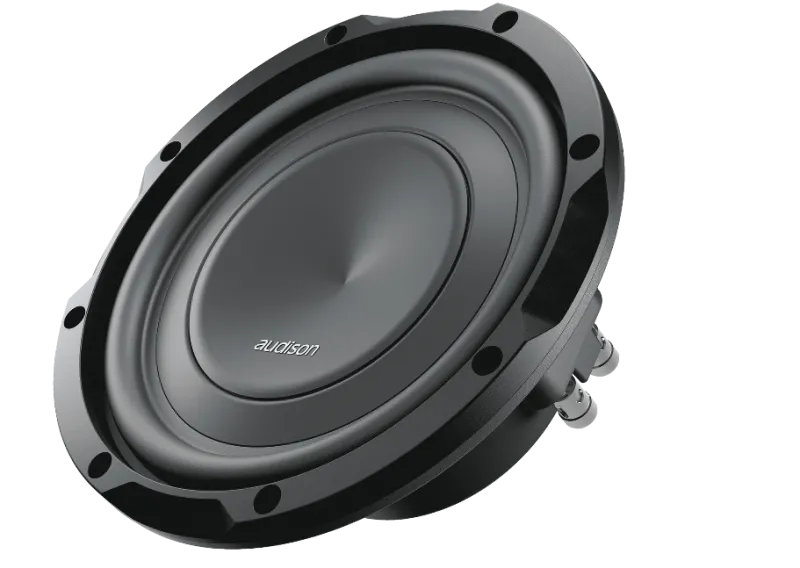

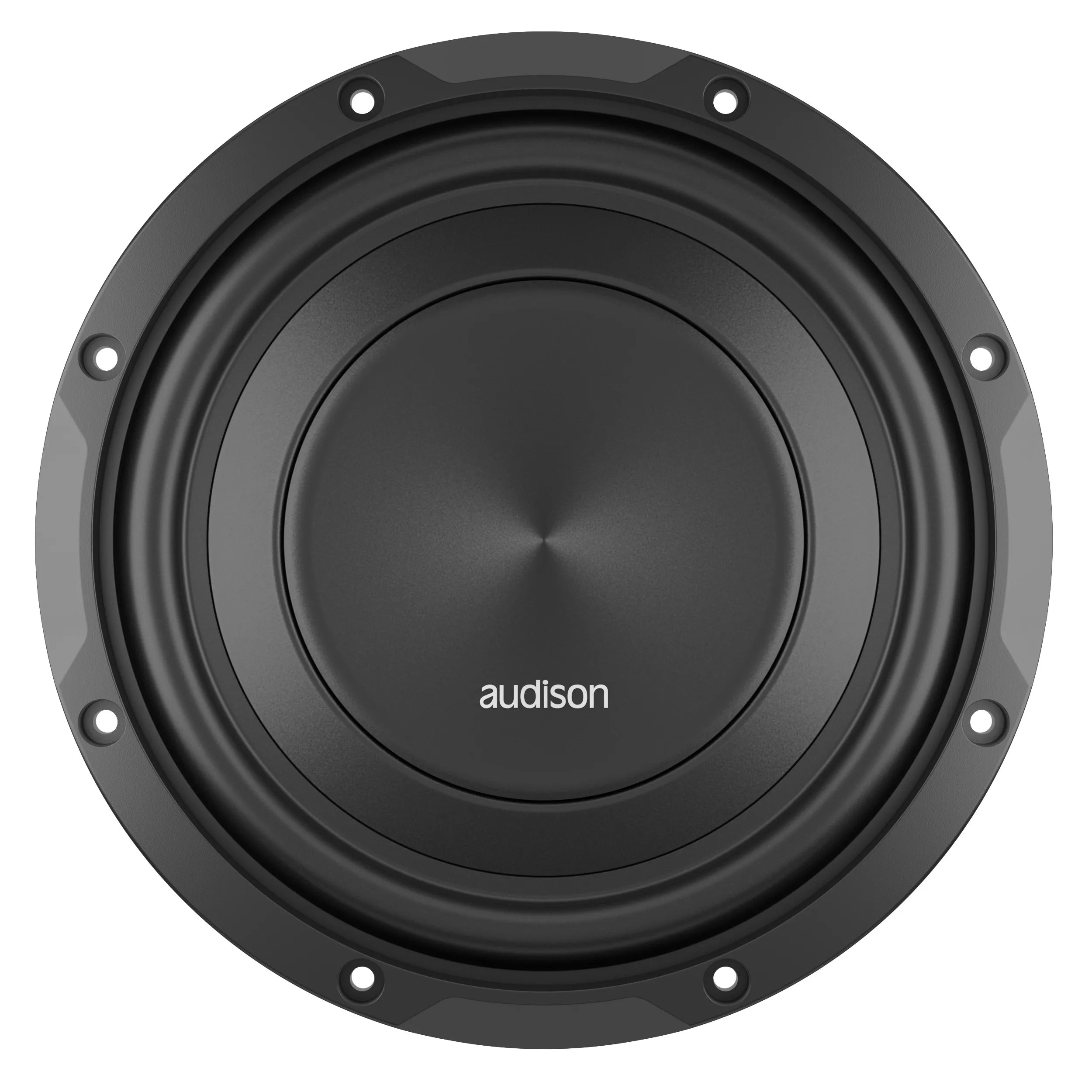

Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer
Audison APS8D 8 Inch Dual 4 Ohm Subwoofer

Audison APS8D 8 Inch Dual 4 Ohm Subwoofer

$304.00
$0.00
$304.00
Brand: Audison
SKU: APS8D
Availability: Out Of Stock
8" Subwoofer dual 24 voicecoils
Power Handling: 250 watts RMS
Peak Power: 500 watts
Ultra-low profile (3.11 in. / 79 mm)

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Audison APS8D 8 Inch Dual 4 Ohm Subwoofer

The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features

  • Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
  • Designed to deliver maximum performance in a sealed enclosure starting from 7.5 lt.

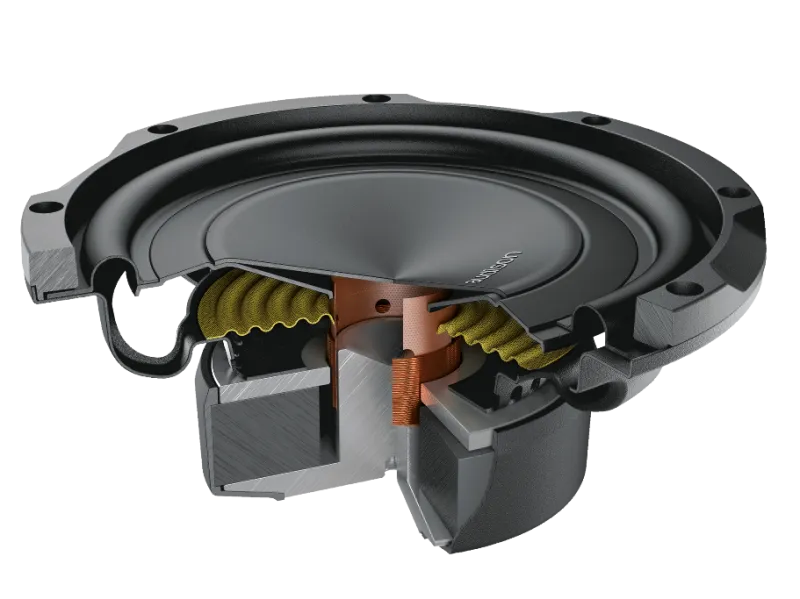

  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.

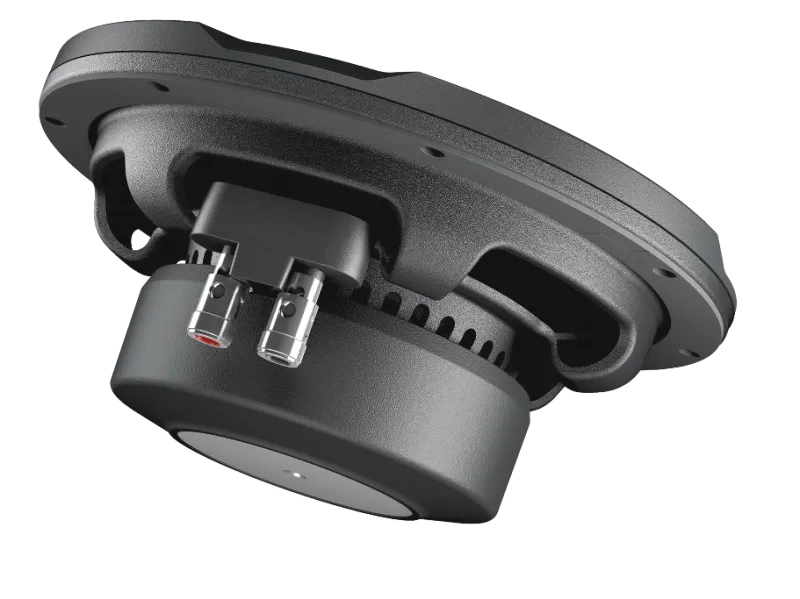

  • Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
  • Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
  • Water-repellent pressed paper 8 in. cone featuring a profile developed with simulation and optimized with the Klippel Scan Vibrometer.
  • Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers.
  • Steel mesh grille and plastic gasket included.

Specifications

Size

200 mm

Power Handling - Peak

500 W

Power Handling - Continuous

250 W

Impedance

2 Ohm

Magnet Material

HIGH DENSITY FLUX FERRITE

Woofer Qes

0,46

Cone Material

WATER REPELLENT PRESSED PAPER

Xmax

8.8 mm

Xmech

16.5 mm



For more information, please visit the manufacturer's website.
