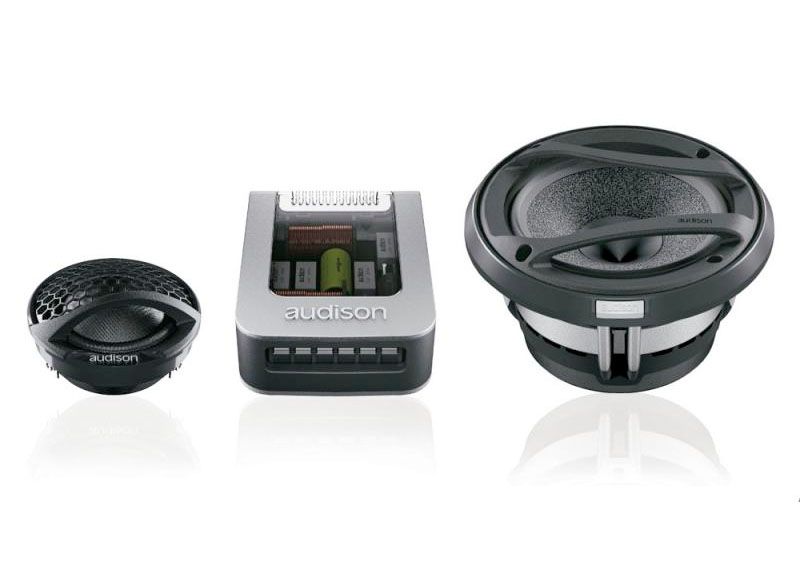

xAudison Voce AVK5 5 Inch Component Speakers
The Voce AV K5 component speakers, developed by Audison, was honored with the prestigious Eisa Award for "European In-Car Speaker System 2010-2011." These component speakers embody the culmination of Audison's advanced technologies and extensive research and development efforts, all dedicated to delivering an exceptional musical experience.
With a focus on achieving the utmost sound quality, these components were meticulously designed, leveraging the expertise of the entire R&D laboratory. The result is a harmonious synergy that excels in offering unparalleled performance in terms of wide frequency response, dynamic range, natural sound reproduction, and intricate detailing.
Tweeter
- Tetolon ® dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
- CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
- The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
- High flux density Neodymium REN ® magnet, for very high efficiency and detailed sound.
Woofer
- The profile of the aerodynamic basket’s spokes along with the “open-air” design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with “Light Damping” treatment.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
Specifications
|
Component |
2-way System |
|
Size mm (inch) |
AV 5.0 Woofer: 130mm (5” ¼) AV 1.1 Tweeter: 28mm (1” 1/8) |
|
Power Handling W |
Peak: 200 watts Continuous: 100 watts |
|
Impedance |
4Ω |
|
Frequency Response |
60 ÷ 22k Hz |
|
Sensitivity dB/SPL |
90 |
|
Crossover included Lo/Hi-Pass |
2.5 kHz @ 12/12 dB/Oct. |
|
Component adjustment Tweeter |
+2; 0; -2 dB |
|
Magnet size - Woofer mm D x d x h (inch) |
90 x 32 x 15 (3” 9/16 x 1” 1/4 x 9/16”) |
|
Magnet size - Tweeter mm D x h (inch) |
28 x 3 (1” 1/8 x 1/8”) |
|
Weight of one component kg (lb) |
Woofer: 1,12 (2,47) Tweeter: 0,07 (0,16) |
|
Voice Coil Ø mm (inch) |
Woofer: 25 (1”) Tweeter: 28 (1”1/8 ) |
