Description

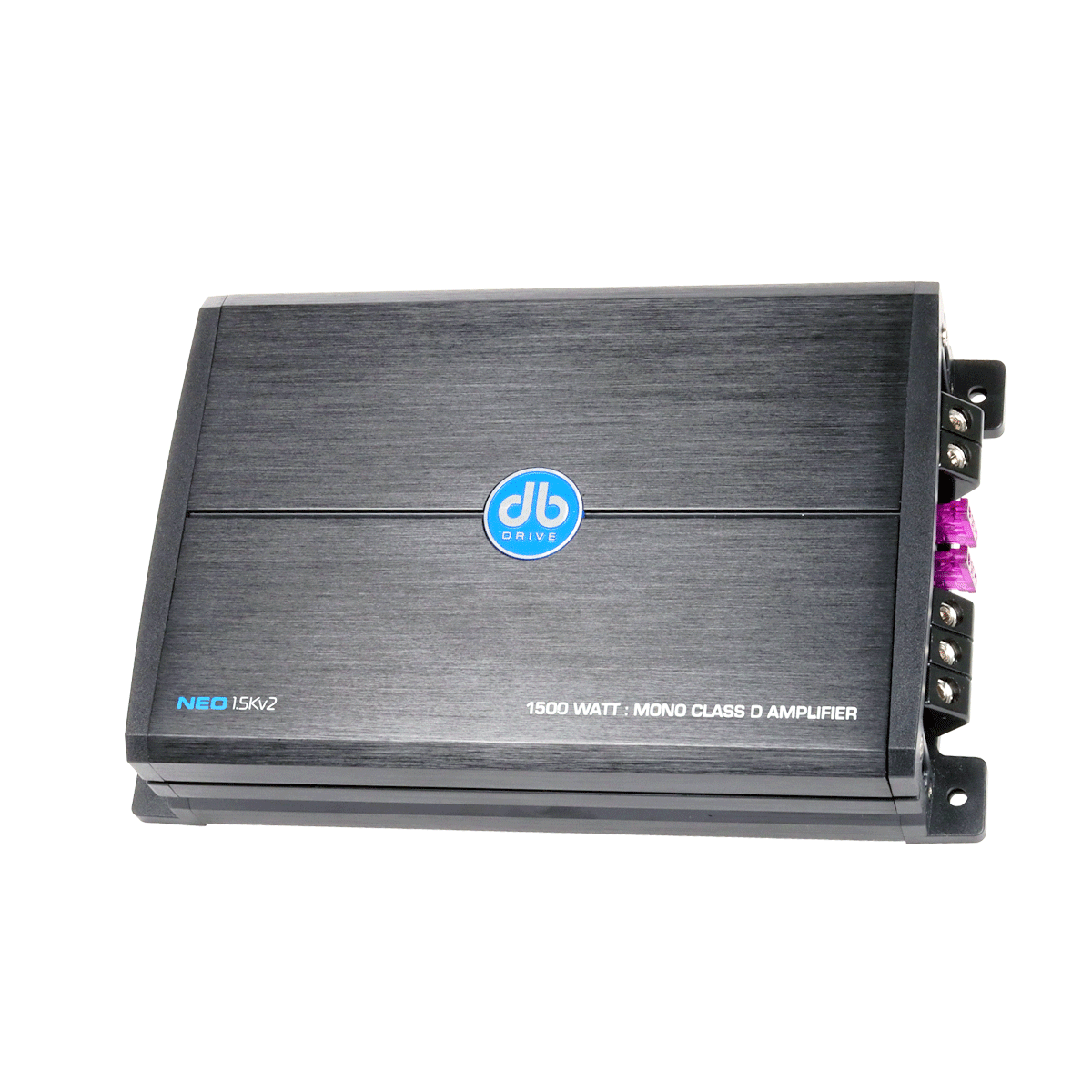

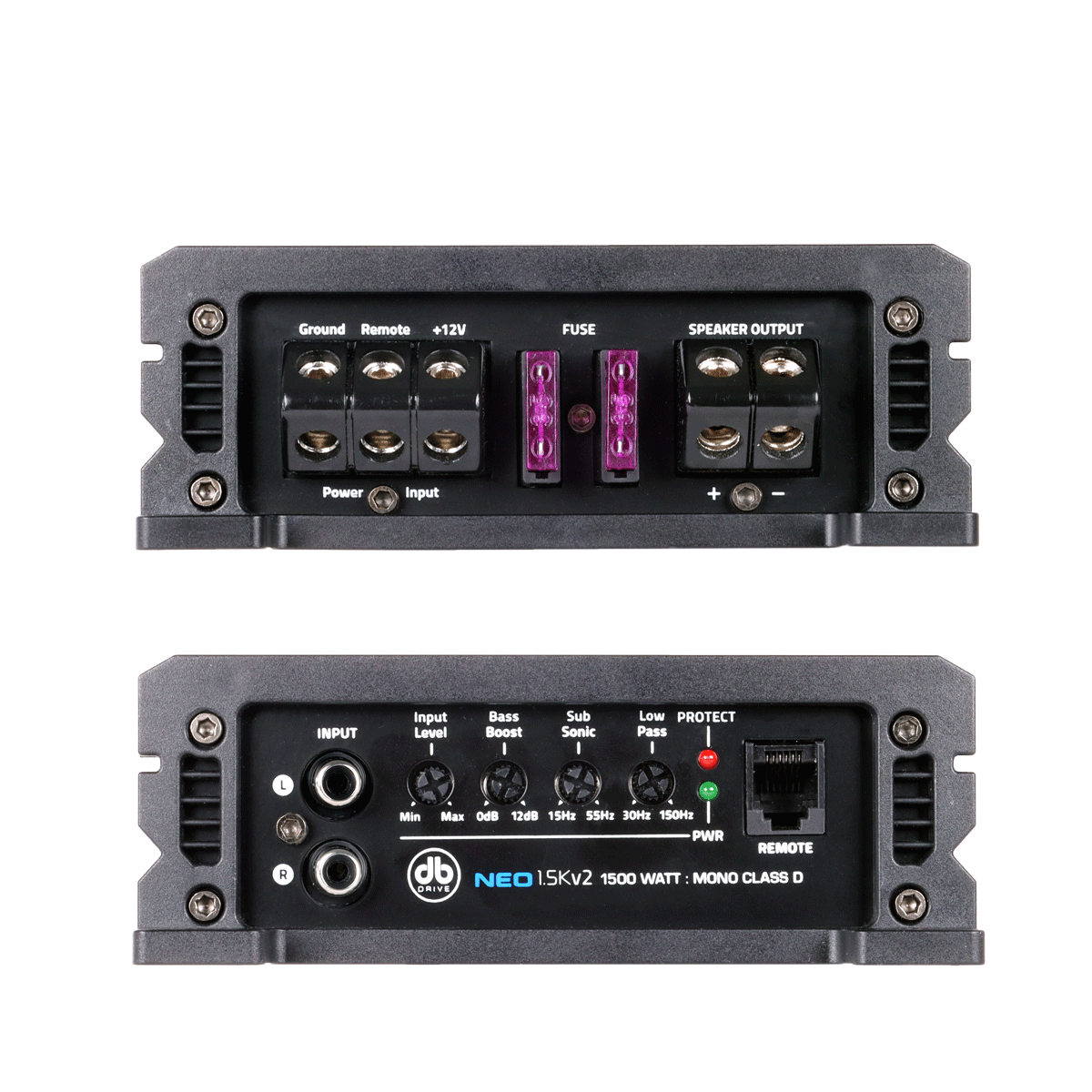

xThe NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.
- Mono Class D Technology
- 1Ω Mono load Capability
- Amphibious grade conformal coating on PCB
- Audiophile Grade RCA connectors
- Variable Low-pass crossover filter
- Variable Sub-sonic Filter
- Remote Dash Bass Control Included
- Double Sided Circuit tablet
- Compatible with any 1Ω Subwoofer load
Specifications
| Rated Power @ 14.4 Volts | Â |
| Dynamic Power Handling | 1 x 750 Watts @ 1Ω |
|  | 1 x 350 Watts @ 2Ω |
| THD (100Hz @ 1Ω) | 0.04% |
| Bandwidth (-3 dB) | 18Hz ~ 22KHz |
| Damping Factor (1KHz @ 4Ω) | 126 |
| S/N ratio (as weighted @ 1 Volt) | 99db |
| Input Sensitivity | 0.20V ~ 9.0V RMS |
| Minimum Load Impedance | 1Ω |
| Input | Pre in RCA |
| Mono Low Pass filter slope | 12dB |
| Low Pass filter range | 30Hz ~ 150Hz |
| Sub Sonic Filter slope | 12dB |
| Sub Sonic Filter Range | 15Hz ~ 55Hz |
| Length | 7.6″ / (195mm) |
| Width | 5.3″ / (135mm) |
| Height | 1.88″ / (48mm) |
Â
For more information, please visit the manufacturer's website.
