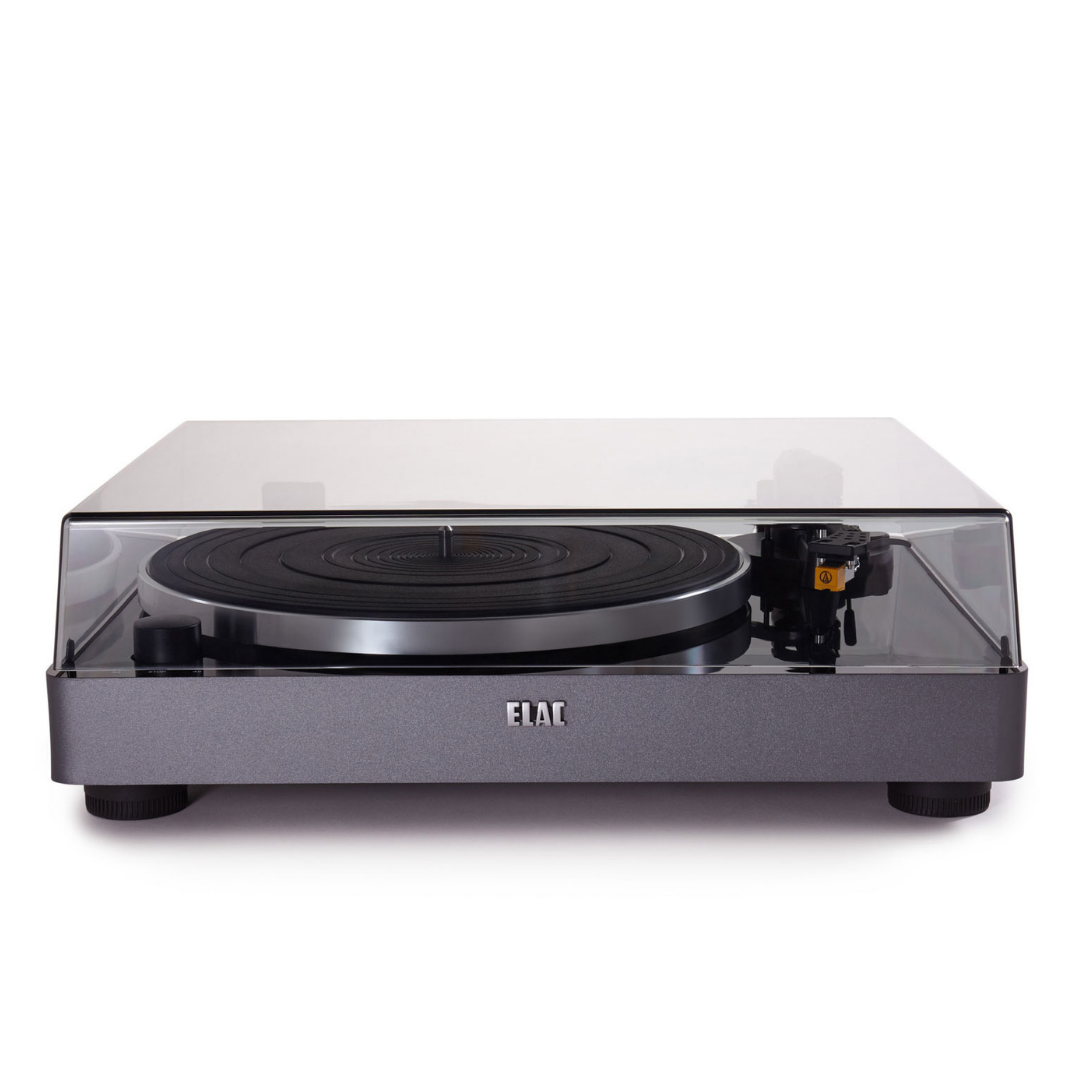

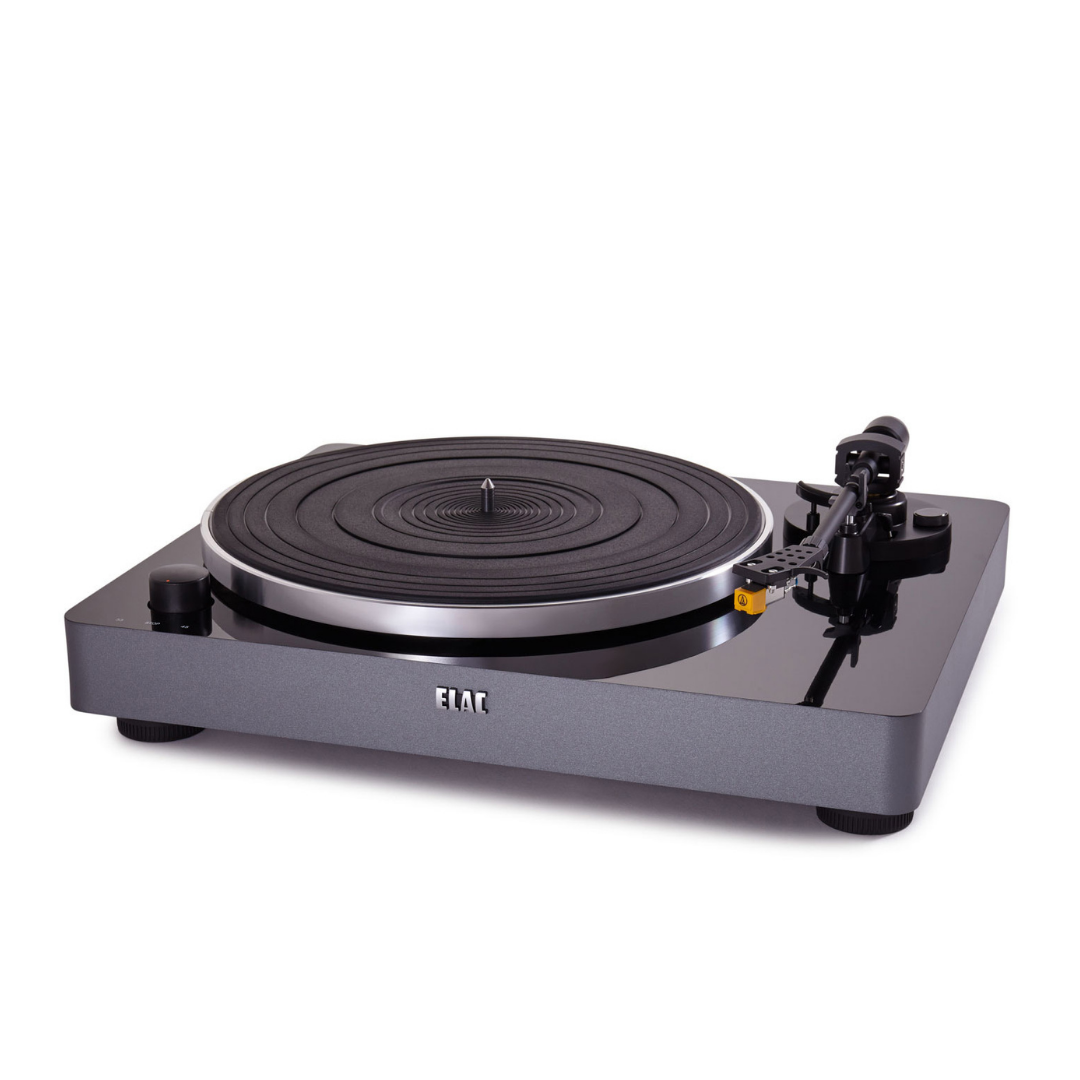

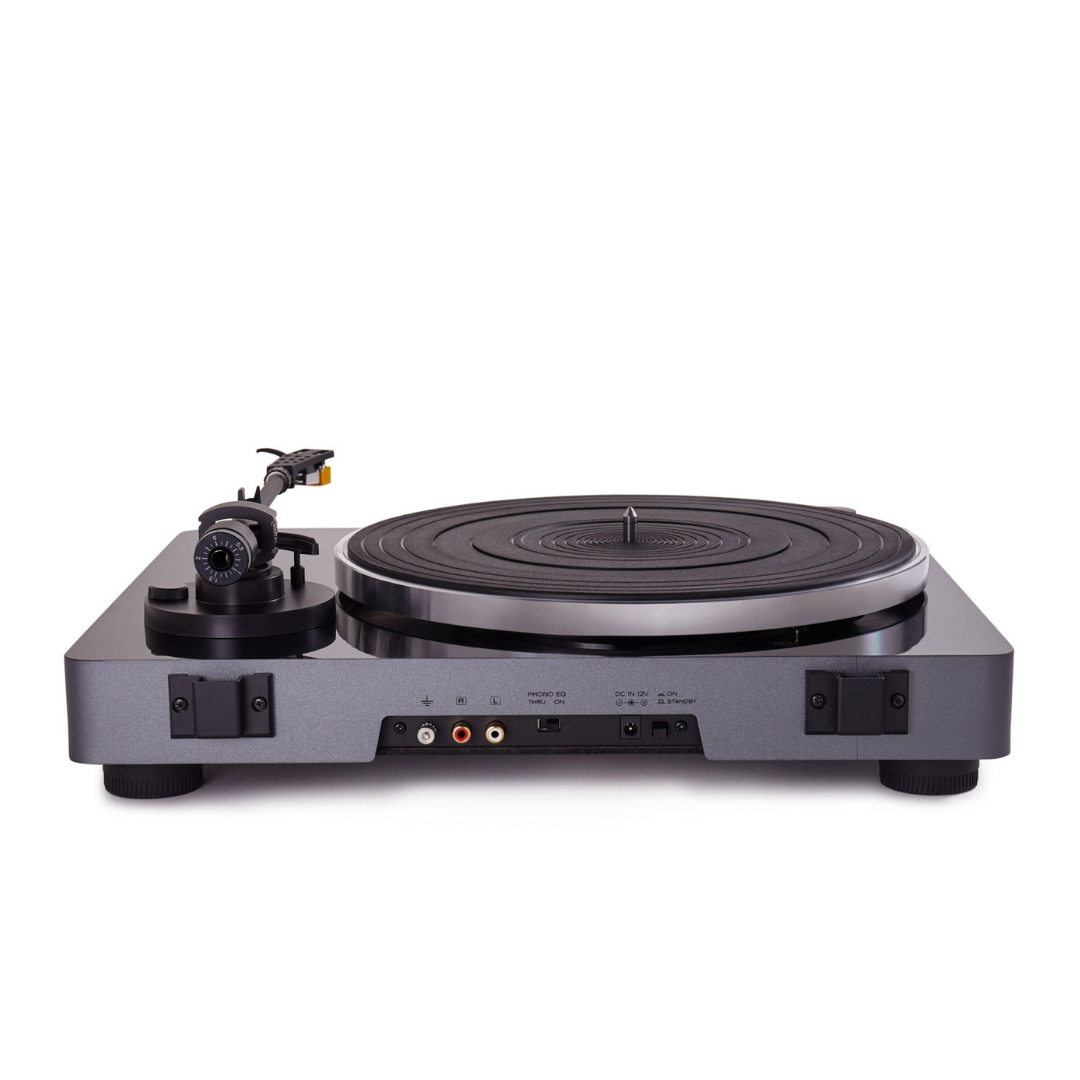

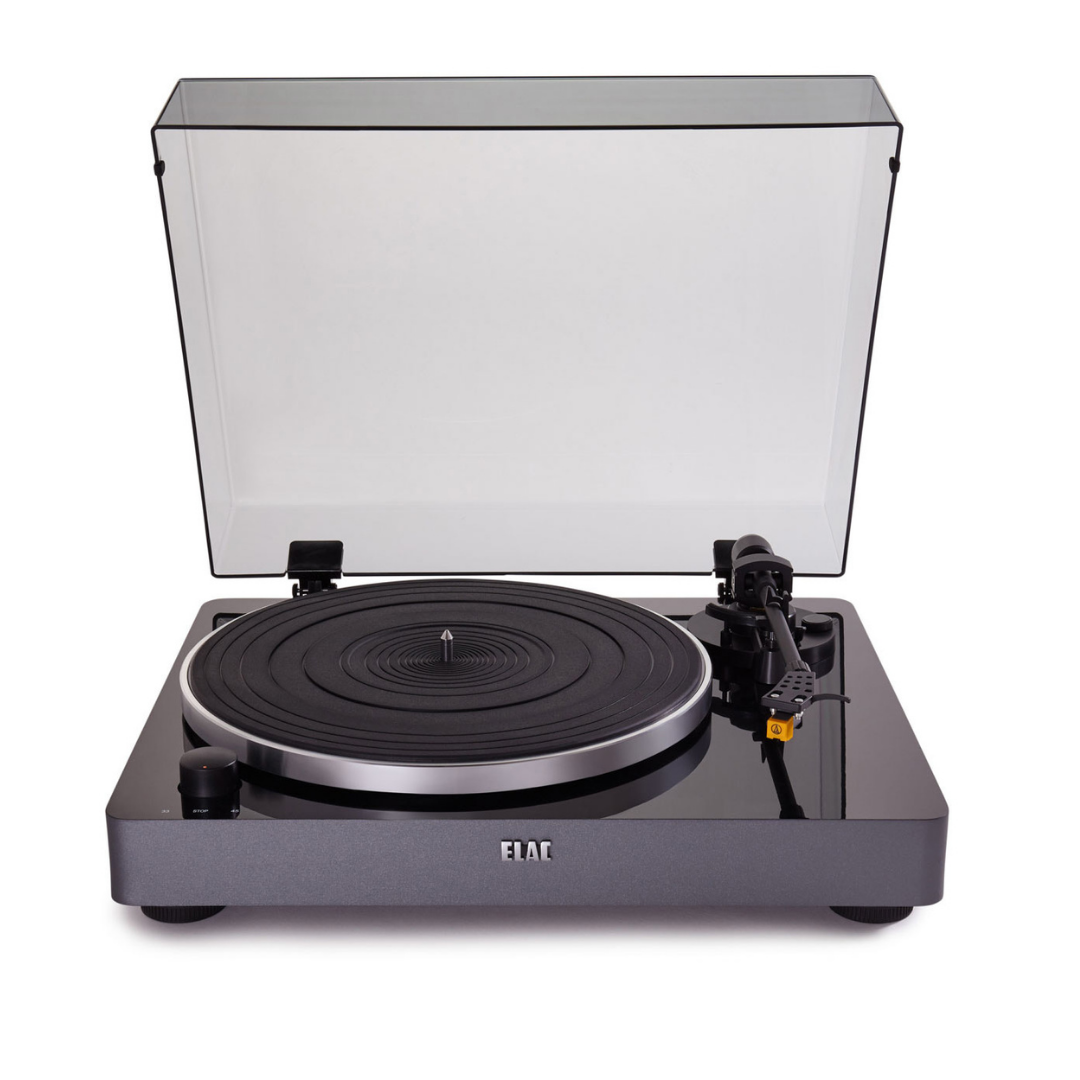

xElac Miracord 50 Turntable
ELAC’s Miracord 50 Turntable is designed to deliver exceptional vinyl transcription, inspired by the iconic Miracord name from the Golden Age of Stereo, when turntables reigned supreme. The Miracord 50 is carefully engineered with a belt-drive motor and die-cast aluminum platter. A precision static balanced, straight-tube tonearm with removable headshell features a factory-mounted MM phono cartridge. Designed with convenience in mind, the Miracord 50 is equipped with a built-in defeatable phono preamplifier, allowing you to add this turntable to virtually any music system.
Anti-resonant chassis
Superior isolation is achieved with a chassis designed to minimize the sonic effects of vibration and feedback.
Built-in phono equalizer amplifier
Unlike most turntables, the Miracord 50 comes complete with a built-in phono preamp for correct RIAA equalization. Just plug it in and enjoy rich LP sound!
Precision tonearm and cartridge
The tonearm is a static-balance, straight- tube design with precision bearings, built-in anti-skate adjustment and removable bayonet-style headshell.
Specifications
|
Turntable Section |
|
|
Drive System |
Belt Drive |
|
Motor |
DC Motor |
|
Selectable Speeds |
33-1/3 and 45 RPM |
|
Motor Servo |
Speed Rotation and Servo System |
|
Rotation Speed Variation |
+/- 1% |
|
Wow and Flutter |
0.1% |
|
Signal-To-Noise Ratio |
-67 dB or higher (A-weighted) -60dB or higher (unweighted) |
|
Platter |
Aluminum die-cast |
|
Platter Diameter |
0 in / 300 mm |
|
Tonearm Section |
|
|
Type |
Aluminum tube, static-balanced |
|
Effective Arm Length |
8in / 223.6 mm |
|
Stylus Pressure Range |
0 to 4 g |
|
Cartridge Weight Range |
3.5 to 6g |
|
Effective Arm Mass |
27.4 g |
|
Overhang |
18.6 mm |
|
Offset Angle |
25 degrees |
|
Anti-Skating |
Adjustment Supported |
|
Main Bearing |
Stainless steel |
|
Cartridge Section |
|
|
Type |
Audio-Technica AT91 moving magnet |
|
Stylus Construction |
Bonded diamond |
|
Mount |
Half-inch |
|
Frequency Response |
20 Hz to 20 kHz |
|
Channel Separation |
>18 dB |
|
Channel Balance |
2.5 dB |
|
Vertical Tracking |
Angle 20 degrees |
|
Stylus Pressure |
2.0 g +/-0.5 g |
|
Cartridge Weight |
5.0 g +/-0.5 g |
|
Stylus Pressure |
2.0 g +/-0.5 g |
|
Headshell Weight |
0 g (including screws, nuts and wires) |
|
Phono Equalizer Amplifier |
|
|
Type |
Moving magnet (MM) |
|
Phono Output |
2.5 mV (1 kHz, 3.54 cm/sec) |
|
Line Output |
140 mV (-17 dBV) |
|
Phono/Line |
Switchable |
|
Supported Load Impedance |
47 kΩ |
|
General |
|
|
Connector |
RCA pin jack including RCA cable accessories |
|
Voltage |
100 to 240 V AC / 50 to 60 Hz |
|
Power Consumption |
1.5 W (less than 0.5 W at standby) |
|
Dimensions |
(WXHXD) 5.5 x 16.05 x 14.20 |
|
Weight |
12.10 lb |
For more information, please visit the manufacturer's website.
