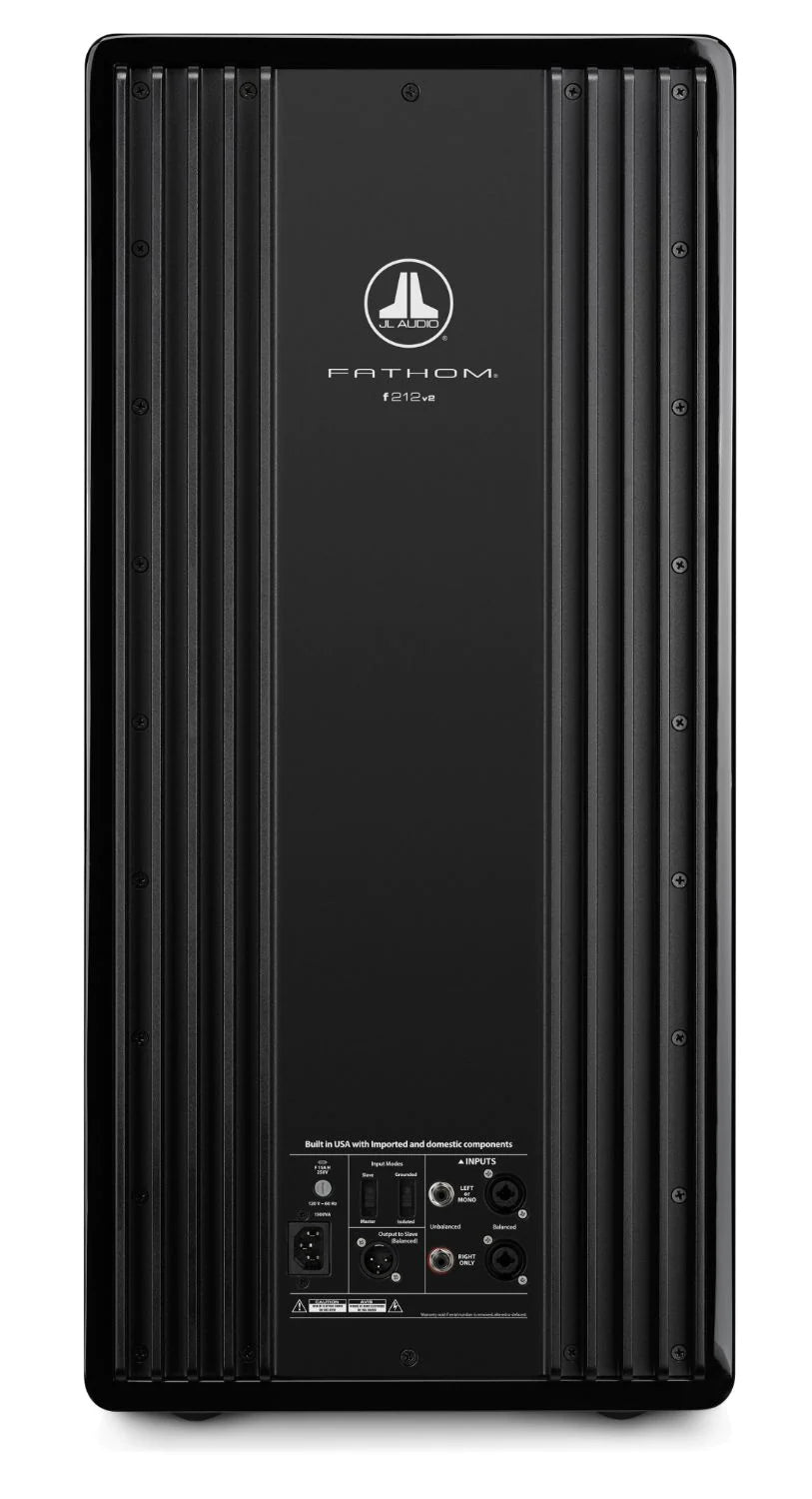

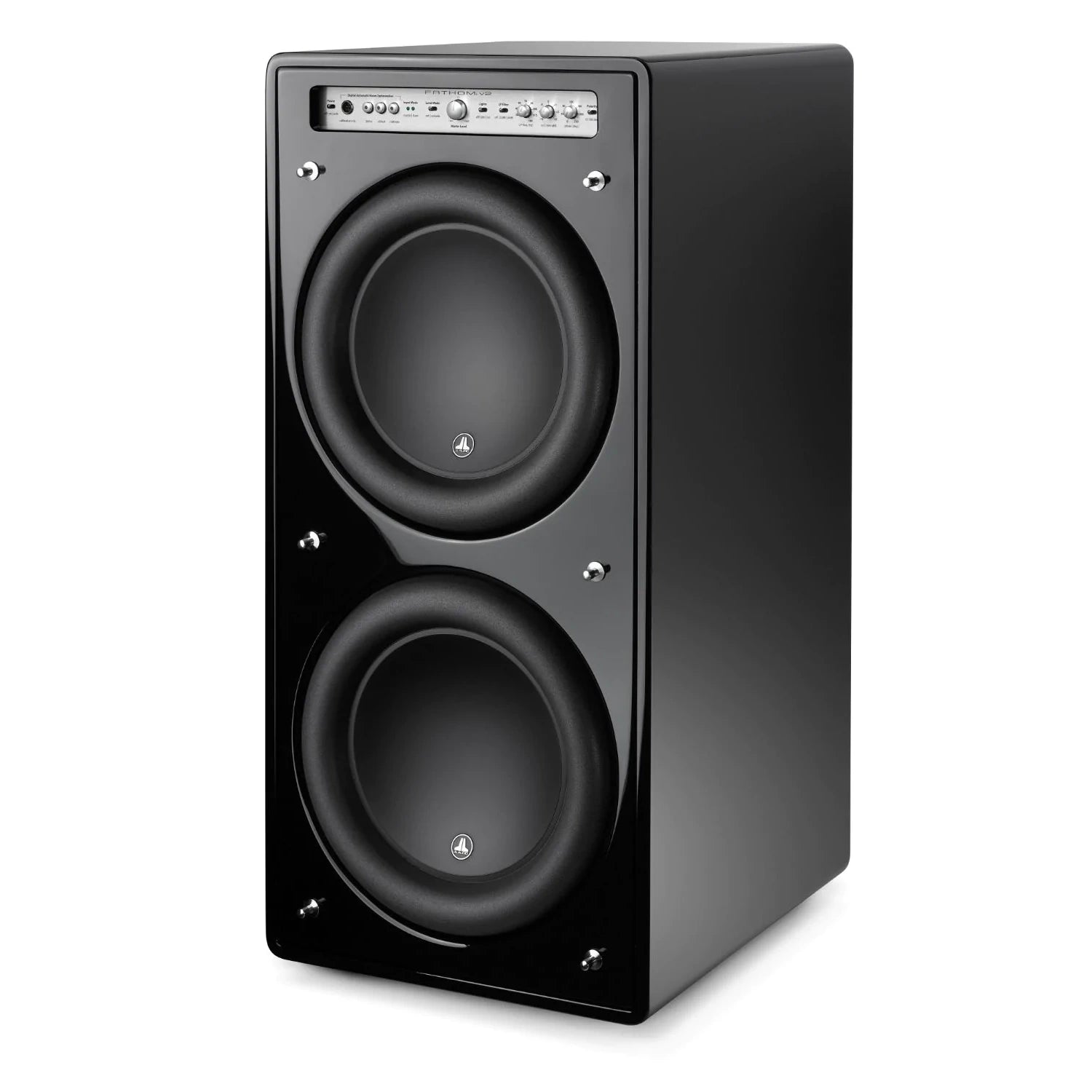

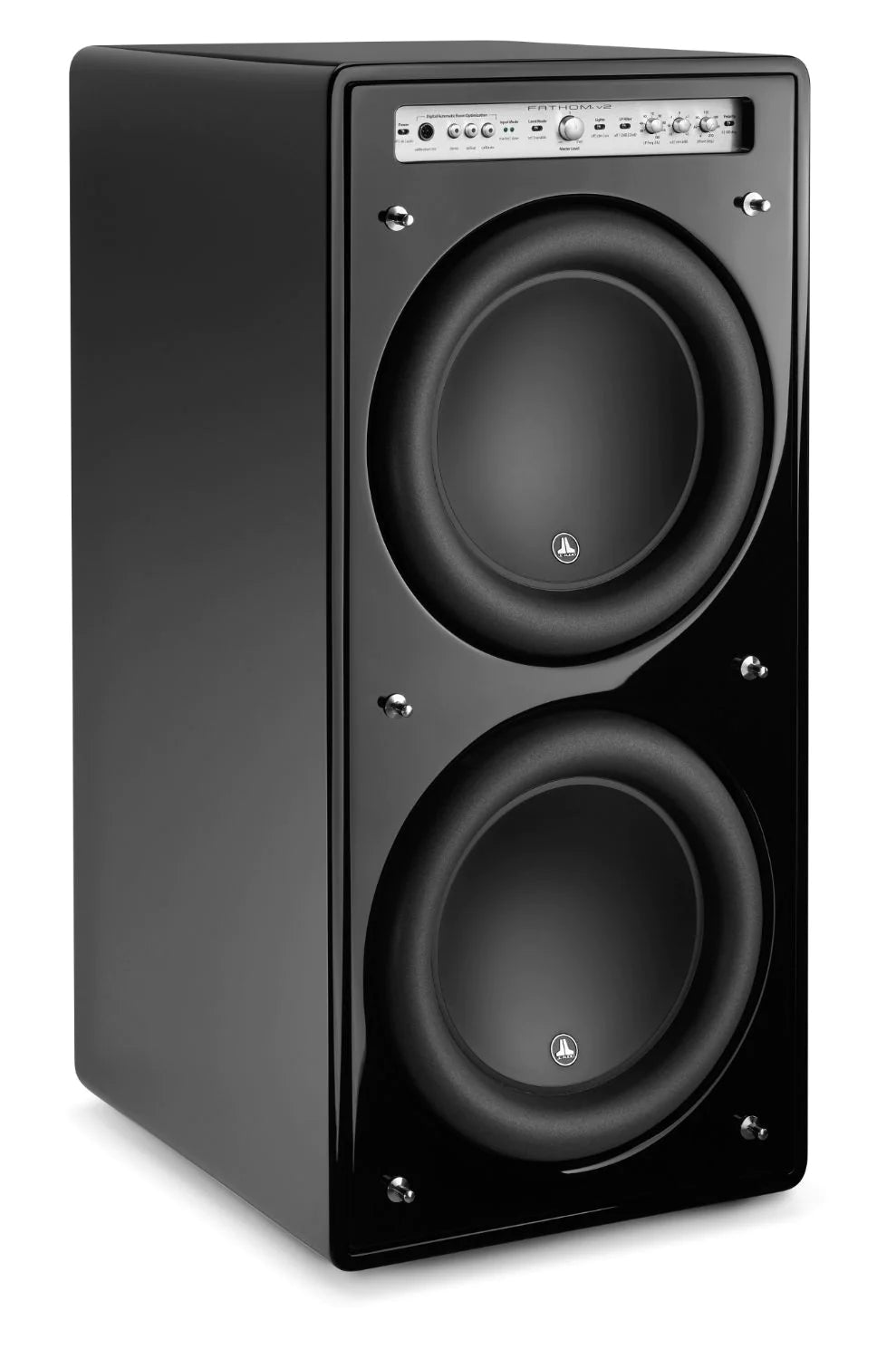

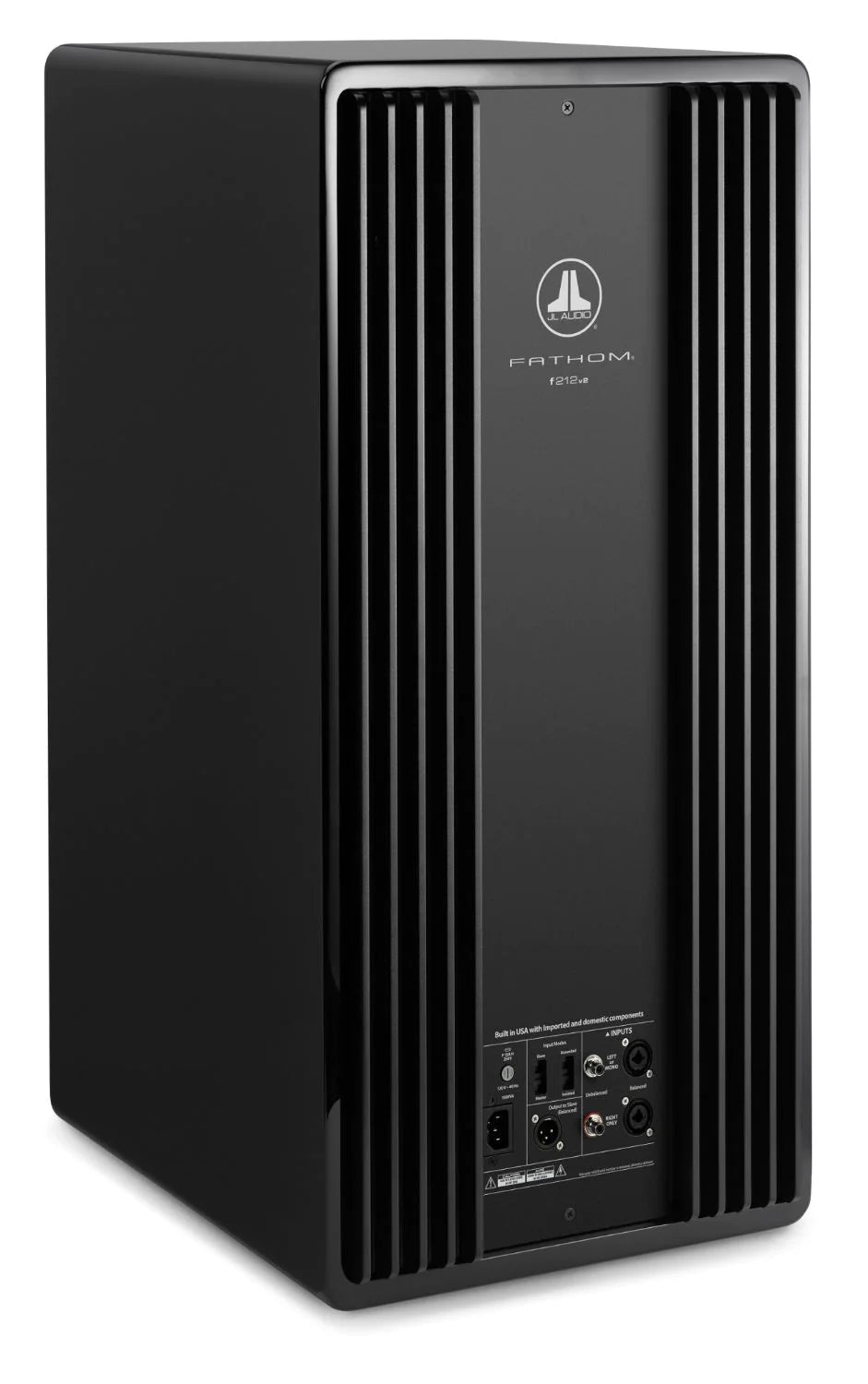

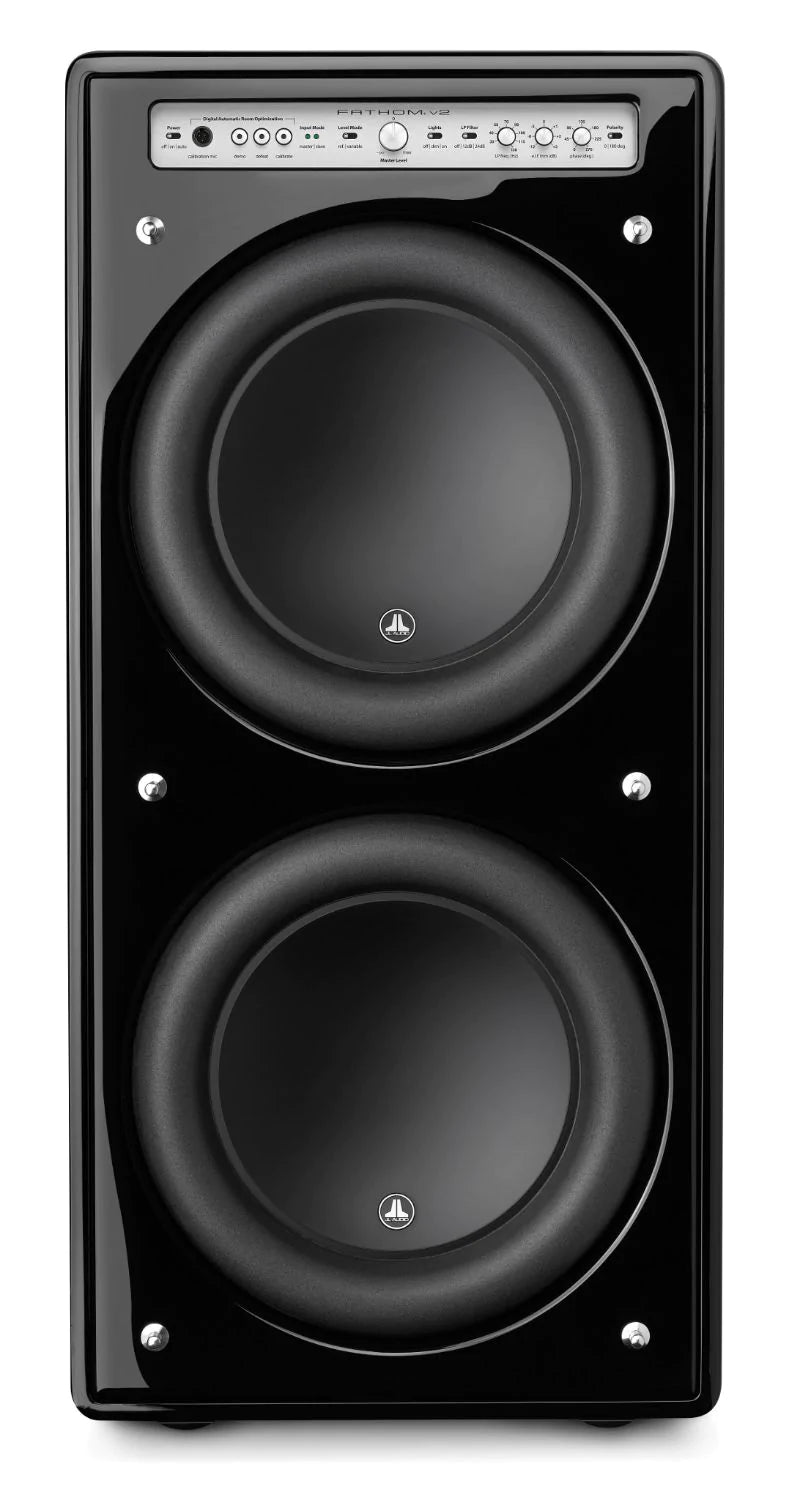

JL AUDIO Powered Dual 12-inch Subwoofers 3600 watts Black Gloss
The f212v2 is the ultimate expression of the Fathom formula. It is ideal for larger spaces thanks to its higher efficiency and higher power output. The combination of dual ultra-long throw W7 12-inch drivers and a very powerful switching amplifier give it jaw-dropping performance capabilities at any listening level.
Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f212v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.
A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
Finish: Gloss Black

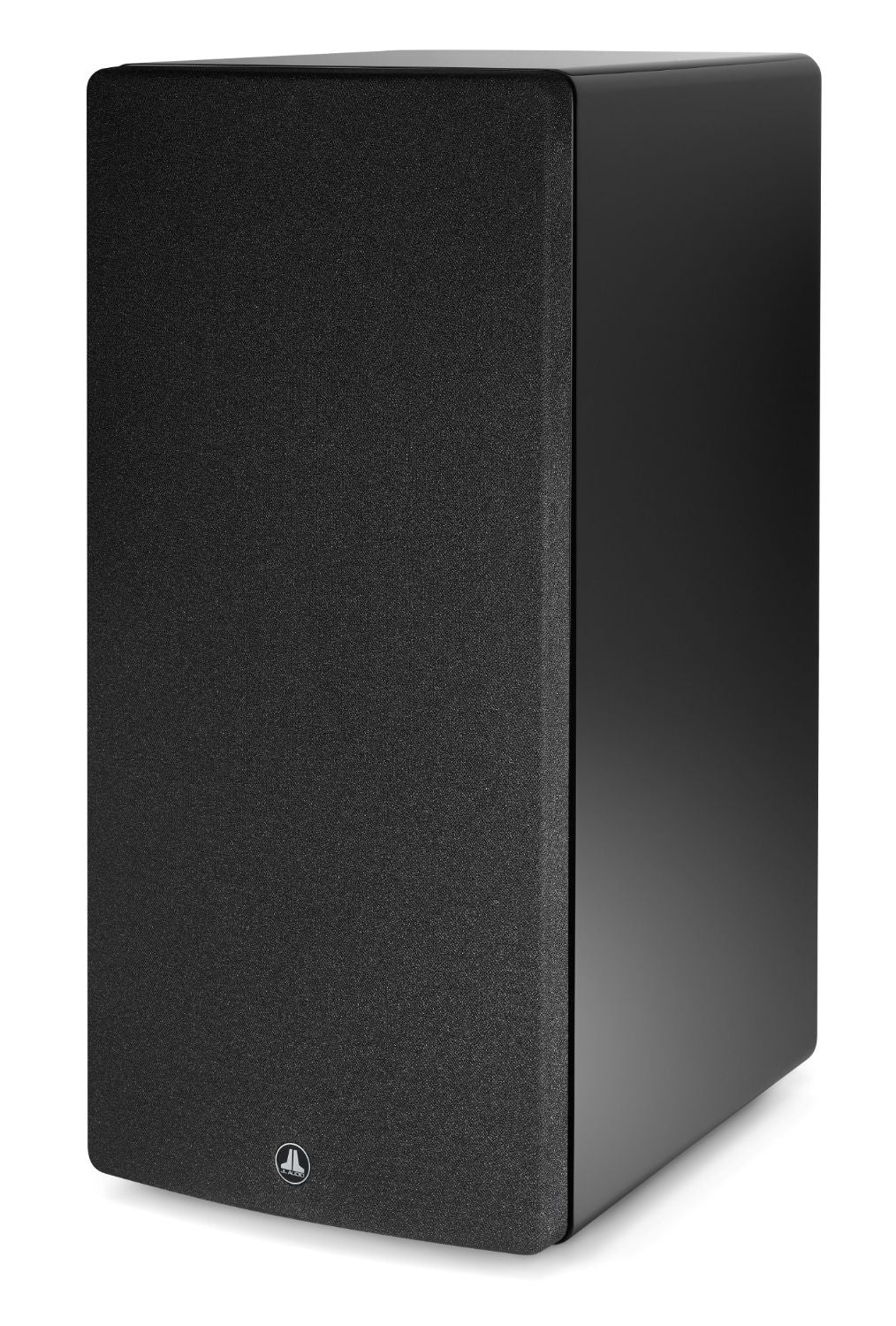

Grille finish: Black fabric
Enclosure Construction: MDF
Specifications
|
General Specifications |
|
|
Enclosure Type |
Sealed |
|
Enclosure Finish |
Black Gloss |
|
Frequency Response (Anechoic) |
20 - 97 Hz (±1.5dB) -3 dB at 19 Hz / 110 Hz -10 dB at 15 Hz / 157 Hz |
|
Effective Piston Area (Sd) |
168 sq in / 0.1084 sq m |
|
Effective Displacement |
574 cu in / 9.4 L |
|
Amplifier Power |
3.6 kW RMS short-term |
|
Power Mode(s) |
Off, On or Automatic (Signal-Sensing) |
|
Light Modes |
Off, On or Dim |
|
Signal Processing |
|
|
Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
|
Balanced Inputs |
Stereo or Mono (two female XLR jacks) |
|
Speaker/High-Level Inputs |
N/A |
|
Input Grounding |
Isolated or Grounded |
|
Input Modes |
Master or Slave |
|
Level Control |
Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
|
Filter Mode(s) |
Low-Pass |
|
Filter Slope(s) |
12/24 dB/octave |
|
Filter Frequency Range |
30 Hz - 130 Hz |
|
Filter Defeat Function |
Yes |
|
Polarity |
0 or 180 degrees |
|
Phase |
Variable, 0 - 280 degrees |
|
Extreme Low Frequency (E.L.F.) Trim |
Variable, -12 dB to +3 dB at 25 Hz |
|
Line Outputs |
N/A |
|
Output to Slave |
Balanced (one male XLR jack) |
|
Calibration Mode |
Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone |
|
Width (W) |
14.92 in / 379 mm |
|
Height (H) |
31.96 in / 812 mm |
|
Depth (D) |
20.39 in / 518 mm |
|
Net Weight |
224 lb / 102 kg |
Â
For more information, please visit the manufacturer's website.
