Dual 13.5-inch In-wall subwoofers
Unique floating mount design
Rack-mountable, purpose-tuned amplifier
Amplifier Power: 2000 watts RMS
Able too fit a variety of 2" x 4" and 2" x 6" wall studs
Grille finish: Primer White (paintable)
Unique floating mount design
Rack-mountable, purpose-tuned amplifier
Amplifier Power: 2000 watts RMS
Able too fit a variety of 2" x 4" and 2" x 6" wall studs
Grille finish: Primer White (paintable)
$15 Flat rate shipping*
Description
xJL AUDIO In-Wall Subwoofer System with Dual 13.5-inch Subwoofer, 2000 watts

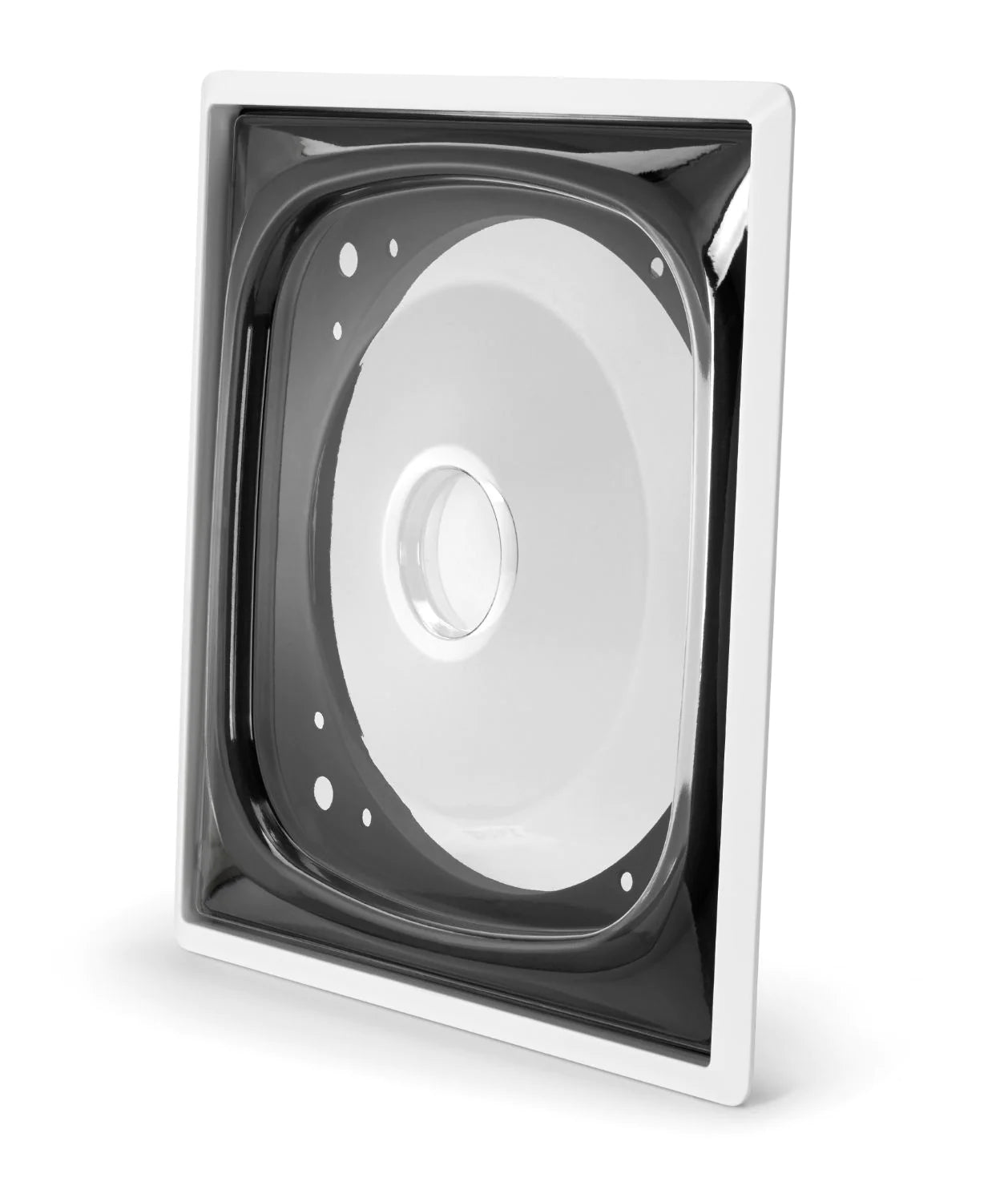

The same minds that engineered JL Audio’s reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, centered on a pair of innovative, thin-line drivers with groundbreaking technologies.

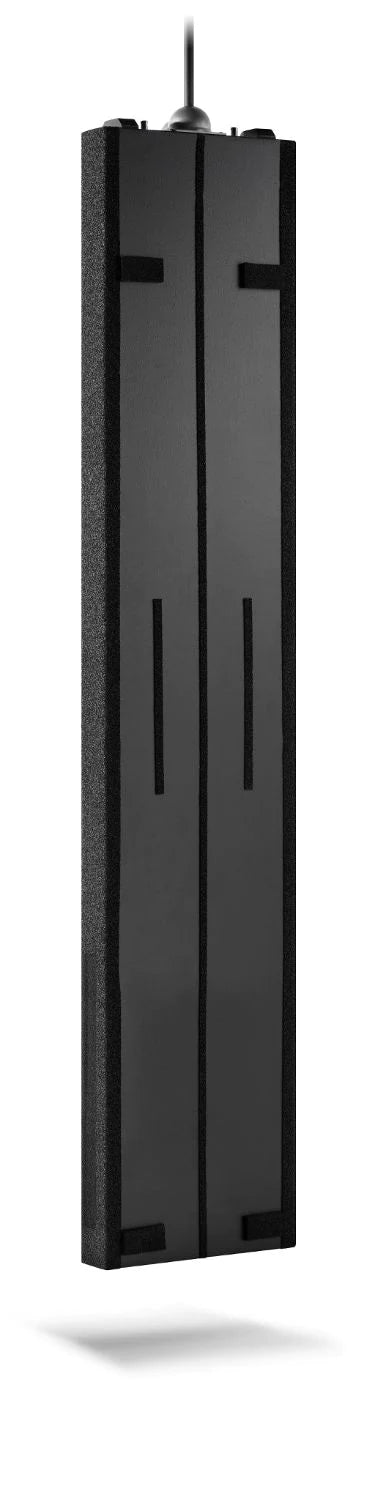

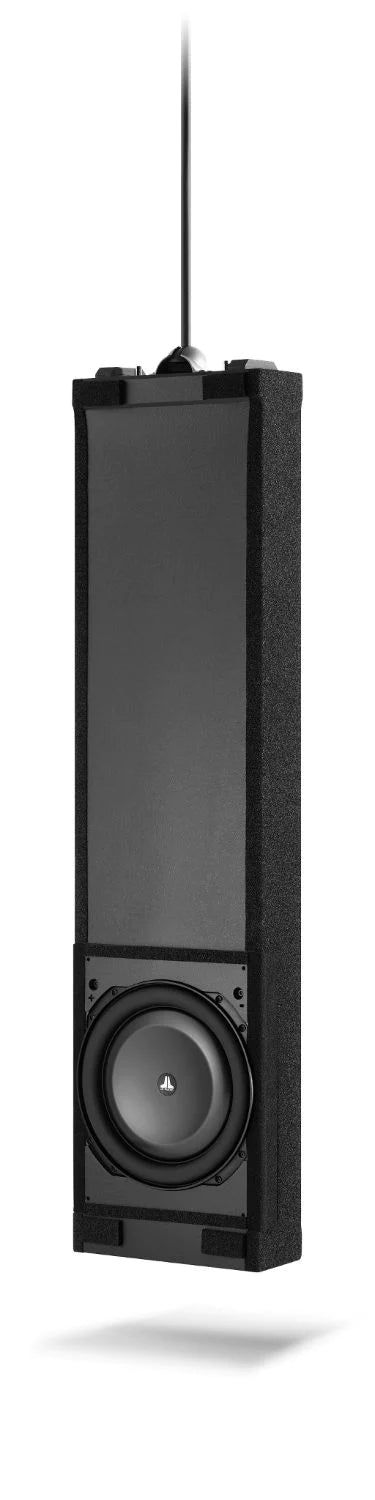

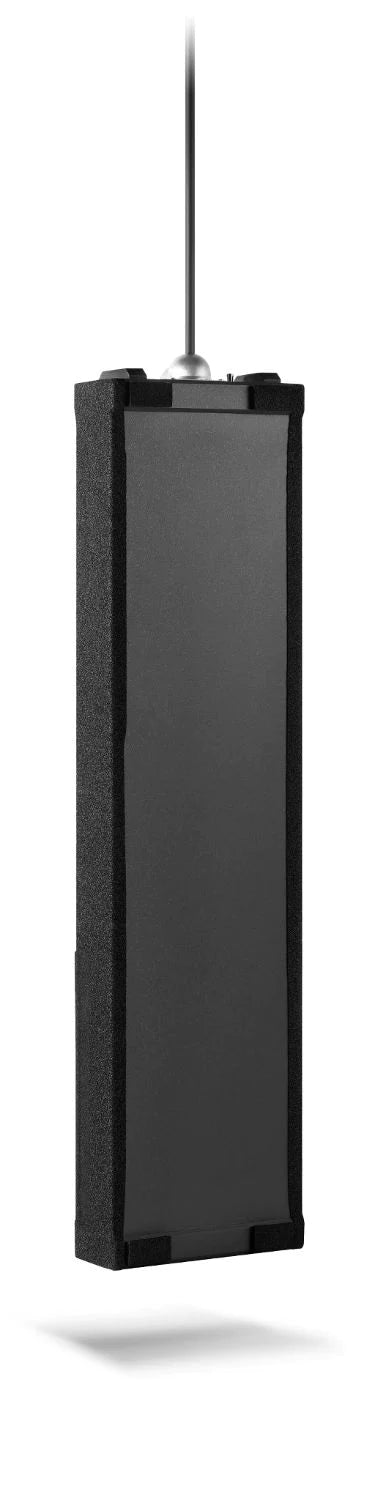

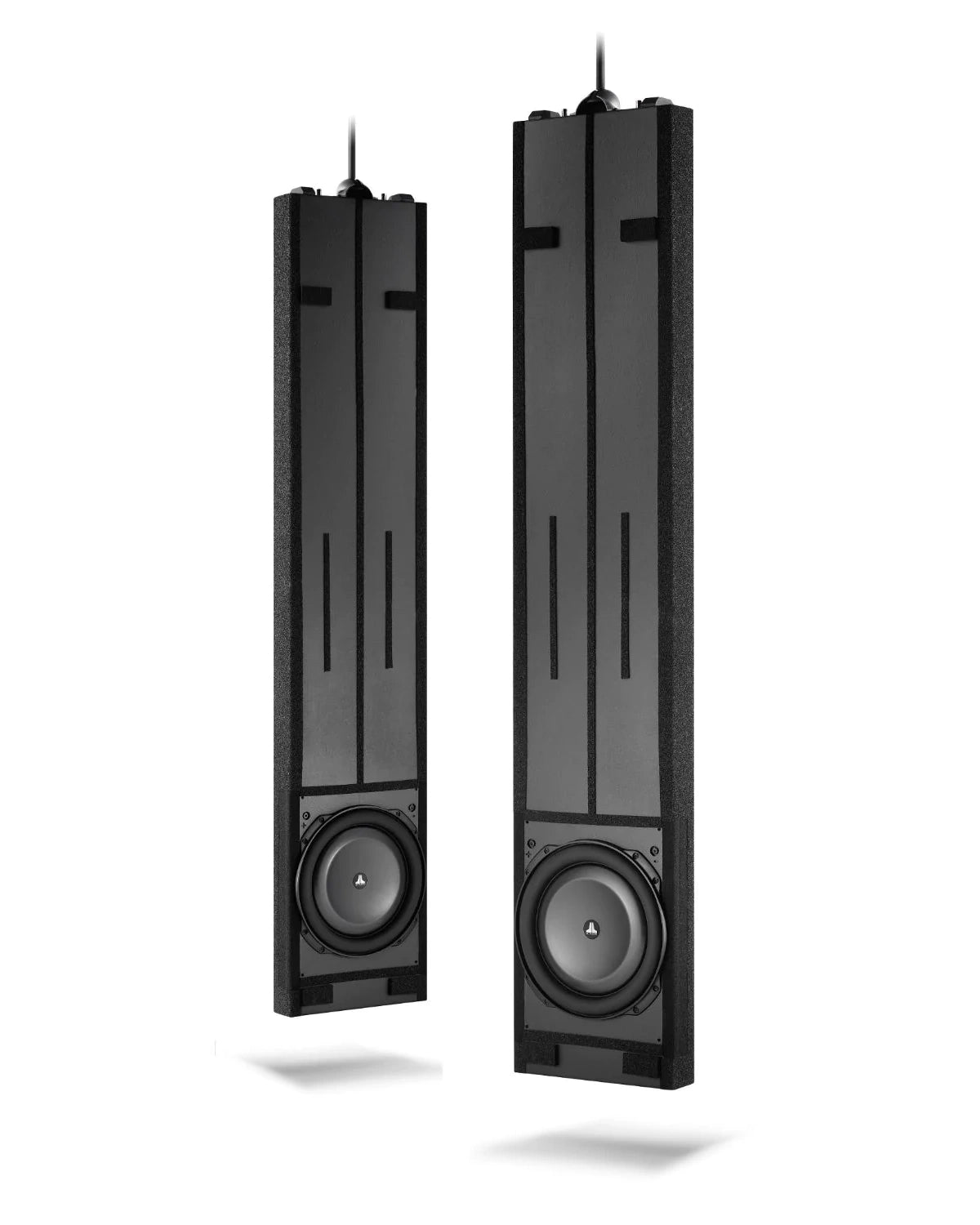

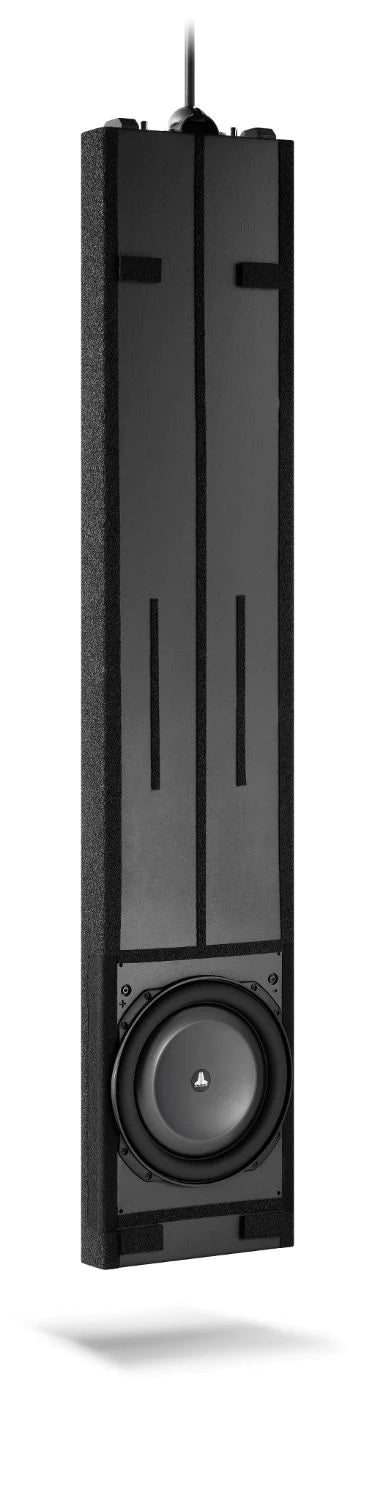

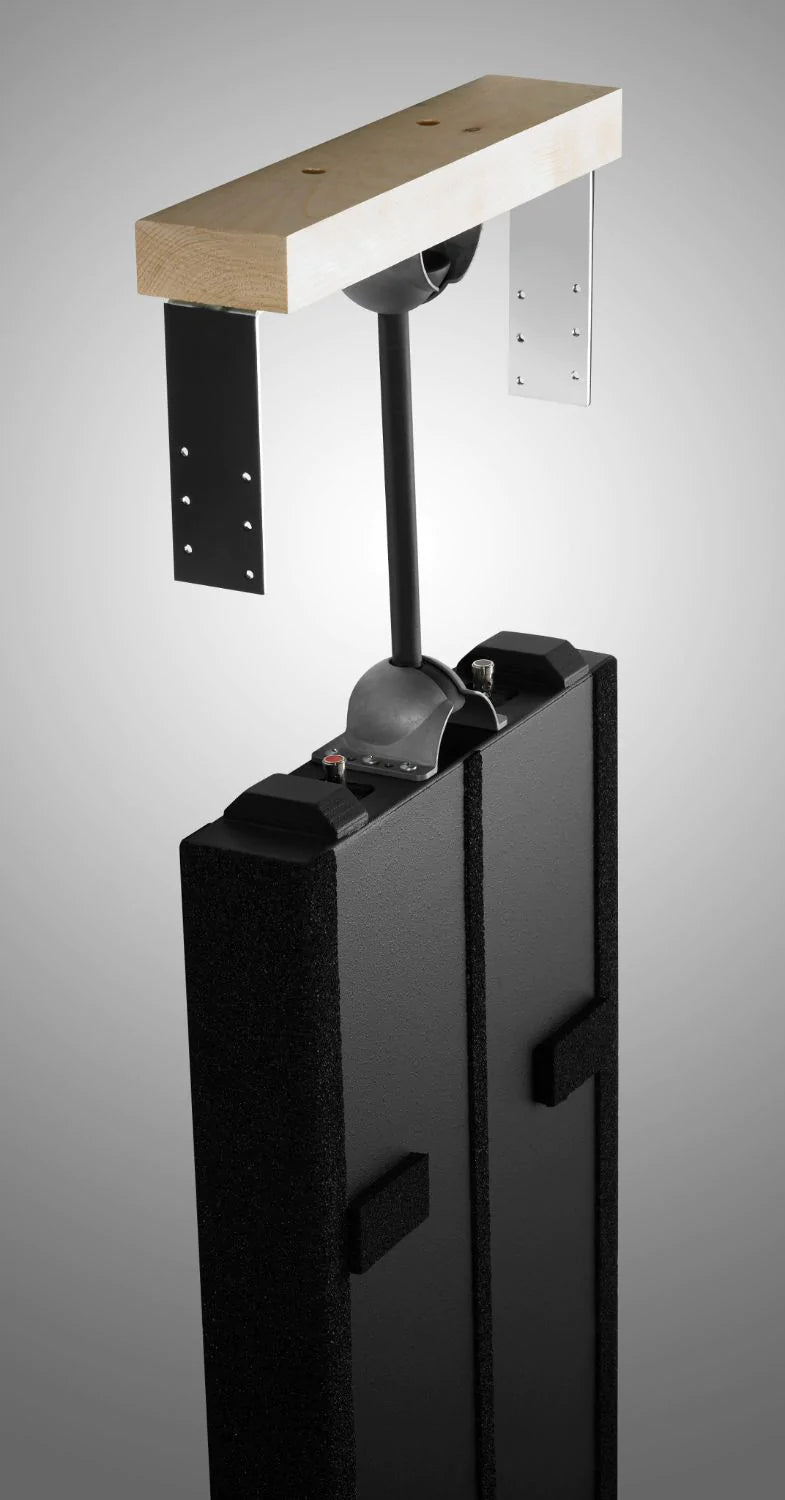

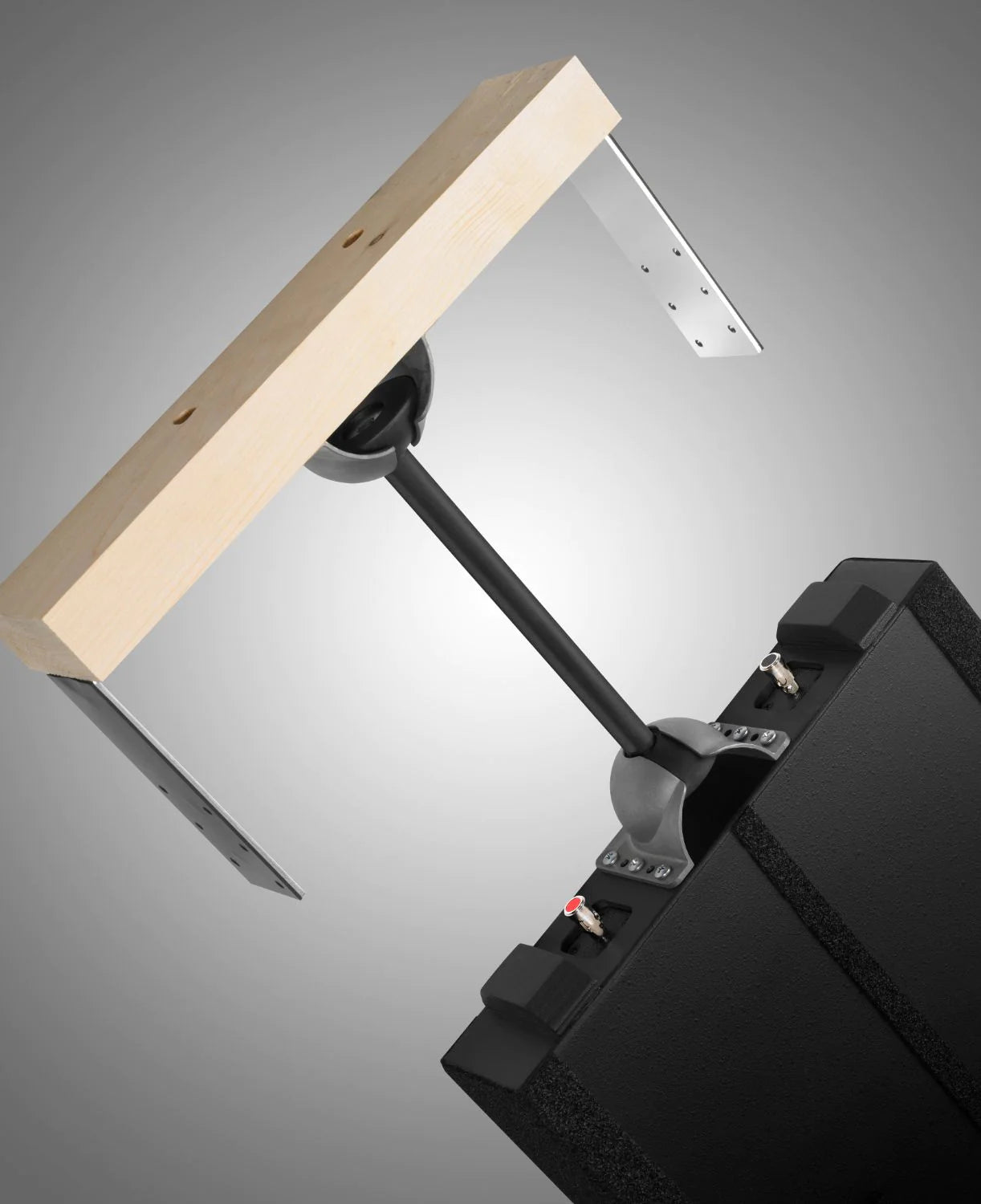

Housing these exotic drivers are two critically engineered enclosures with a unique floating mount design to minimize wall excitation. The enclosures feature extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

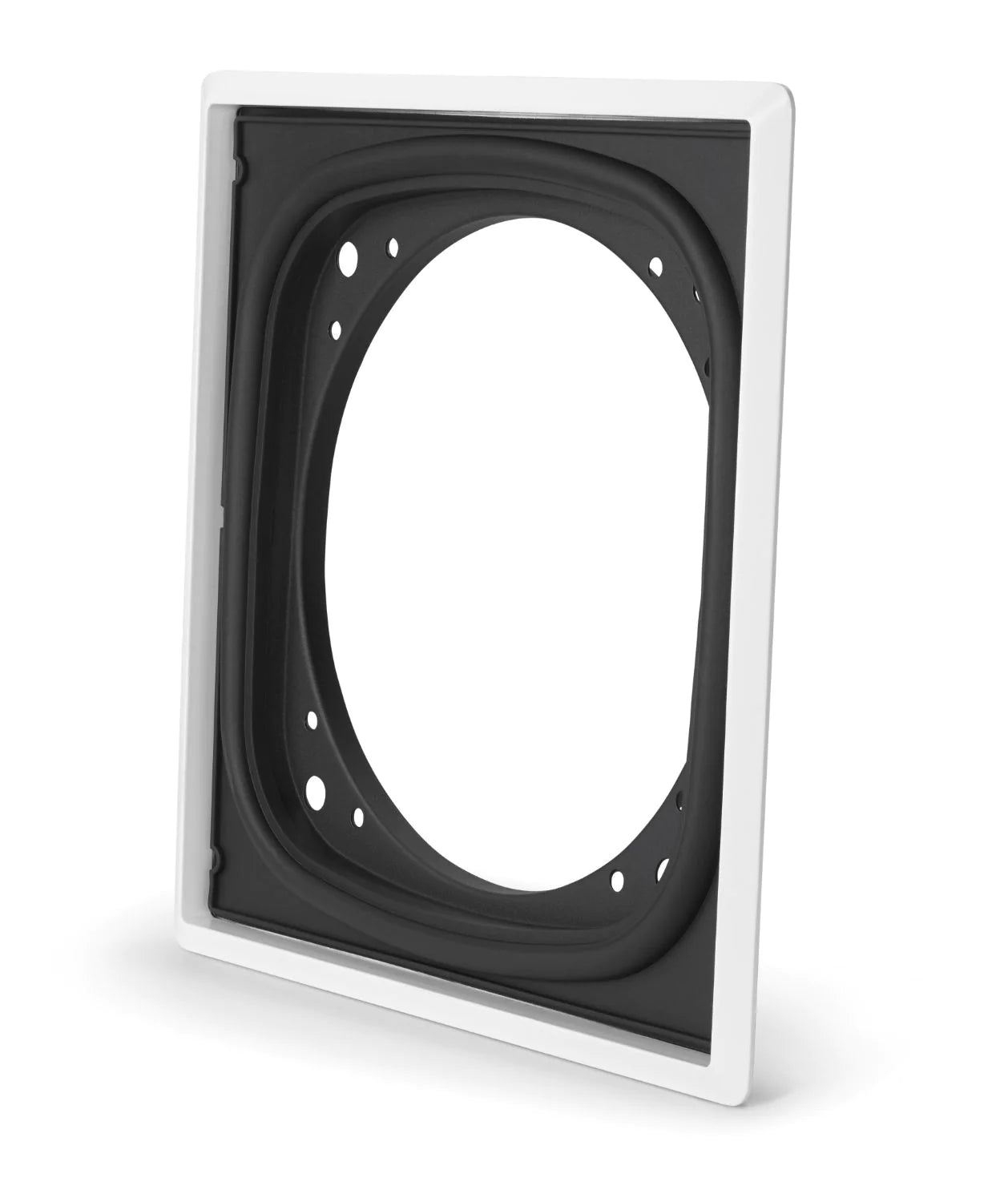

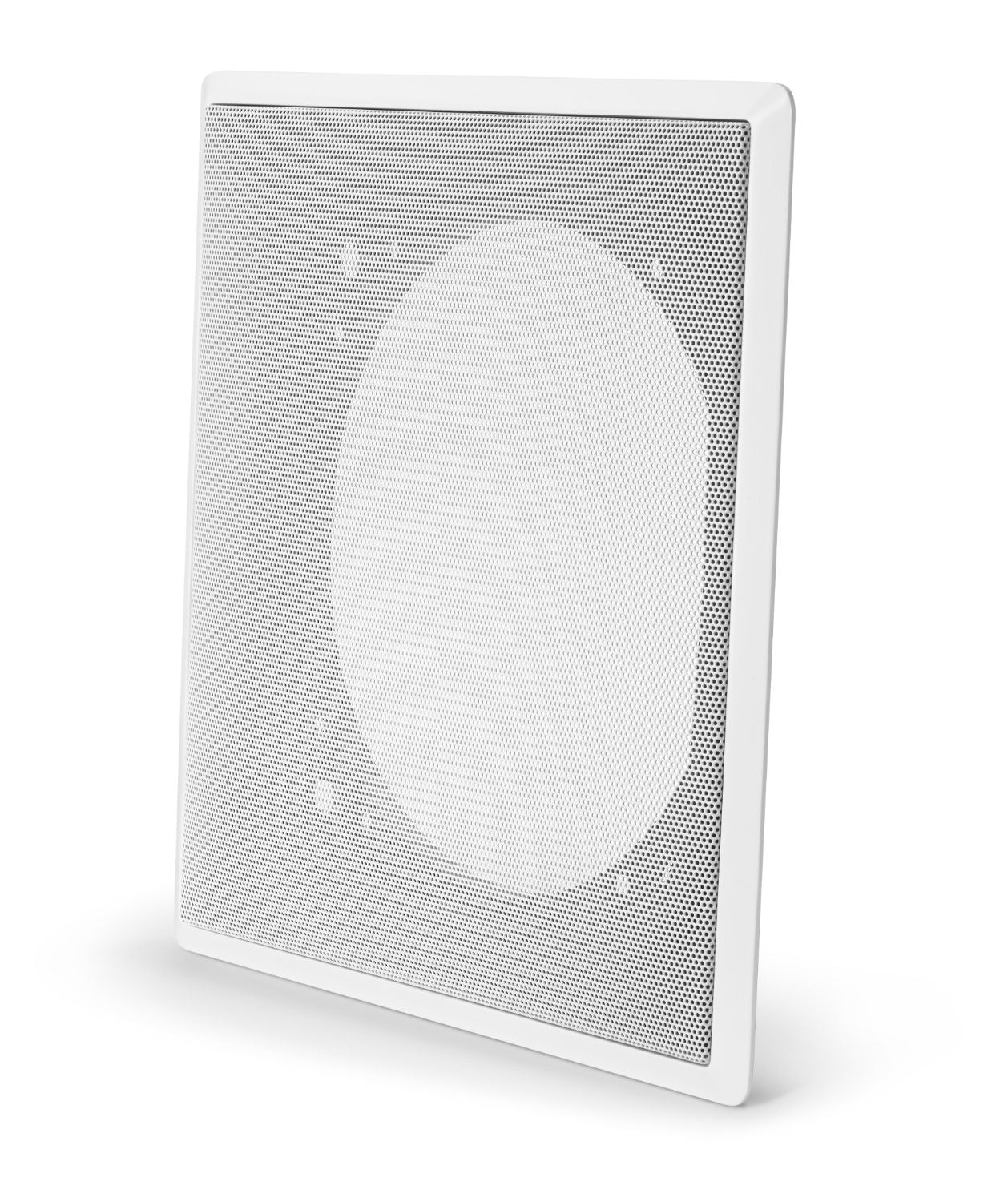

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in the system.

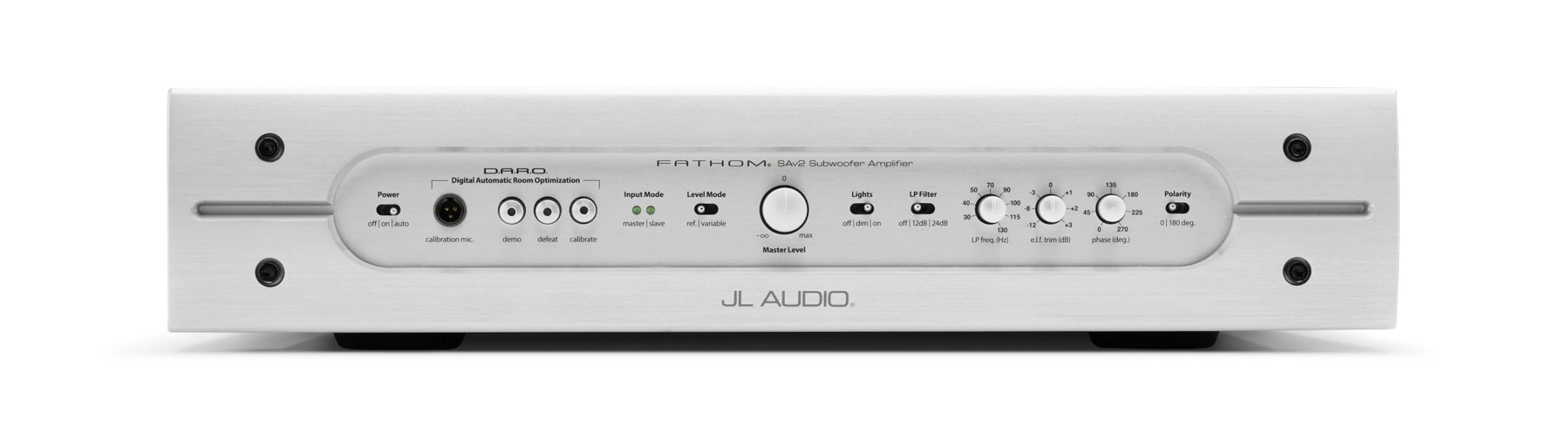

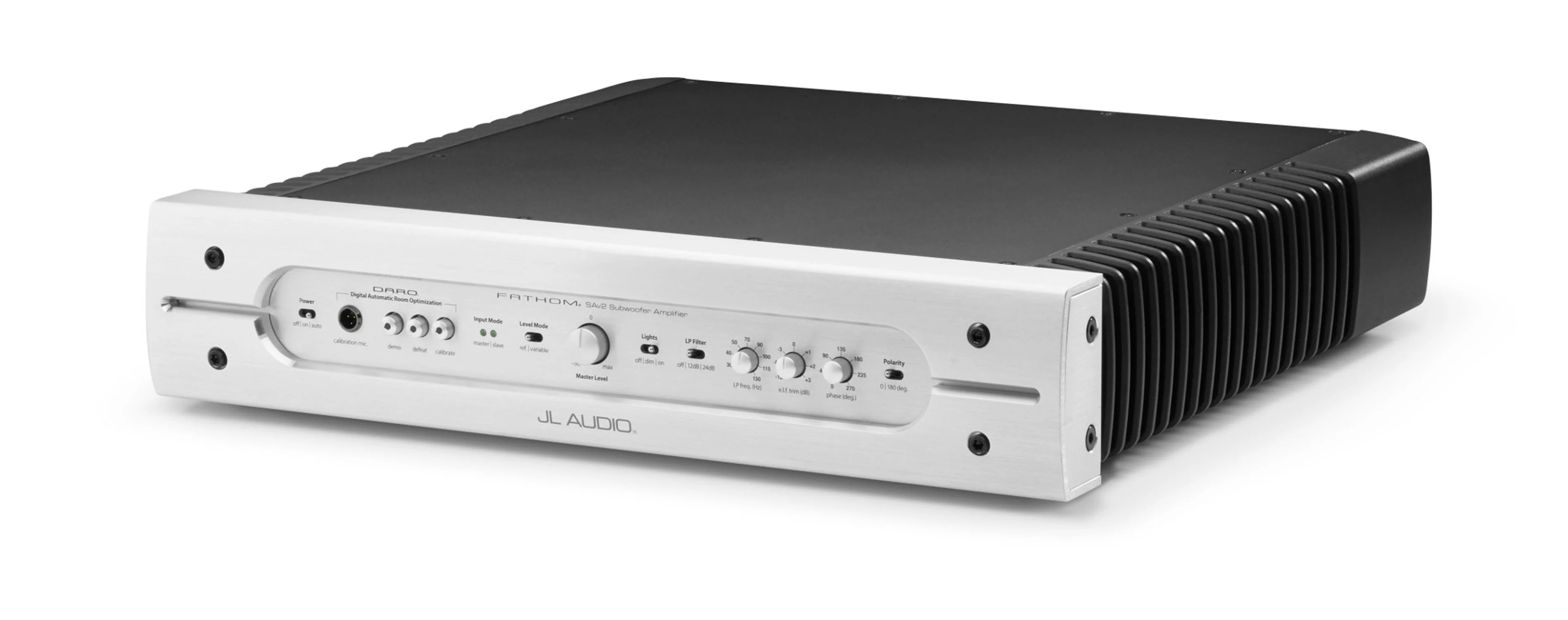

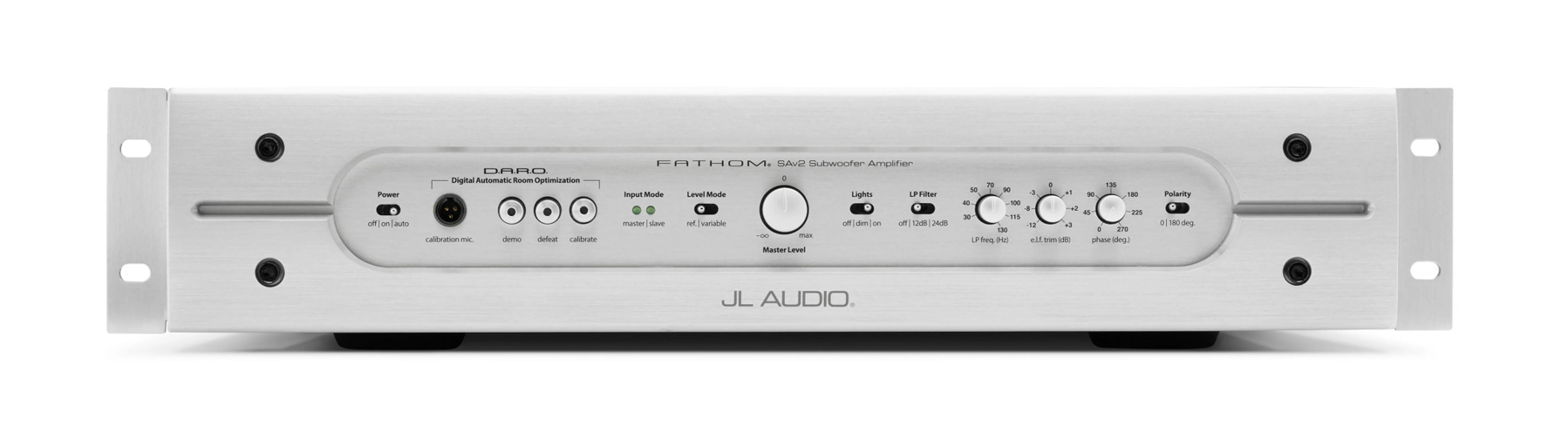

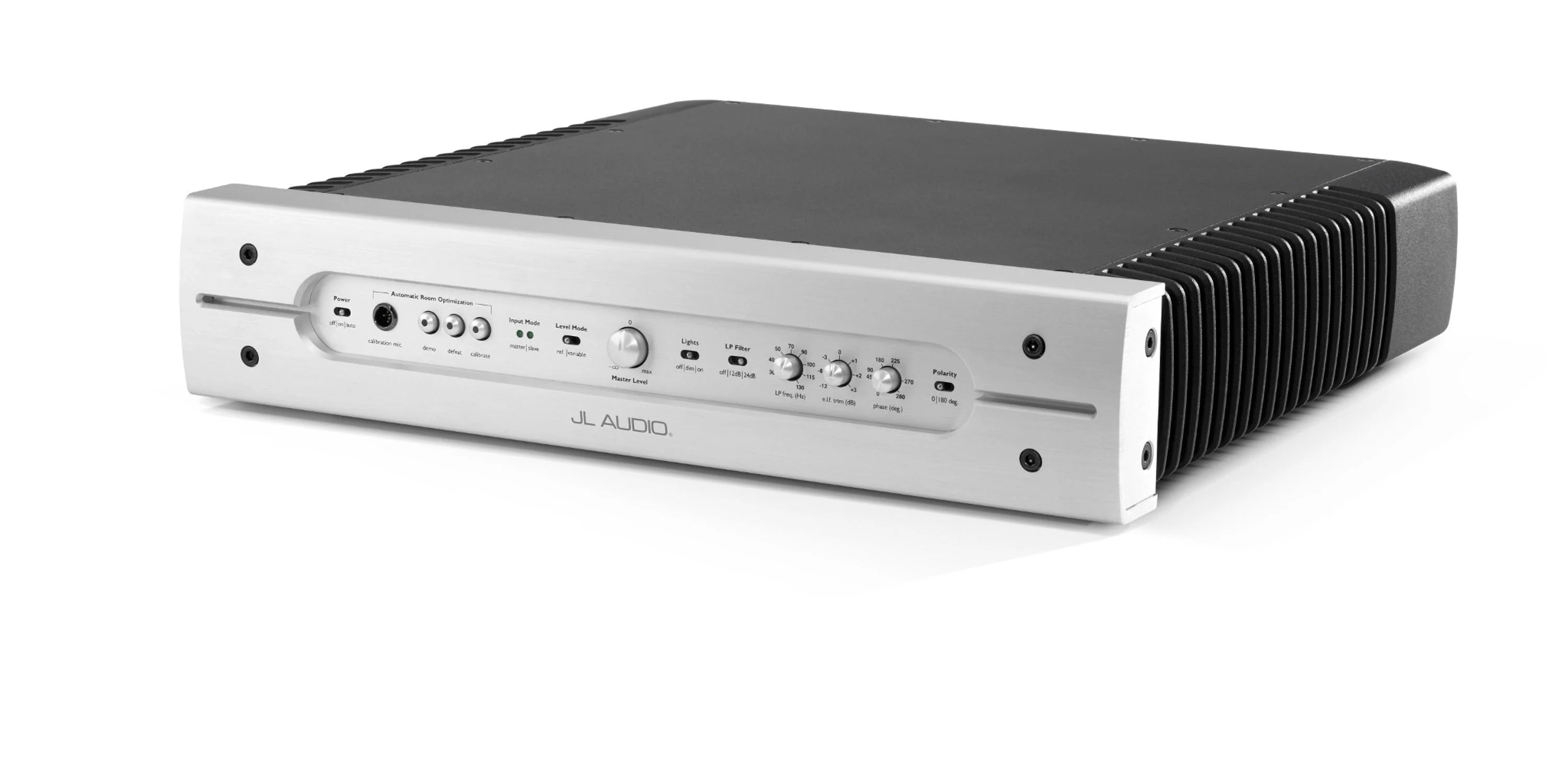

The IWSv2-SYS-213 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 2 kW of clean power, and armed with serious processing features, including our latest Digital Automatic Room Optimization system.
There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom®.
The IWSv2-SYS-213 is available to fit a variety of 2" x 4" and 2" x 6" wall studs. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood
Specifications
|
Enclosure Type |
Two Sealed Enclosures |
|
Driver(s) |
13.5-inch (nominal diameter) in each of two enclosures |
|
Frequency Response (anechoic) |
26 Hz - 101 Hz (+/- 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz |
|
Effective Piston Area |
96.51 sq. in. 0.1268 sq. m. |
|
Effective Displacement |
294.6 cu. in. (4.82 liters) |
|
Amplifier Power |
2000 watts RMS short-term |
|
2 x 4 Enclosure Dimensions (H) Height x (W) Width x (D) Depth Measurements do not include padding material. |
70 in. x 13.75 in. x 2.9 in. 1,778 mm x 349 mm x 74 mm |
|
2 x 6 Enclosure Dimensions H) Height x (W) Width x (D) Depth Measurements do not include padding material. |
55 in. x 13.75 in. x 4.70 in. 1,397 mm x 349 mm x 119 mm |
|
Cabinet Finish |
Black Texture-Coated |
|
Amplifier Dimensions (H) Height x (W) Width x (D) Depth Height Dimensions DO NOT include feet. |
3.5 in. x 17.4 in. x 17.9 in. 89 mm x 442 mm x 455 mm |
|
Amplifier Net Weight |
35 lbs. (15.9 kg) 43 lbs. (19.5 kg) |
|
Grille Dimensions (H) Height x (W) Width |
17.64 inches x 17.14 inches 448 mm x 435 mm |
|
Wall Opening Dimensions (H) Height x (W) Width |
16 inches x 16.5 inches 406 mm x 419 mm |
|
Grille Finish |
White (paintable) |
|

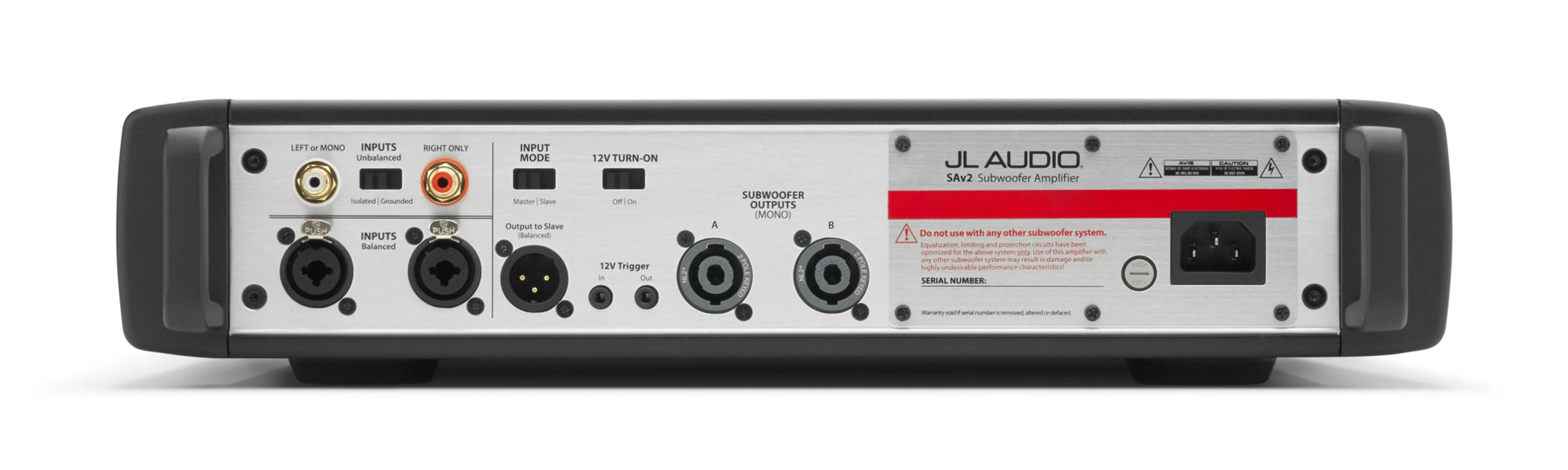

Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
|
Balanced Inputs |
Stereo or Mono (two female XLR jacks) |
|
Output To Slave |
Balanced (one male XLR jack) |
|
Speaker Outputs |
Neutrik speak-On® 2-Pole Connectors (uses Neutrik part: NL2FX, included) |
|
Input Modes |
Master or Slave |
|
Level Modes |
Reference (fixed gain) or Variable from full mute to +15 dB over reference gain |
|
Power Modes |
Off, On or Automatic (Signal-Sensing or 12V Trigger) |
|
Light Modes |
Off, On or Dim |
|
Low Pass Filter Mode |
Off, 12 dB per octave or 24 dB per octave |
|
Low Pass Filter Crossover Frequency |
Variable from 30 Hz – 130 Hz |
|
Polarity |
0 or 180 degrees |
|
Phase |
Variable from 0 – 280 degrees, referenced to 80 Hz |
|
E.L.F. Trim |
Variable from –12 dB to +3 dB at 23 Hz |
|
Digital Automatic Room Optimization (D. A.R.O.) |
Automatic, 18-band equalizer with included laboratory-grade calibration microphone, defeatable |
|
12V Trigger Output Capacity |
150 mA (1/8-inch/3.5mm mini jack) |
|
Built in USA, with global components |
Subwoofer Enclosure and Subwoofer Driver (Amplifier is manufactured in China) |
