Description

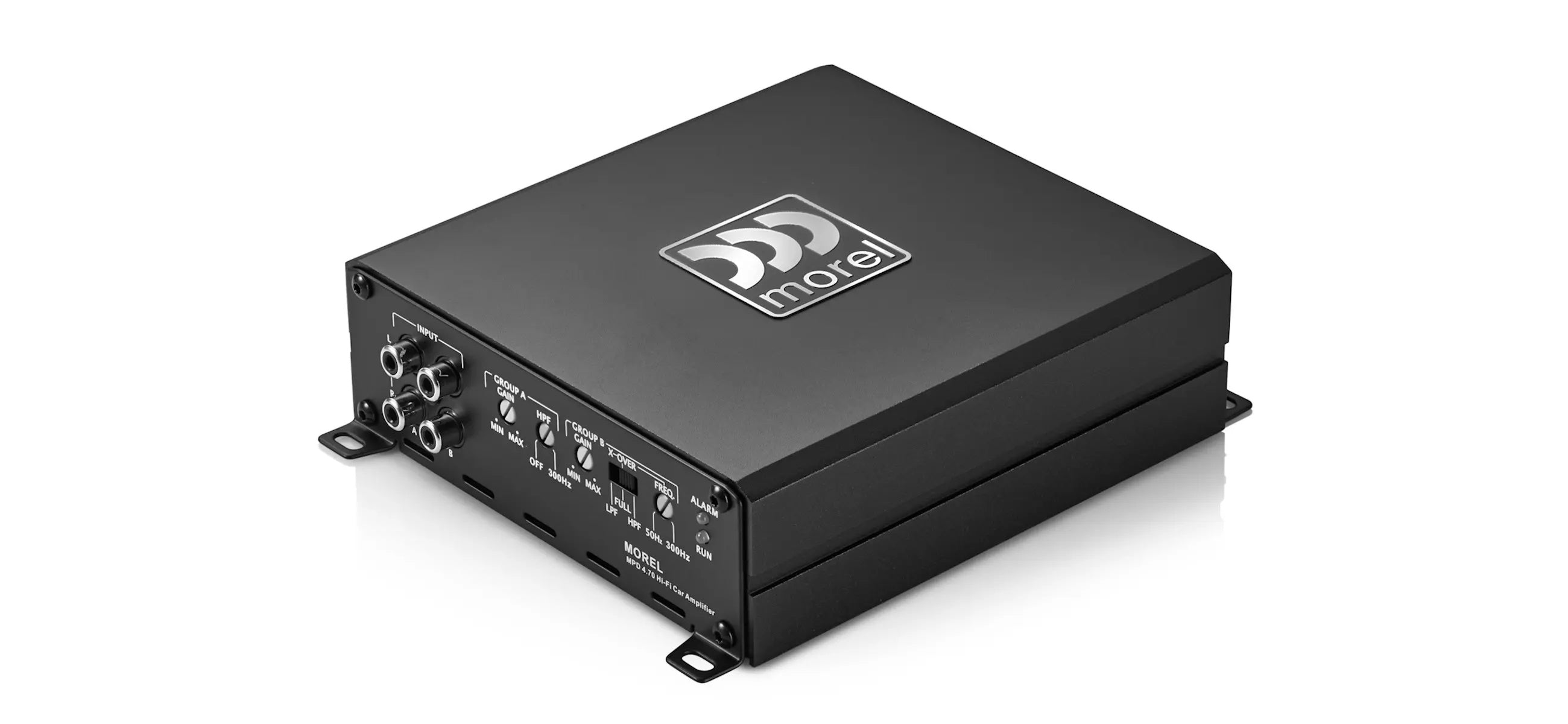

xMorel Compact MPD 4.70 4 Channel Amplifier
Experience exceptional in-car audio with the Morel MPD 4.70 Amplifier. This compact yet powerful amplifier delivers 70W x 4 at 4 ohms and 100W x 4 at 2 ohms, with a bridging option of 200W x 2 at 4 ohms. Enjoy impressive sonic clarity with a frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB.
Customize your sound with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and maintain crystal clear music with a Total Harmonic Distortion (THD) below 0.2%. The built-in protection circuit ensures long-term reliability, making the MPD4.70 the perfect choice for audiophiles seeking high-quality sound in a compact package.
Features
- Impressive Clarity: Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 93dB ensure superior audio quality.
- Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.
- Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.
- Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.
- MPS-HL high-low level adaptor - All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.
The Morel MPD series amplifiers are designed to deliver high-end audio performance in a compact package, making them the ideal choice for audiophiles and car audio enthusiasts. Upgrade your in-car audio, immersing yourself in rich, powerful, and precision-crafted music while enhancing your driving experience— all with the convenience of a chassis size that can fit almost anywhere.
Specifications
|
MPD AMPLIFIERS |
MPD 4.70 |
|
4Ω stereo |
70W x 4 |
|
2Ω stereo |
100W x 4 |
|
4Ω Mono/Bridged |
200W x2 |
|
Minimum Impedance |
2Ω |
|
THD+N |
<0.2% |
|
Frequency Response (+/-1dB) |
20Hz~30kHz |
|
S/N Ratio (Rated Power, A-weighted) |
>93dB |
|
Channel Separation |
>50dB |
|
Input Voltage Range |
0.35-3.5V |
|
PREAMP |
|
|

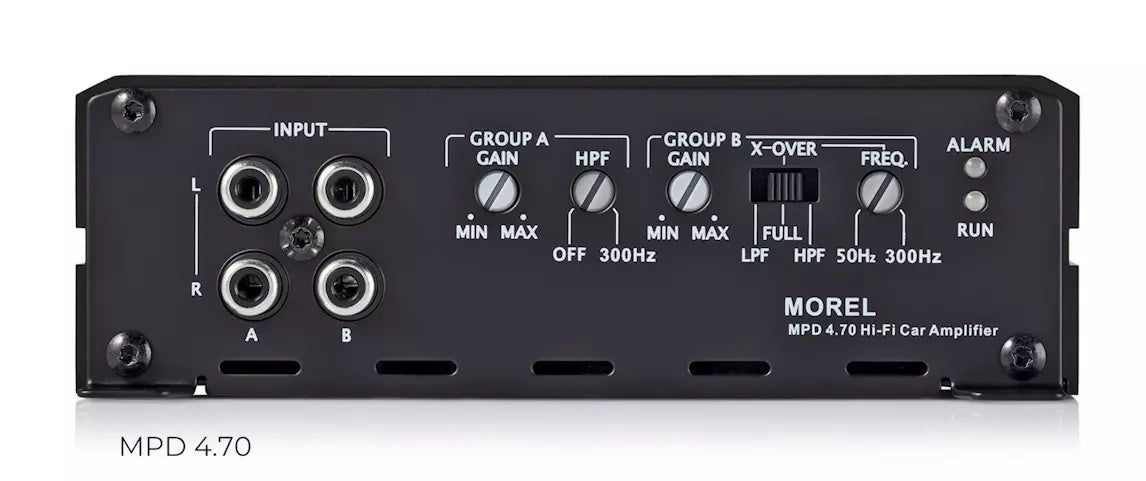

Filters |
HPF OFF-300Hz for Group ALPF/HPF 50Hz-300Hz for Group B |
|
Crossover slope |
12dB/Octave |
|
Fuse recommendation |
Inline fuse must be used within 16”(400mm) of battery |
|
|
50A |
|
DIMENSIONS (HxWxL) |
1.9" (48mm) x 5.8" (148mm) x 7.7" (195.5mm) |
For more information, please visit the manufacturer's website.
