xMorel Hybrid 602 6.5 Inch Component Speakers made in Israel
Morel's Hybrid Series component speakers are celebrated for their reliability and signature sound. Every bit of that excellence is due to Morel's passion for sound and their insistence that every hand-made Hybrid Series component be tested to meet their premium standards.
The Hybrid 602 component speaker system handles up to 140 watts RMS without a worry. Its 6-1/2" damped polymer woofer handles the lower frequencies, benefiting massively from its sturdy one-piece dustcup and diaphram structure. Morel's famous MT230 soft dome tweeter really helps define this speaker system with its warm highs, and the one-of-a-kind Acuflex™ compound that coats the tweeter enhances damping for a cleaner sound. And the innovation doesn't stop there — External Voice Coil (EVC™) technology maximizes voice coil size in these speakers for better heat dispersion and efficient performance.

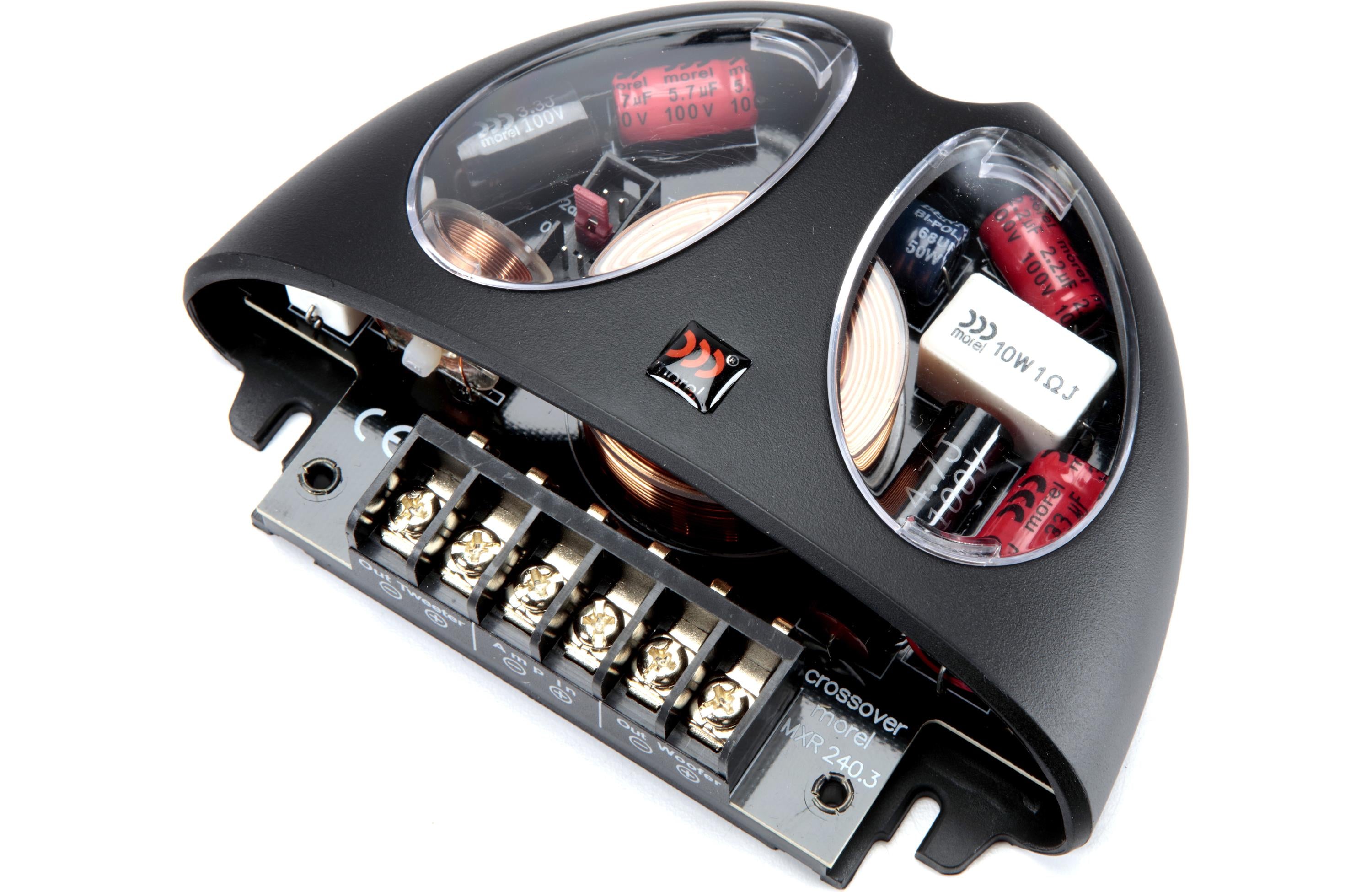

Morel includes external MXR crossovers to deliver an ideal blend of the highs and lows for an incredible stereo image. Three levels of tweeter control let you dial in the sound to your car's environment.
Specifications
|
Drive Unit |
Hybrid MW6 |
|
Nominal Impedence (Ohms) |
4 |
|
Power Handling Wrms |
140 |
|
Max. Trans.Pwr Handling Wrms |
600 |
|
Sensitivity (2.83V/1M) |
91db |
|
Frequency Response Hz |
35-3000 |
|
Resonant Freq. Fs Hz |
45 |
|
Voice Coil Diameter mm (inch) |
54 (2.1) |
|
Voice Coil Height mm (inch) |
11 (0.47) |
|
Voice Coil Type/Former |
Aluminium |
|
Voice Coil Wire |
Hexatech aluminium |
|
DC Resistance (Ohms) |
3 |
|
Voice Coil Induct. @1 kHz (MH) |
0.22 |
|
Magnet System |
Hybrid rear vented |
|
HE-Magnetic Gap Height mm (inch) |
4 (0.16) |
|
B-Flux Density (T.M.) |
0.83 |
|
BL Product/BXL |
4.2 |
|
Max Linear Ex./Xmax mm (inch) |
7±3.5 (0.28±0.14) |
|
Suspension Compliance Cms -mm/N |
1.1 |
|
Electrical Q Factor QES |
0.56 |
|
QTS |
0.44 |
|
QMS |
2.08 |
|
Mech. Resistance RMS – Ohm/meter |
1.5 |
|
Moving Mass MMS – gr/ounce |
11 |
|
Equiv. Can Air Load VAS – L (cu.ft) |
21 (0.74) |
|
Effective Piston Area SD sq.cm (sq.inch) |
119 (18.45) |
|
Cone Type |
One-piece formed |
|
Cone Material |
DPC |
|
Unit Diameter mm (inch) |
165 (6.50) |
|
Mounting Depth mm (inch) |
61 (2.40) |
|
Mounting Cutout mm (inch) |
141 (5.55) |
|
Net Weight Kg (lb) |
0.60 (1.32) |
|
Tweeters |
MT230 |
|
Nominal Impedance (Ohm) |
6 |
|
Power Handling (WRms) |
130 |
|
Max Transient Power Handling W (10ms) |
350 |
|
Sensitivity (2.83V/1M) dB |
93 |
|
Frequency Response Hz |
1600-25000 |
|
FS Hz |
1200 |
|
Voice Coil Diameter mm (inch) |
28 (1.125) |
|
Voice Coil Former |
Aluminium |
|
Voice Coil Wire |
Hexatech Aluminium |
|
DC Resistance Ohm |
5.2 |
|
Magnet System |
Double Magnet Neodymium |
|
Dome Type |
Acuflex Hand Coated Soft Dome |
|
Dome Material |
Silk |
|
Unit Diameter mm (inch) |
45.00 (1.8) |
|
Mounting Depth mm (inch) |
20.00 (0.80) |
|
Mounting Cutout mm (inch) |
50.00 (2.00) |
|
Net Weight Kg(lb) |
0.067 (0.134) |
|
Crossovers |
MXR240 |
|
Crossover Point |
W: 2200Hz / 18dB T: 2200Hz / 12dB |
|
Crossover Controls |
Tweeter +/- 2dB |
|
Wiring Options |
N/A |
Â
For more information, please visit the manufacturer's website.
